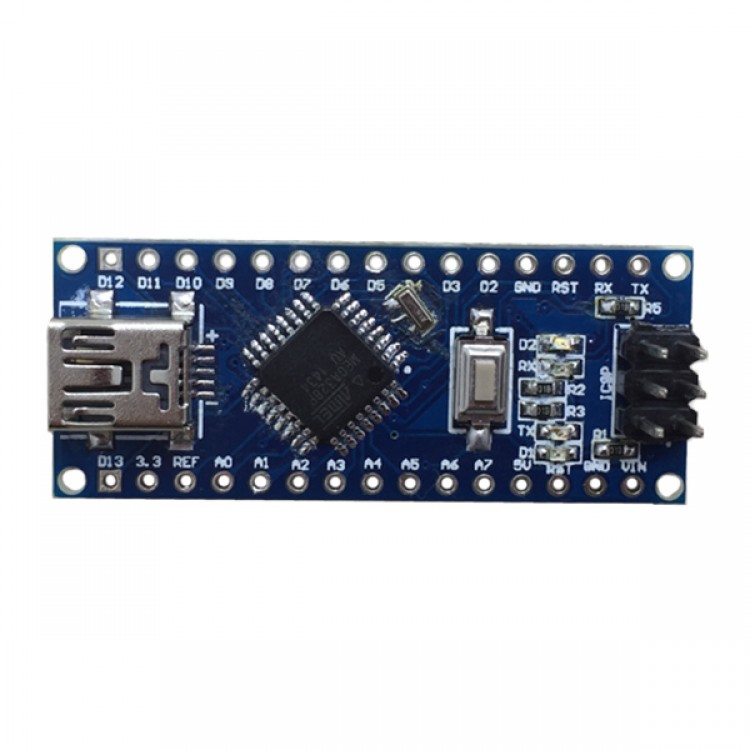

Nano V3.0 ArduInnoNano ATMEGA328P+FT232RL Module Chip for Arduino Support XP Win7 Win8

Nano V3.0 ArduInnoNano ATMEGA328P+FT232RL Module Chip for Arduino Support XP Win7 Win8

Description:
ArduIno Nano is the micro version of Arduino USB interface.The obvious difference is no source of power. The USB interface is Mini-B.This ArduIno Nano3.0 isvery small, and can be placed straightly in the board to use.The processor core ATmega328 (Nano3.0) with 14 ways of input/output port.(6 of them is for PWW output),8 ways is analog input, one
16MHz crystalshocker,a  mini-B USB port,a header and a reset button.

Parameter:
- Processor:ATmega328
- Operating voltage:5V
- Input voltage (recommended)VIN:DC 7V- 12V
- Input voltage (range) VIN: DC6-20V
- NumberIO port 14
- Direct current for IO 40mA
- Flash Memory 16 or 32 KB (2of them is for boot loader )
- SRAM 1 or KB 2 KB
- EEPROM0.5KB 1 KB (ATmega328
- FT232RL USB interface chip
- Operating efficiency: 16MHz
NOTIC: FT232RL is only available for the USB port.

Function:
14 way for digital Output: the operating voltage is 5V, the maximum current for each input and output is 40mA. Each route is equipped with 20-50K of the innerresistance (default).In addition, there are some special features of the lead wire can be set:
- Serial signal RX (No. 0), TX (1): provide voltage L for the receiving signal, and  connected to the corresponding pin of FT232RI
- The outer part fault (2 and 3: the starting interrupt pin can be set up to the rising edge, falling down or begin at the same time.
- The  width of Pulse is PWM (3, 5,6,9,10,11): PWM output 6 or 8 bit
- SPI (10 (SS), 11 (MOSI), 12 (MISO), 13 (SCK)): SPI communication interface
- LED (13):ArduIno is specifically designed for testing the LED of the reserved interface, when the output is high, LED is bright, whereas the output is low when LED goes out
- 6 path model is proposed to be AO to A5: each path has 10 bit resolution ratio There are 1024 different  figures, which can be considered as the 0 to the 5V.
- AREF: Input voltage as reference for analog  inpur signal
- Reset: When signal is weak, reset the single core chip.

Communication interface:
- Serial port: The UART embedded in ATmega328  can be built through the 0 (RX) 1 (TX) with external part.
- TWI (compossible 12C) interface
- SPI interface

Downloading programme:
- MCU on the ArduInN0 has been preset boot loader so that the programme can be downloded by App ArduInN0
- can be directly downloaded by ISCP header through Nano to the MCU

Package included:
1xNano V3.0 ArduInnoNano module
