Features:
- Can control 6pcs stepper motor at most.
- 5-channel IO program input interface,limit emergency stop function
- 3-channel IO program output interface,water cooling,fog cooling controlled peripherals
- 1-channel serial port handwheel MPG interface
- 4-axis PWM output control
- Support MACH3 software
- USB interface,support MACH3 software
- The max 200K stepper motor control pulse output,suitable for most machine system.
- Total analog parallel port,parallel interface output.
Introduction:

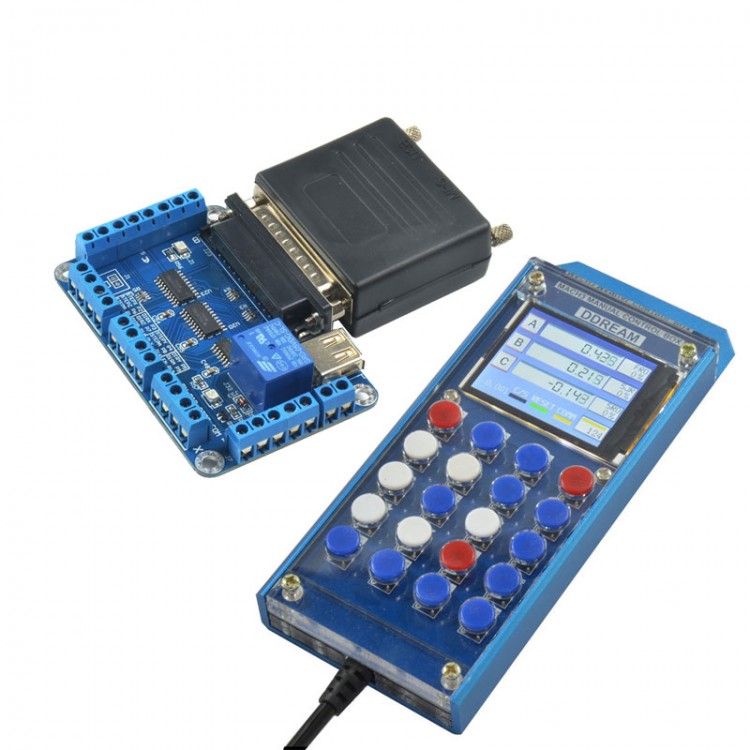

1.SKTFTV1 is a hand control box only for USB MACH3 CARD (e.g: DDSM3, DDUM6V5.0 and DDMDT card)
2.This card connect with USB MACH3 CARD by USART port
3.It's only need 4 wires,there are RXD/TXD/+5V/GND
4.Most operation of software MACH3 is set to this box,it's convenient to control the machine by this box
Specification:
- High performance,low price
- Most function of mach3 is set to this box
- Supply voltage: 5VDC
- XYZABC 6 axes' coordinate display on the screen
- FRO/SRO/SJR this 3 parameter display on the creen and can be modified
- The function of move XYZABC by hand is set to the keyboard
- Senior function (e.g: HOME,GOTO ZERO, ZERO is set to the keyboard)
- Also base function (e.g: START,PAUSE,STOP,RESET is set to the keyboard)
- The material of this box is aluminium,and it's oxidized to deep blue
- The panel of this box is acrylic, and it's transparent
Common Operation:
- Move X axis to left in continuous mod
- Move X axis to left in step mod
- Zero X axis current coordinate
- Zero all axes current coordinate
- Make X axis to goto zero
- Make all axes to goto zero
- Change the parameter FRO
- Change the parameter SRO
- Change the parameter SJR
Package List:
- 1 x Interface Board
- 1 x Hand Manual
- 1 x User manual
