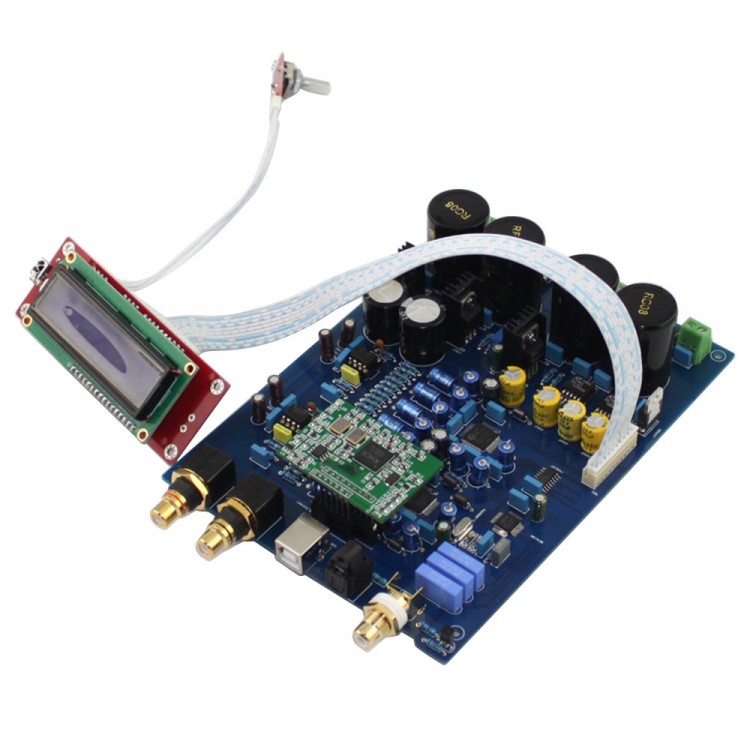

NE5534+AK4118 Optical Fiber Coaxial DAC Decoder Board for Aduio Amplifier DIY Support DOP DSD
Specification:
- Original AK4118+NE5534
- Main filter capacitor adopts 4×6800UF,Full wave bridge rectifier circuit
- The main circuit adopts 1% ring metal film resistors
- 1.6MM PCB, copper thickness is 2ounce
- LT1963EQ-3.3 optical, coaxial, USB iput signal switched by encoder switch
- PCM support up to 384K (no sampling rate if over 192K files)
- Gold-plated RCA mount
- Support DOP DSD
- Remote control supports input switch and volume adjustment function
- OSR Doubler wave filter
- THD+N: -115dBDR
- S/N: 127dB
- PCM supports up to 769K
- DSD supports up to 22.4MHz
Parameter:
- Two groups AV 9V( over 10W for each group)
- One group AC,dual 12V or dual 15V (over 15W)
- Main board size: 186*133mm
- CPU board size: 102*38mm
Note: Not included AK4497 chip or XMOS U8 sub card
Package List:
- 1 x DAC Decoder Board
