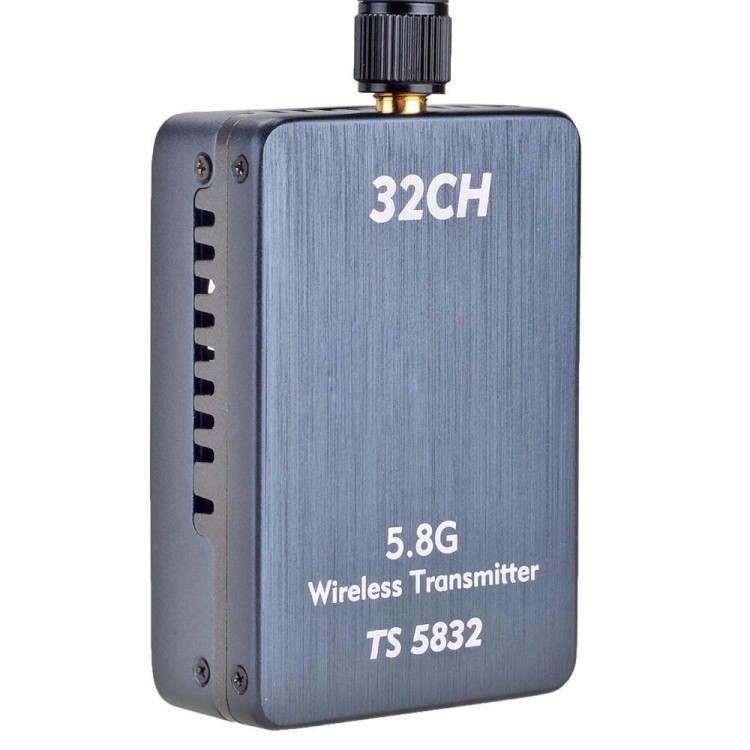

New Boscam Thunderbolt 2000mW 5.8GHz FPV AV Audio Video Transmitter TS5832

New Boscam Thunderbolt 2000mW 5.8GHz FPV AV Audio Video Transmitter TS5832

Description
- TS5832 2000mW 5.8GHz Receiver

Specification
- Power: 2000mW(33dB+-1dB) of certified output power
- Power on working: Plug and PlayInput voltage7-24VDC, 2-6 cells battery
- Cooling system: whole body heat sink and cooling fan
- Channel switching: channel button and channel display
- Antenna: RP-SMA female 50ohm connector
- Size & Weight: 62mm*42mm*20mm, 57g
- Frequencies: 32 Channels from 5.645 to 5.945GHz

Band     CH1     CH2     CH3     CH4     CH5     CH6     CH7     CH8
A     5865M     5845M     5825M     5805M     5785M     5765M     5745M     5725M
B     5733M     5752M     5771M     5790M     5809M     5828M     5847M     5866M
C     5705M     5685M     5665M     5645M     5885M     5905M     5925M     5945M
D     5740M     5760M     5780M     5800M     5820M     5840M     5860M     5880M

Package contents
- 1x Receiver
- 1x Antenna
- 1x Cable
- 1x User Manual
