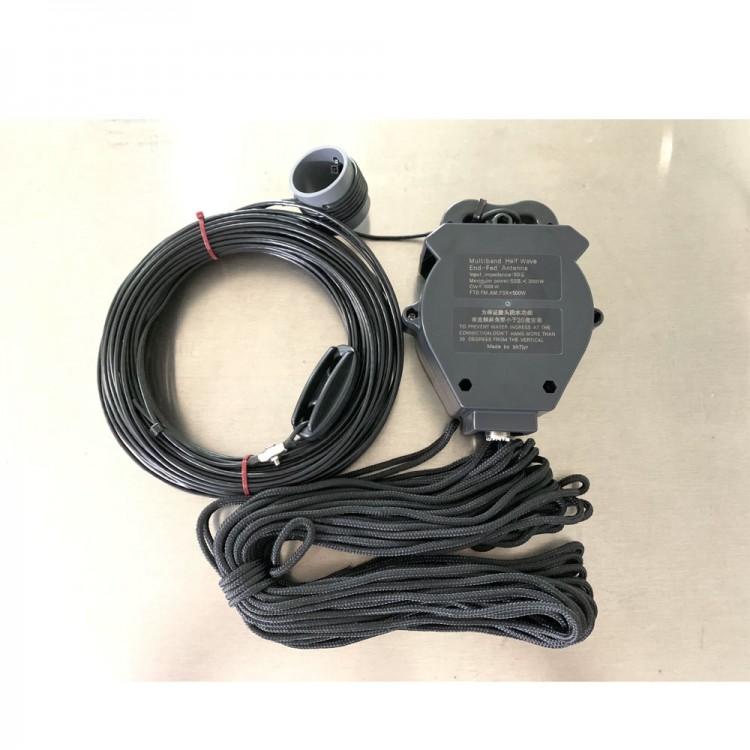

New JYR-8010 Eight Band Shortwave End Fed Antenna with Air Convection Cooling Shell for 10/12/15/17/20/24/30/40 Meter Wave
Description:
- Air convection cooling of the shell can effectively improve heat dissipation efficiency and make the antenna work stably for a longer time.
- This high-power end feed antenna is made of a world renowned factory magnetic ring with two superimposed outer diameters of (310) 79mm, which is larger than the (290) 73mm in the United States. It can withstand SSB: 1200W, FT8<500W, CW<800W for a long time, short-term peak power SSB<2000W (PEP), FT8<800W, CW<1000W. It is convenient, simple, and fast for urban and outdoor installation.
- The frequency bands used are: 10, 12, 15, 17, 20, 24, 30, 40 meters. The installation space must be at least 45 meters in order to be effectively installed, otherwise it will affect the parameters. Eight frequency bands must be used for sufficient space, with strong gain.
- The antenna with a single end feed is called an end fed antenna. The Balun has a radiator on one side and empty on the other side. This structure of the antenna is very convenient for installation. As long as both sides are pulled with ropes, the radiator and the Balun should be at least 3 meters away from all objects. It can be pulled horizontally, vertically, or diagonally, and the Balun can be installed from top to bottom, concealed, especially suitable for rapid installation in cities and outdoors.
Precaution:
- When installing the antenna, the vertical inclination angle of the Balun should not exceed 30 degrees to ensure waterproofing.
Specification:
- Configuration: 2.5 square 20m wire, 20m rope, 1:64 Balun
- Using waveband: 10, 12, 15, 17, 20, 24, 30, 40 meter wave
- Withstand power: SSB < 2000W (PEP), CW < 1000W, FT8 < 500W
- Gain: the 10/15/20 meter waves exceed the positive V and negative V of the induction type, while the 40 meter wave is equivalent to it.
Package Included:
- 1 x Set of End Fed Antenna
