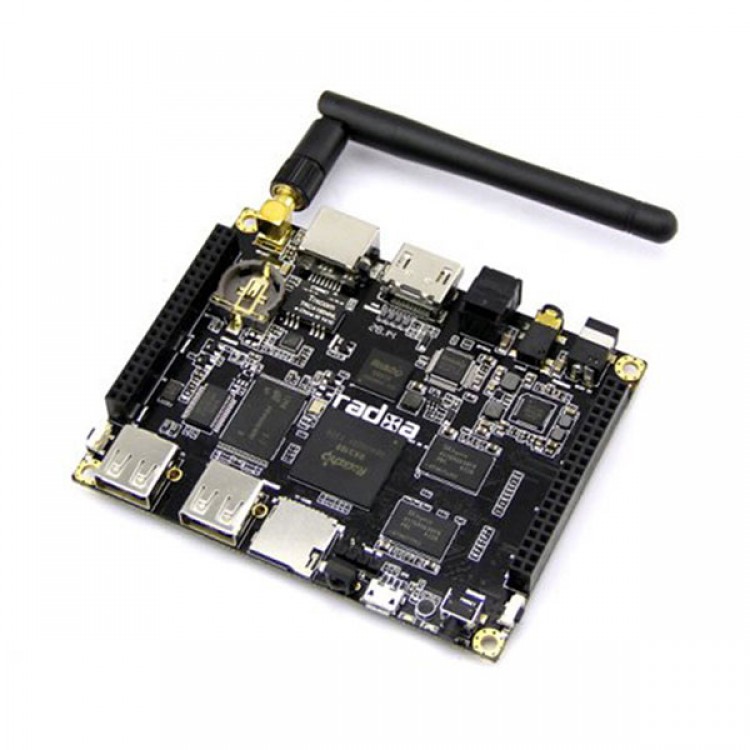

New Radxa Rock Pro Main Board ARM Cortex-A9 Processor Wifi Anternna 8GB Nand Flash On-board
Description:
- Radxa’s new product for single-board computers. The CPU is ARM Cortex-A9 processor running from 324Mhz to 1.6Ghz, and can balancing between performance and power saving. It integrate with full interfaces, all ways to connect like Wifi, Bluetooth, HDMI, USB, Spdif, MIC and TF Card.
- As a barebones single-board computer, the key feature for 80 pins 2.54mm 2.54mm extension headers, you can easily connect rock with breadboard or other sensor boards.
- Difference between rock and rock pro:
- Add LVDS interface (FPC connector at the bottom of the board)
- Add touch panel interface
- Add CSI interface for camera module
- Add speaker driver circuit on board
- Other remain the same as rock
Features:
- ARM Cortex-A9, Quad Core at RK3188 SoC
- Supported Bluetooth 4.0, WIFI, LAN
- USB Host and USB OTG
- HDMI, supported 108060Hz
- Supported Linux, Android, FreeBSD
- 8GB Nand Flash On-board
The Package includes:
- Radxa rock main board x 1
- Wifi anternna x 1
- DC to USB power cable x 1
- Full transparent case x 1
|
Model |
Rock Pro |
|
System |
|
|
CPU |
ARM Cortex-A9 quad core 1.6 Ghz |
|
Memory |
2GB DDR3 800Mhz |
|
Storage |
8GB Nand Flash, Micro-SD SDXC up to 128GB |
|
Display and Graphics |
|
|
GPU |
Mali400-mp4 533Mhz, OpenGL ES 2.0 |
|
Digital Video |
HDMI 1.4 up to 1080 60hz |
|
Analog Video |
AV output |
|
Network |
|
|
LAN |
10/100M Ethernet port |
|
WIFI |
150Mbps 802.11b/g/n with antenna |
|
Bluetooth |
Bluetooth 4.0 |
|
I/O |
|
|
Audio |
S/PDIF, headphone jack |
|
USB HOST |
2 USB 2.0 standard A types |
|
USB OTG |
USB OTG micro-USB connector |
|
Serial |
Serial Console for debugging |
|
IR |
Support self-defined IR remote |
|
Key |
1 power key. 1recovery key, 1 reset key |
|
Other |
|
|
Led |
3 programable leds |
|
RTC |
Support power off alarm |
|
Extend Header |
80 pins including GPIO, I2C, SPI, Line in, USB 2.0, PWM, ADC, LCD, etc |
Source code available
- It provide source code with all the history for you to customize. Visit radxa to view the source code.
Documents available
- Radxa provide the schematic, datasheet and more documents about the board. Visit radxa website download the documents.
- If you want to learn and share your knowledge, please contribute to the wiki. If you have any technical problem, please contact radxa.
