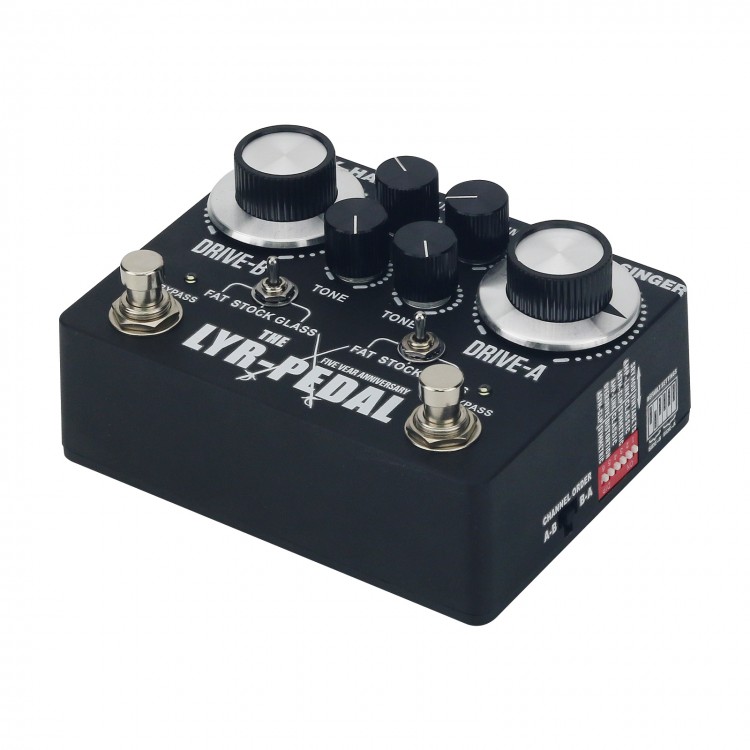

New Version KT High Sensitivity Dual Channel Overdrive Electric Guitar Effects Pedal Replacement for Duellist (LYR Logo)

New Version KT High Sensitivity Dual Channel Overdrive Electric Guitar Effects Pedal Replacement for Duellist (LYR Logo)

Description:
- New version of the black standard model (Main changes: move the original internal adjustment switch to the outside for convenient adjustment, add AB channel sequence control, and the AB channel can be independently connected to the line control with a TRS cable)
- The new version implements a set of exciting new features, including side switches and channel sequence selector switches for adjusting detailed tone, and independent channel TRS input and output.
- Supports 9-18v DC, you can run it at 12 or 18v for greater dynamics.

For DUELLIST is divided into two channels AB:
- The A channel is a natural channel with highly sensitive dynamics, bringing the warm, natural overdriven tone of fender tweed and Dumble speakers.
- The B channel brings a roaring tone similar to the Marshall distortion channel of the 1990s, but the tone is equally refined and still retains the original plucking dynamics well.
 - Each channel is equipped with a Fat, Stock, and Glass 3-way selection lever, which can quickly switch the timbre characteristics of the channel.
 - Just flip the switch on the side to change the channel sequence A to B or B to A. Side-mounted dip switches allow easy access to powerful tone options. New options include an AMP-LIKE preamp emulation and SRV legendary tone binding.
 - Using this effects pedal, you can also split channels A and B into two separate effects. You can switch between (DUAL merger) and (SPLIT separation) modes inside the body. In the "separate" mode, use TRS (three-core cable) to connect to the interface on each side, and enter the wire control at the other end to realize working as two separate effects units, which allows you to place the two effects pedal units in "different places" in the effects chain. Likewise, it is also possible to place other pedals between the two units. (This function requires the support of line control equipment and uses TRS three-core cable)

Features:
- Independent dual-channel overdrive/distortion
- True Bypass (No Tone Loss)
- Each channel provides independent three tone settings: Fat, Stock and Glass.
- The side of the effector provides rich fine-tuning, which can accurately define the tone of the AB two channels.
- A channel can choose classic TS overdrive or SRV exclusive overdrive tone.
- The B channel can be switched between overdrive and distortion modes.
- Both AB channels can be set to AMP-LIKE mode - providing tube preamp sounds.
- AB channel can support TRS three-core cable for independent input and output (access to line control equipment).
- "Merge" or "Split" mode can be set internally. In split mode, the two channels can be used as independent effectors using TRS cables.
- Both AB channels can be connected to TRS cables for independent work.

Package Included:
- 1 x Effects Pedal
