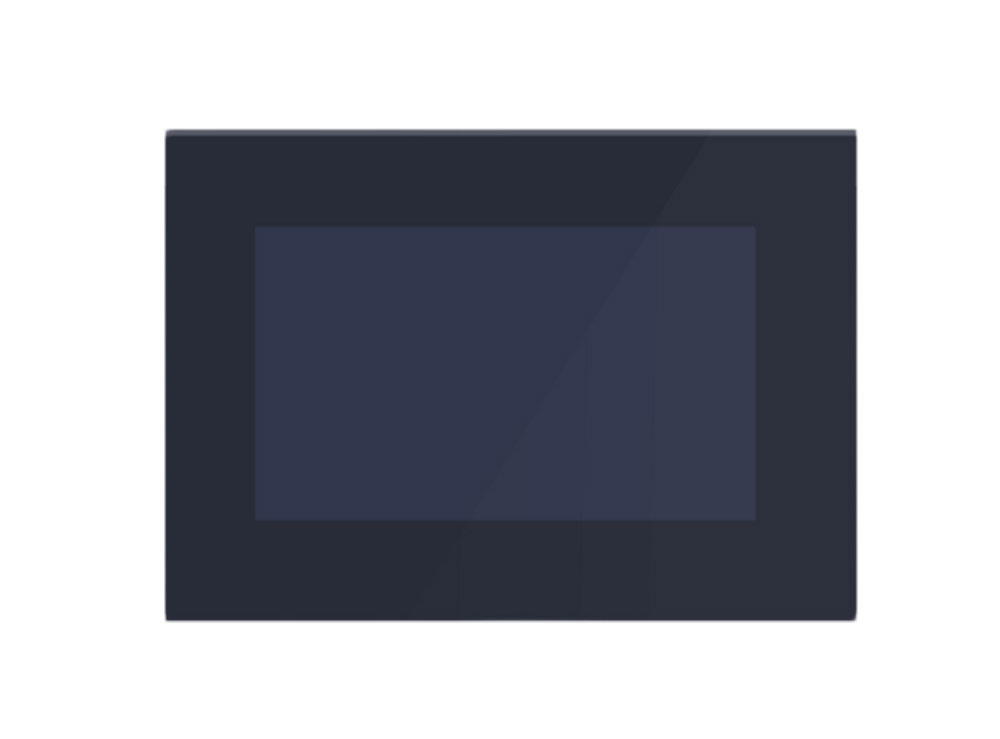

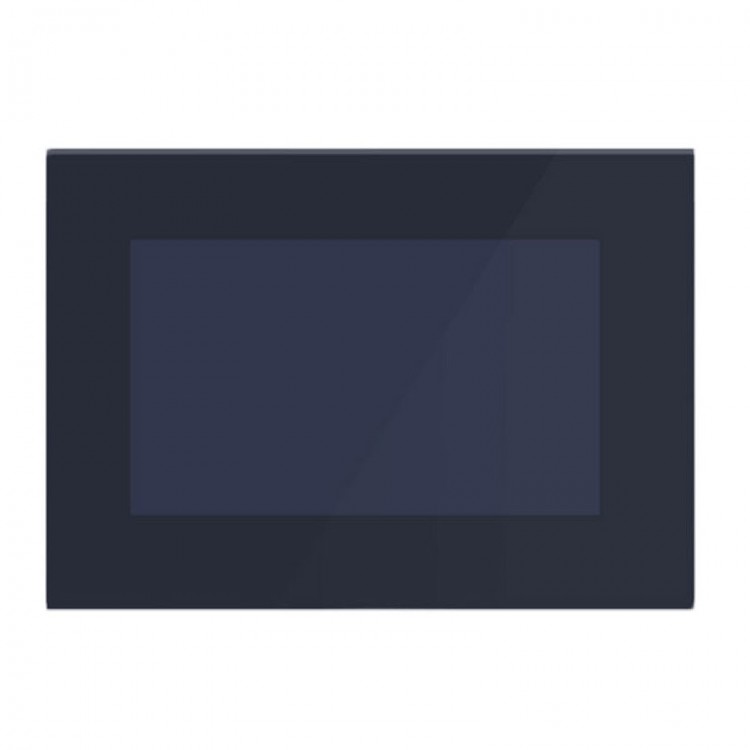

Nextion 5.0" Resistive Touch Screen HMI Display Human Machine Interface with Shell NX8048P050-011R-Y

Availability: In stock, usually dispatched in 1 business day

  • Price:$82.85
  • Price in reward points: 829 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $81.19 $79.54 $77.05 $73.74 Contact US
Quantity:

Nextion 5.0" Resistive Touch Screen HMI Display Human Machine Interface with Shell NX8048P050-011R-Y

Description:

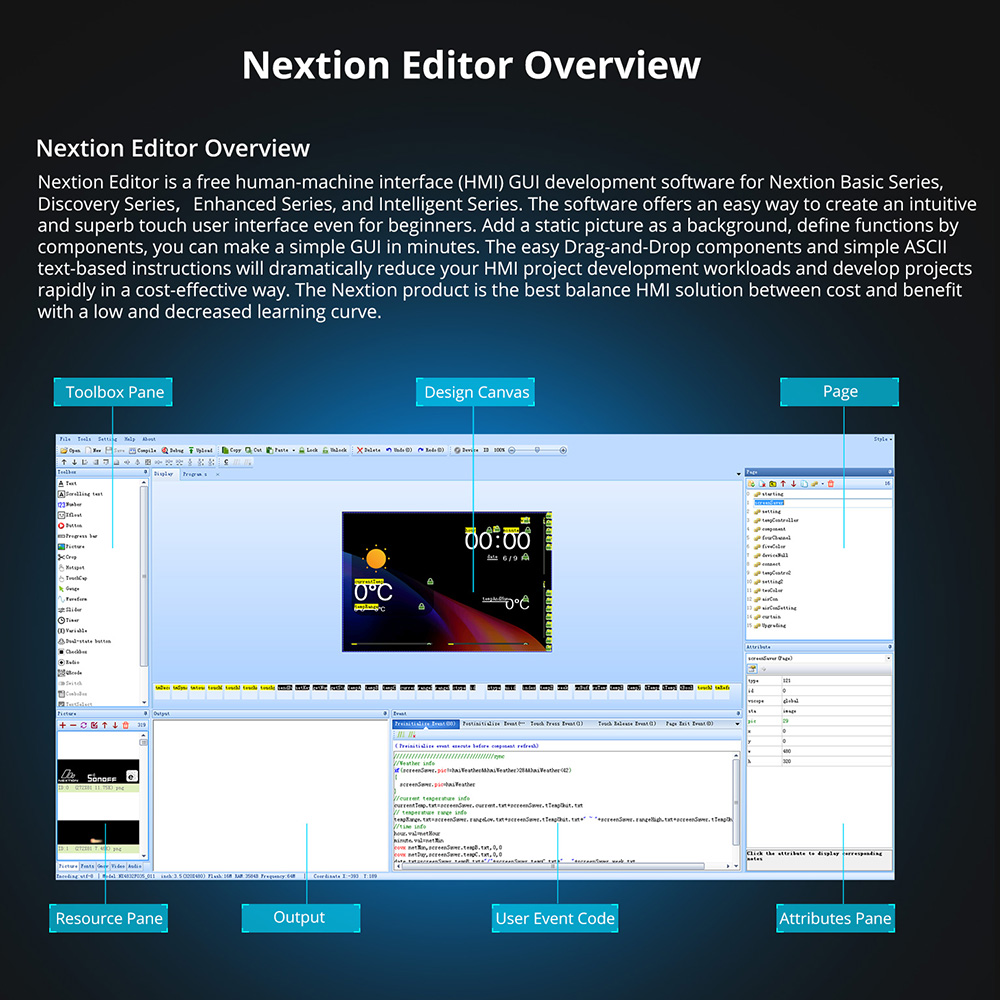

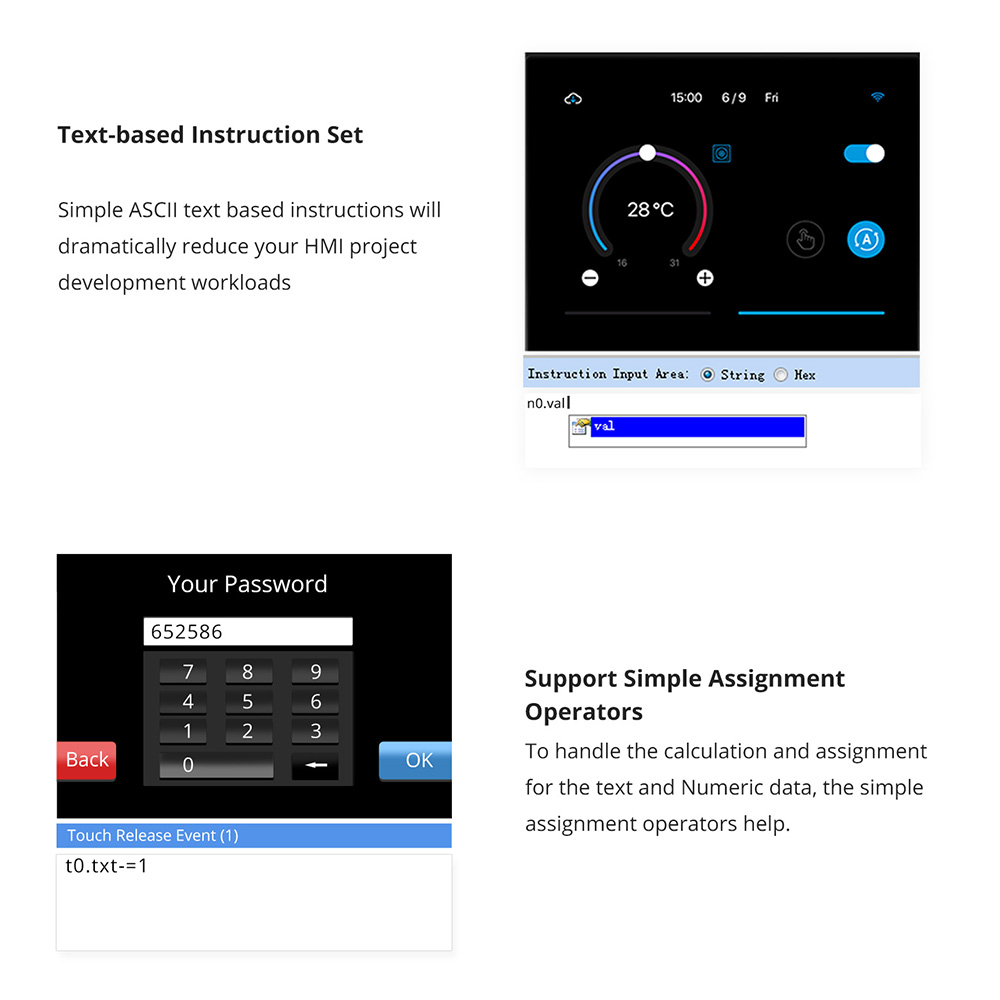

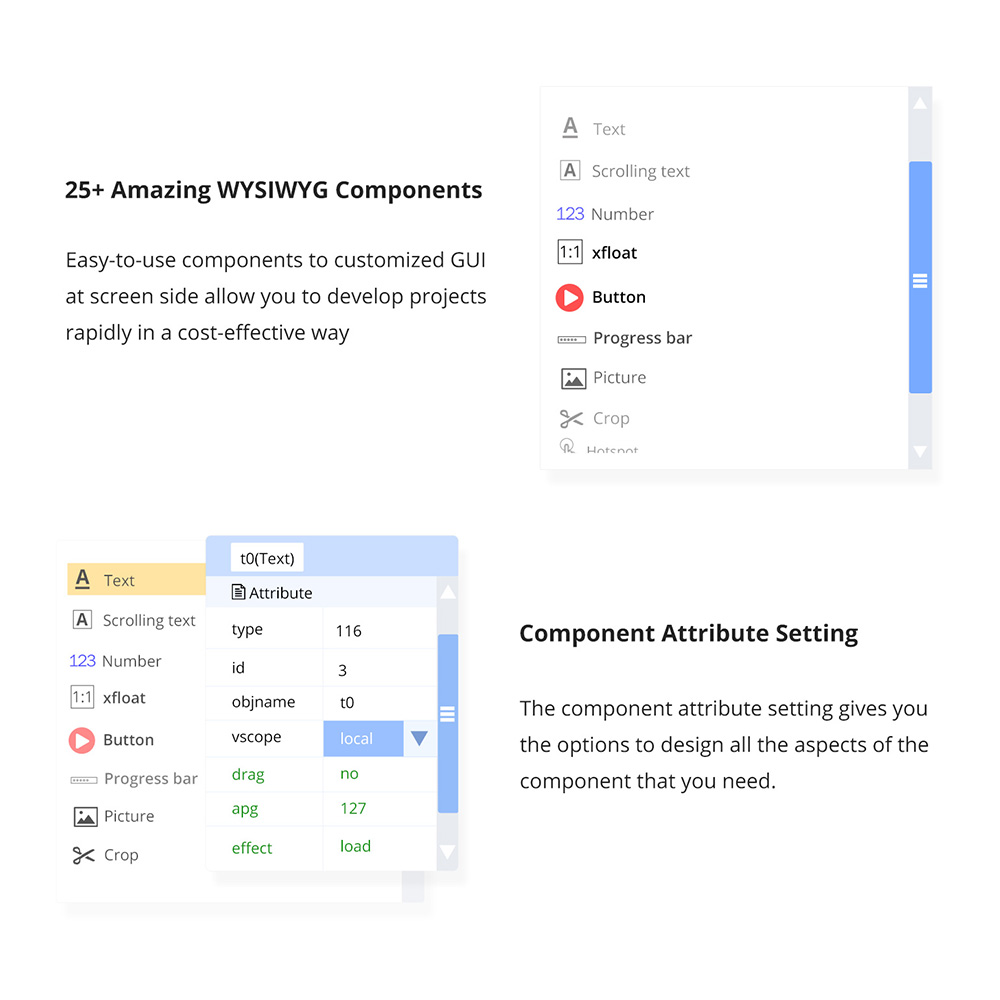

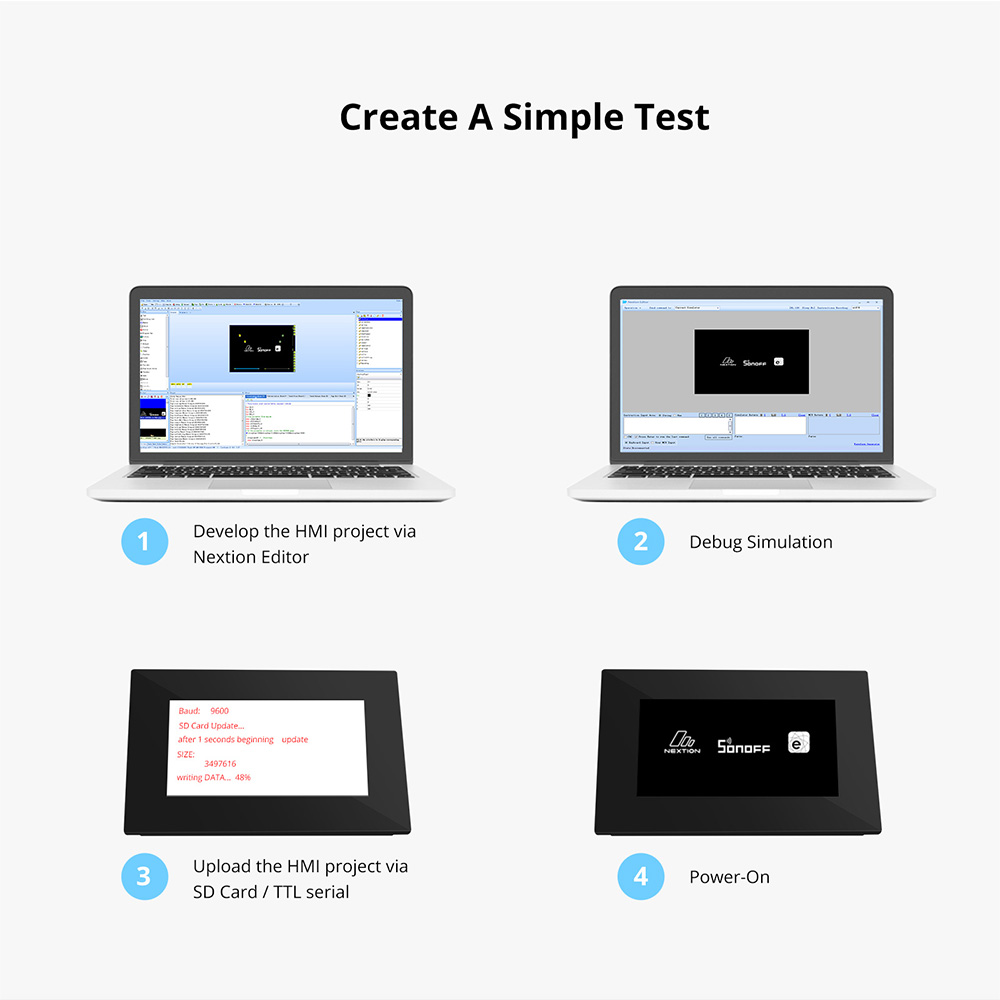

Nextion Editor is a free human-machine interface (HMI) GUI development software for Nextion Basic Series, Enhanced Series, and Intelligent Series. The software offers an easy way to create an intuitive and superb touch user interface even for beginners. Add a static picture as a background, define functions by components, you can make a simple GUI in minutes. The easy Drag-and-Drop components and simple ASCII text-based instructions will dramatically reduce your HMI project development workloads and develop projects rapidly in a cost-effective way. The Nextion product is the best balance HMI solution between cost and benefit with a low and decreased learning curve.

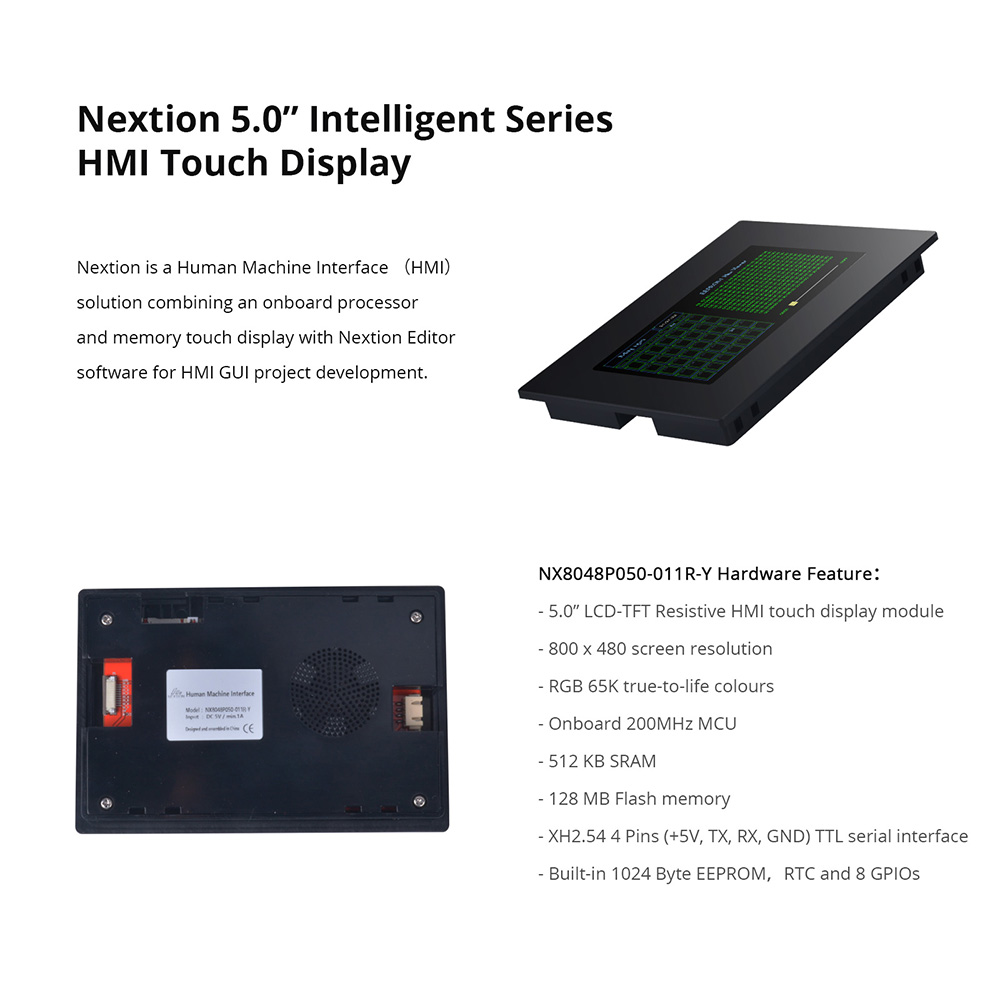

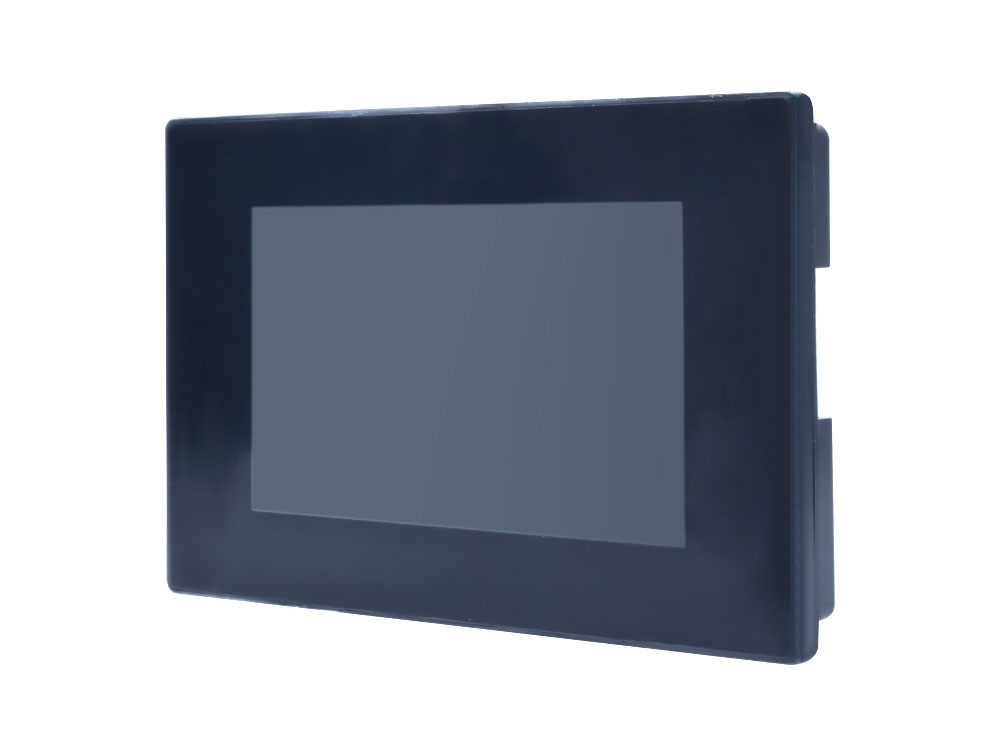

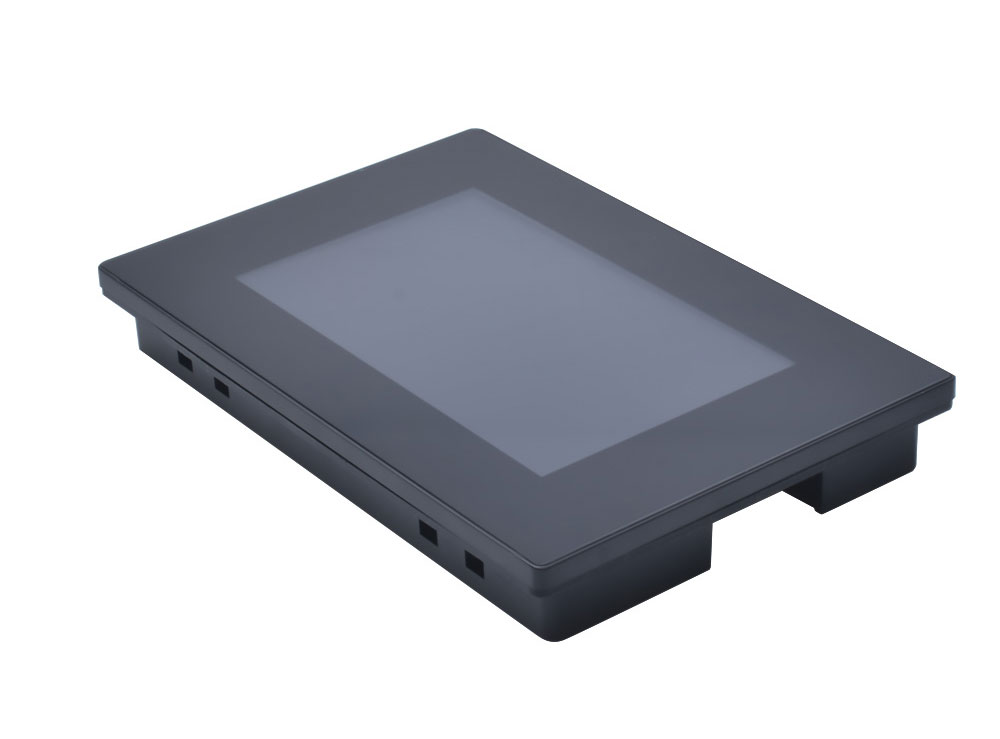

NX8048P050-011R-Y is a Nextion Intelligent series 5.0'' resistive HMI touchscreen with enclosure.

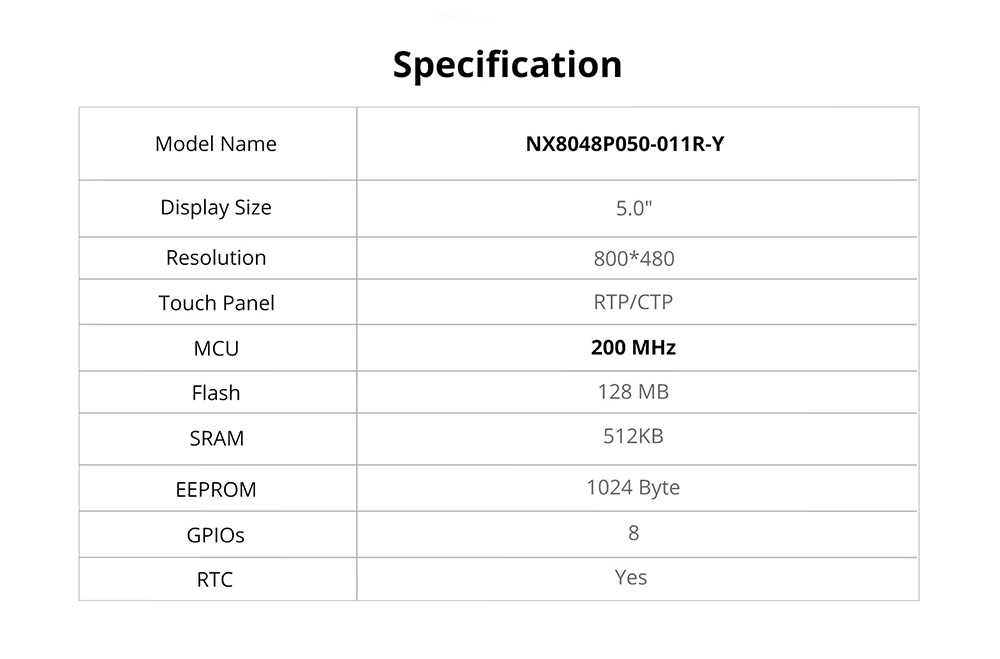

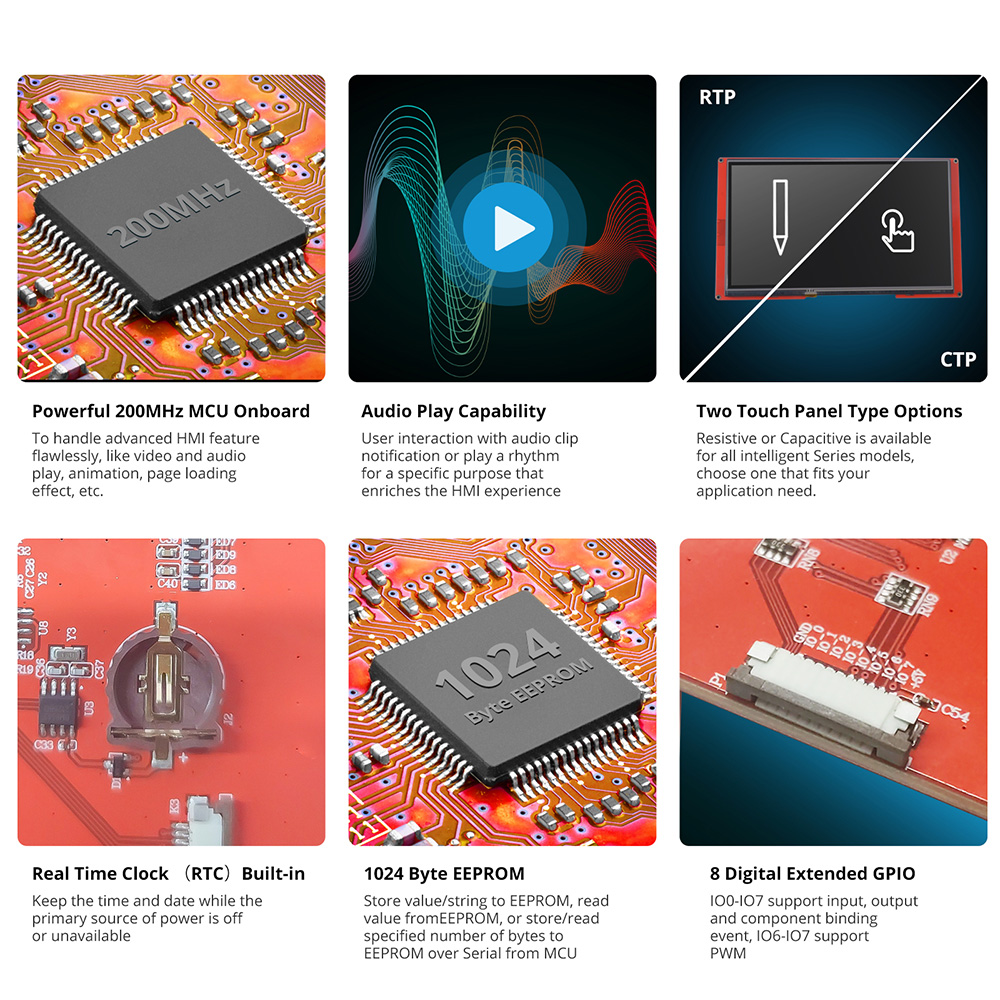

Hardware Features:
- 5.0" LCD-TFT HMI display module
- 800 x 480 screen resolution
- RGB 65K true-to-life colors
- Resistive touch panel
- 300 nit Brightness
- Onboard 200MHz MCU
- 512 KB of SRAM
- 128 MB of Flash memory
- 1024 Byte EEPROM

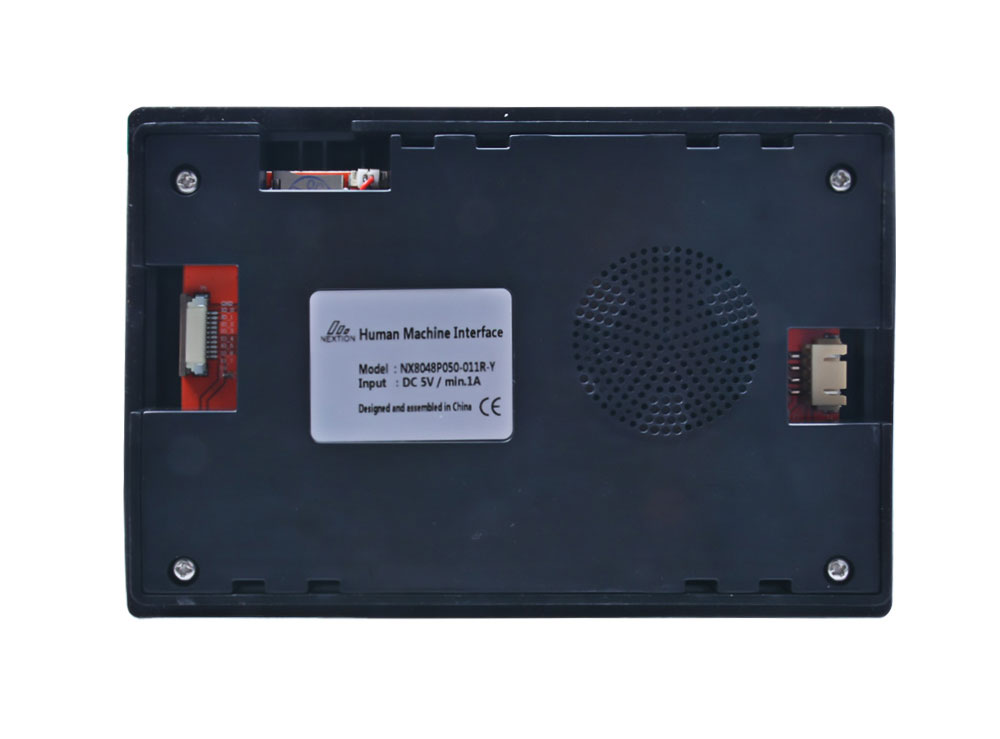

- XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
- 1.25T-2-2A Audio port for external speaker connection
- 8 Digital extended GPIO (IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)
- Built-in RTC support

Package Included:
- 1 x HMI Display
- 4 x Mounting Buckles & Screws
- 1 x Power Supply Test Board
- 1 x XH2.54 4P Wire
