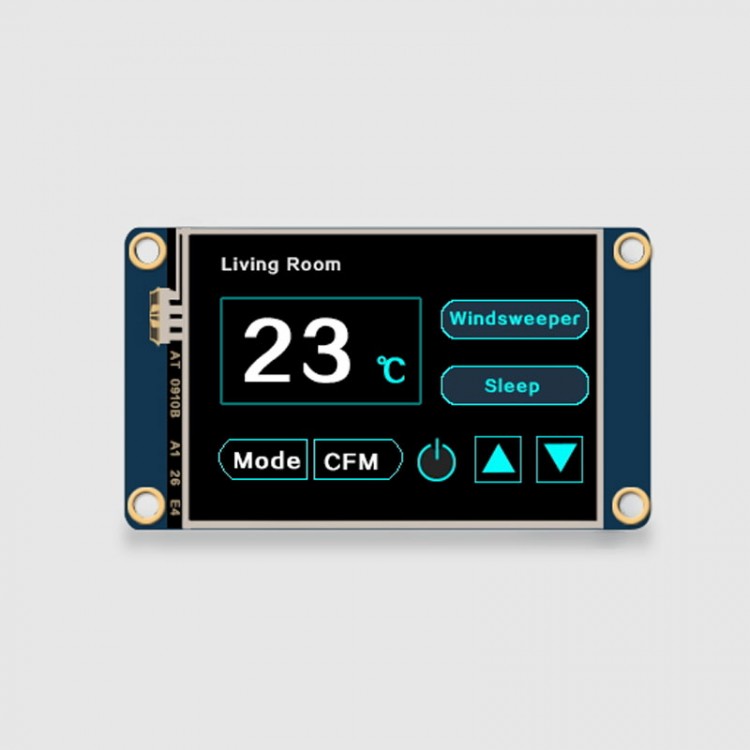

Nextion NX3224T024 2.4-Inch Resistive Touch Screen Display Touch Panel HMI Display Basic Version
Description:
NX3224T024 can be serially controlled/read via UART.
Features:
- Suitable for Raspberry Pi A+, B+, Pi 2, Pi 3, Arduino
- RGB 65K true to life colours resistive TFT touchscreen
- 4M flash memory for user application code and data
- Interface: XH2.54 4-pin TTL serial interface
- Input voltage: 4.7-7V (5V typical)
- Input current: 90mA (max. brightness), 15mA (sleep mode). Recommended power: 5V 500mA
- Screen size: 2.4-inch
- Screen resolution: 320x240 pixels
- Screen brightness: 180cd/m²(0~180nit, the interval of adjustment is 1%)
- On board micro-SD card slot for program upgradation, FAT32. Suitable for up to 32 GB SD card
- Micro USB power supply plug

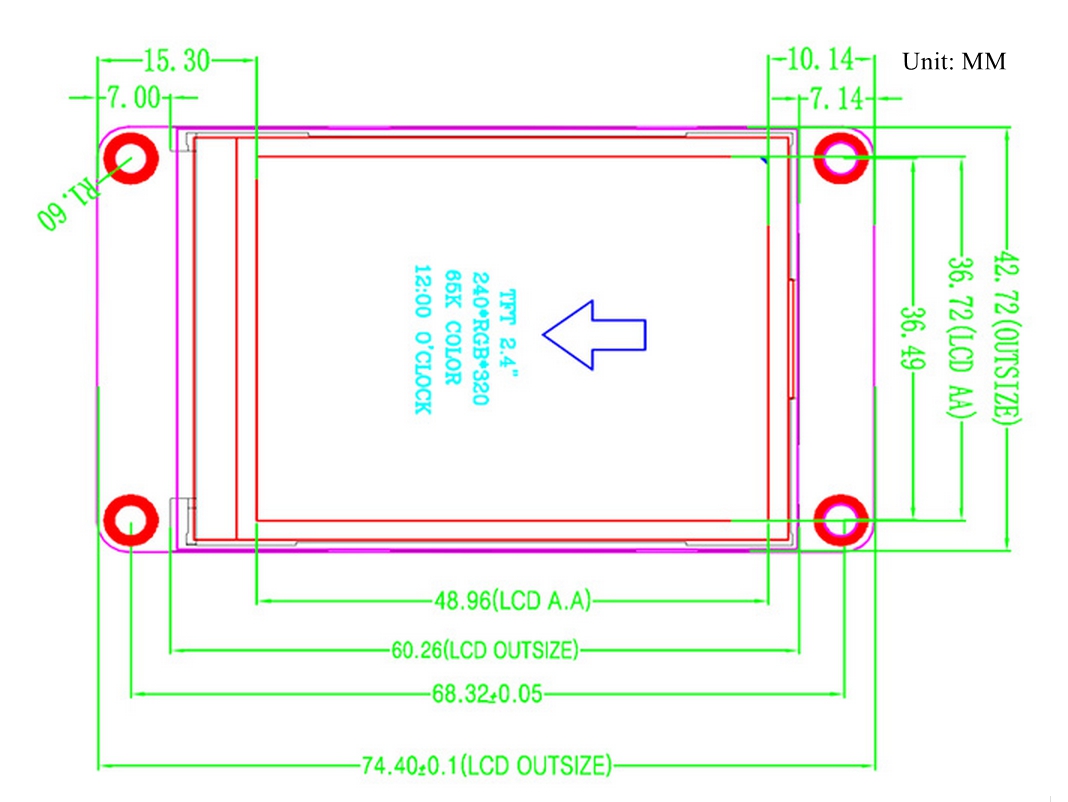

- Visual Area: 36.72mm (L) x 48.96mm (W)
- Certificates: CE/EMC, RoHS
Specifications:
- Model Name: NX3224T024
- Size: 2.4"
- Resolution: 320*240 pixels
- RAM: 3584 Byte
- CPU: for ARM 7 48MHz
- Flash: 4MB
Package Included:
- 1 x Power Supply Test Board
- 1 x HMI Display
- 1 x XH2.54 4P Wire
