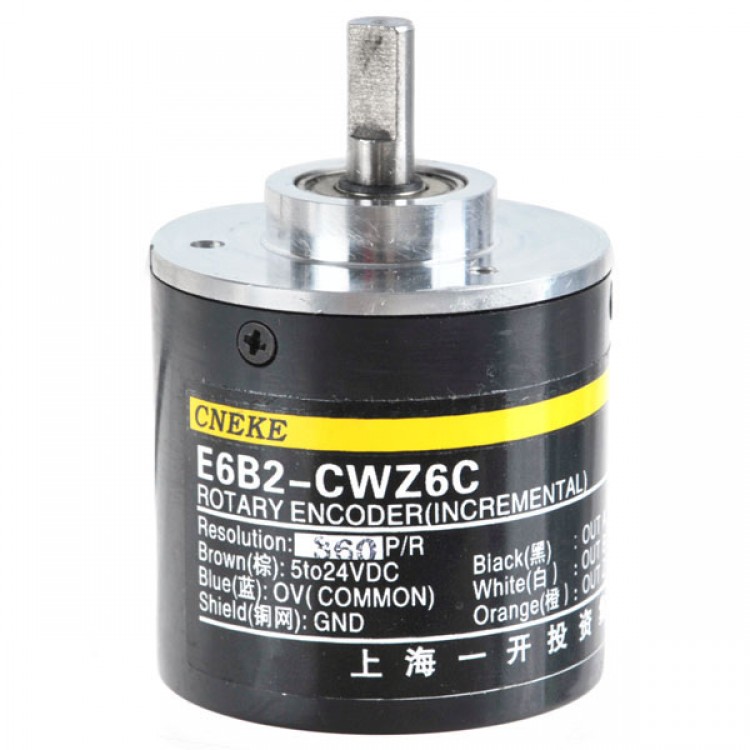

NIB Omron Rotary Encoder E6B2-CWZ6C 5-24VDC 360P/R
Description:
- Easy-to-adjust zero index (phase Z) with origin indicating function
- High resolution models (600 pulses per revolution) substantially improves measuring accuracy
- Rugged construction: 6 mm (0.24 inch) diameter shaft with radial load ratings of 3 kgf (21.7 ft lbs) and axial load rating of 2 kgf (14.5ft lbs)
- Wide variety of supply voltages and output forms
- Protected against short-circuit and reversed connections for highly reliable operation
- Available with Line Driver output
|
Model |
Suppply Voltage |
Output Configuration |
Resolution(p/r) |
|
E6B2CWZ6C |
DC5V-24V |
Open collector NPN output |
102030405060100200300360400500600 |
|
1000 |
|||
|
1200150018002000 |
|||
|
E6B2CWZ5B |
DC12V-24V |
Open collector NPN output |
100200360500600 |
|
1000 |
|||
|
2000 |
|||
|
E6B2CWZ3E |
DC5V-12V |
Voltage output |
102030405060100200300360400500600 |
|
1000 |
|||
|
1200150018002000 |
|||
|
E6B2CWZ1X |
DC5V |
Push pull output |
102030405060100200300360400500600 |
|
1000 |
|||
|
1200150018002000 |
