| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $140.55 | $137.68 | $133.38 | $127.64 | Contact US |
OC3-ADJ 75ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 75ohms 3.3Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75
OC3-ADJ 50ohms 5.0Vpp 3-Channel Adjustable Frequency Standard OCXO 10K-150M High Quality RF Accessory
$134.75

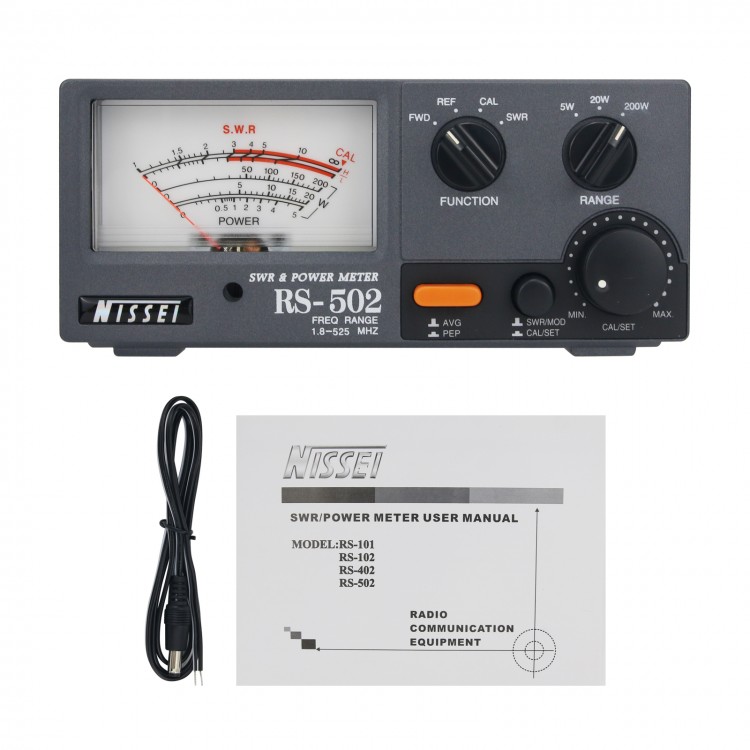

NISSEI RS-502 SWR & Power Meter SWR Watt Meter 1.8-525MHz HF VHF UHF For Radio Communication
Description:
This SWR & power meter is a highly accurate RF power meter tester.
Features:
1. RS-502 SWR and power meter can be read directly without any calibration
2. The maximum measurable power range of RS-502 is up to 200W
3. The low insertion loss (0.3dB or lower) structure allows it to be permanently connected
Specifications:
- Frequency Range: 1.8-525MHz
- Power Range: 1-200W
- Power Scale: 5W/20W/200W
- Maximum Input Power: 200W
- 5W Accuracy Range: (AVG) +/- 10%, (REP) +/- 15%
- 20W-3KW Accuracy Range: (AVG) +/- 5%, (REP) +/- 10%
- Minimum Power for SWR: 3W
- Connector: SO-239 M type
- Net Weight: 950g/2.1LB
- Insertion Loss: Less than 0.1db
- Testing Function: FWD/REF POWER, REP, SWR
- Input Impedance: 50Ω
- Dimensions: 190 x 85 x 135mm/7.5 x 3.3 x 5.3"
- Accessories: Operation Manual, 13.8 DC Wire
Package Included:
- 1 x Set of SWR Power Meter
