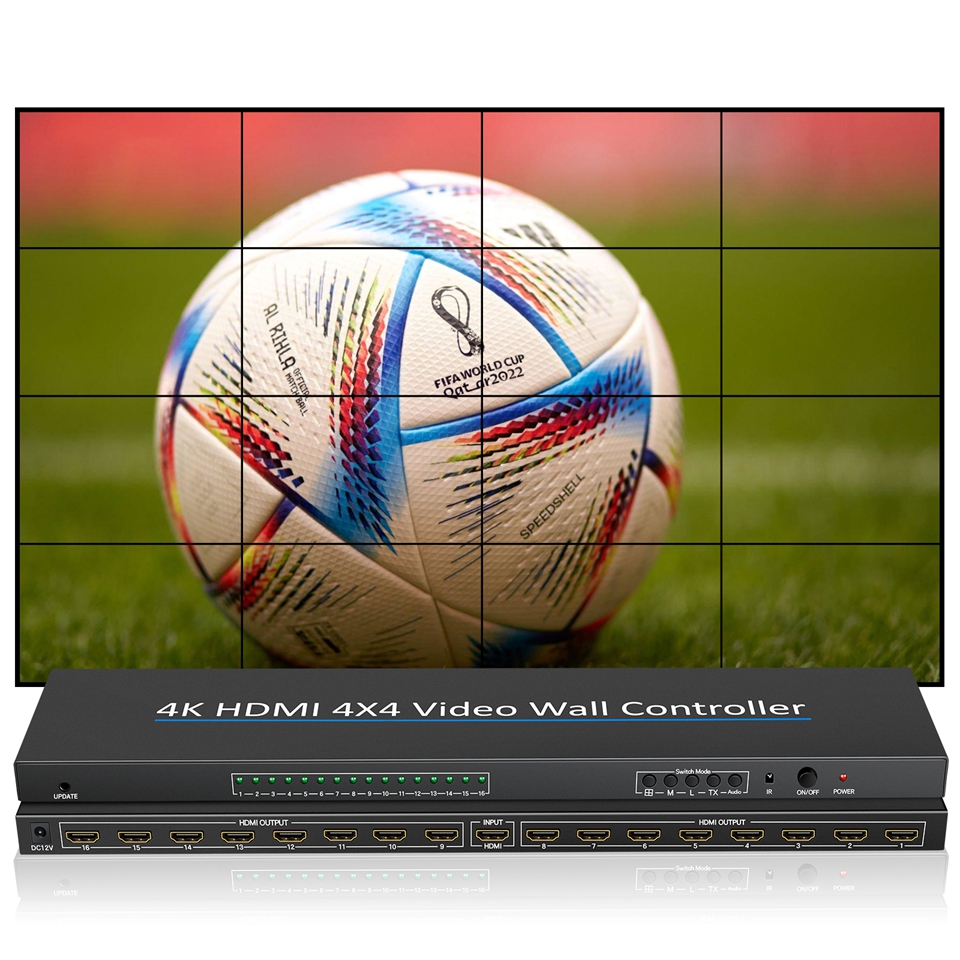

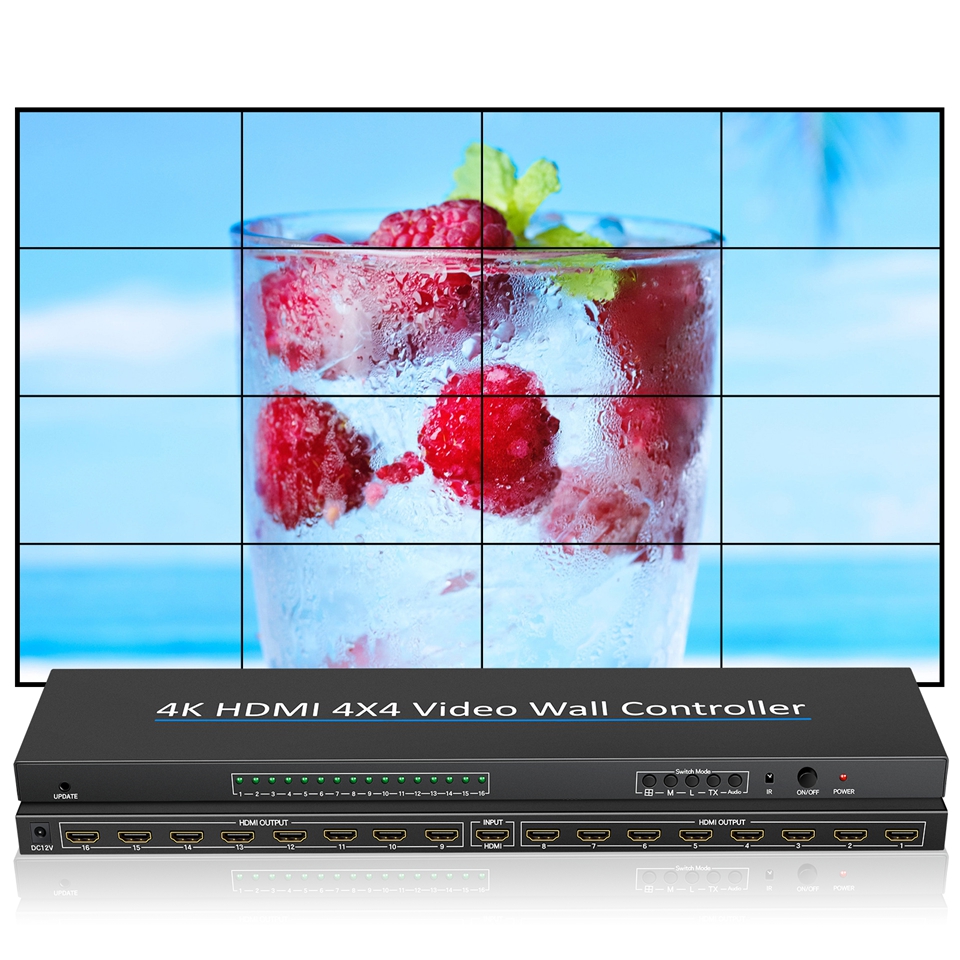

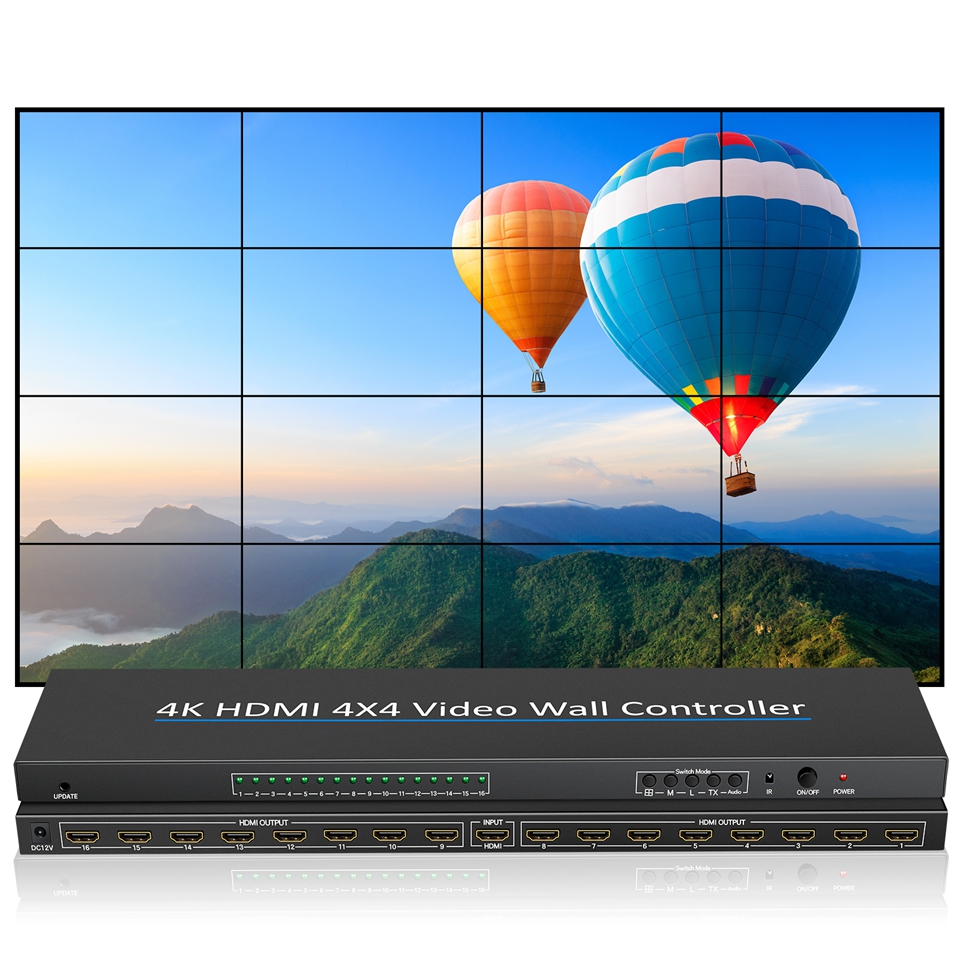

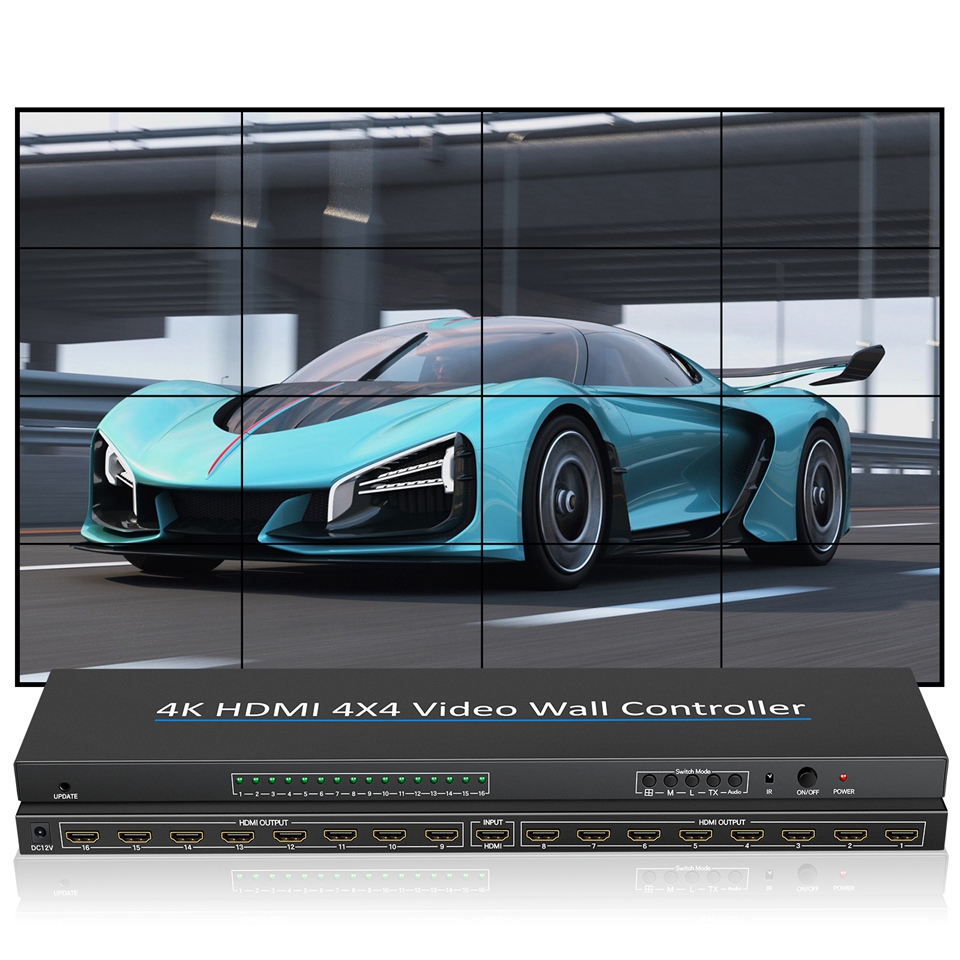

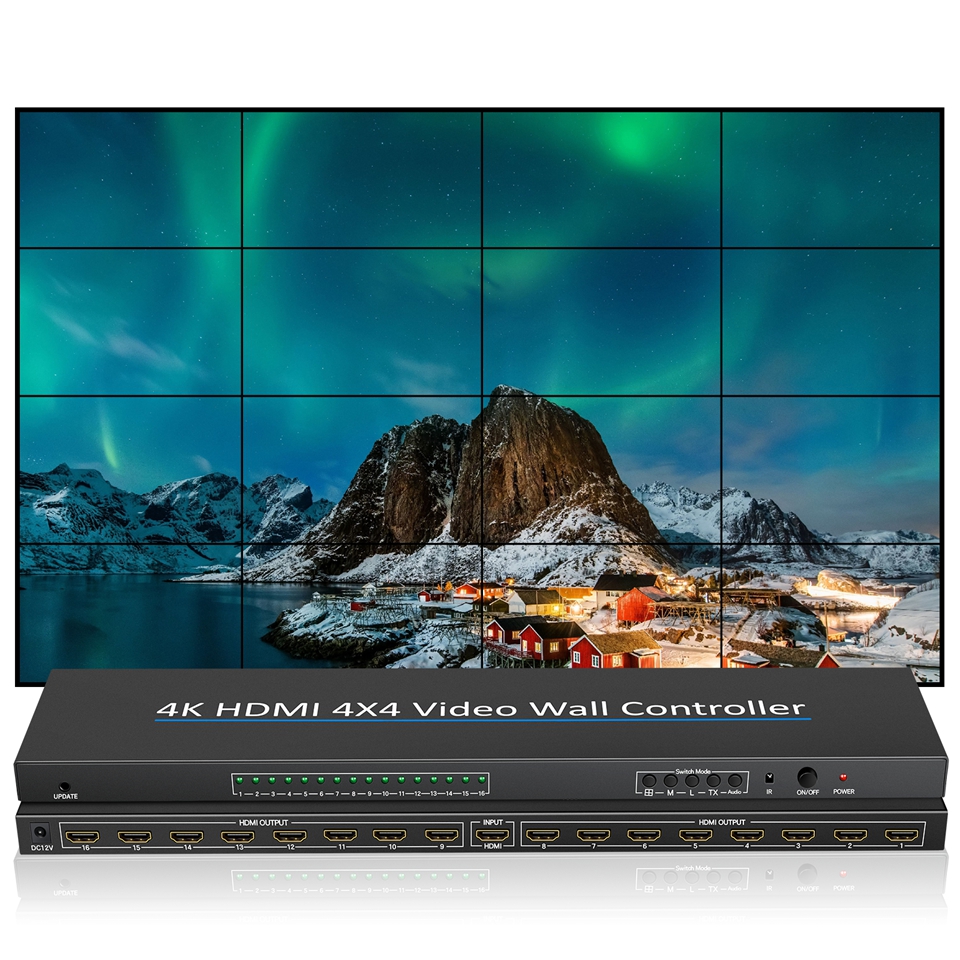

NK-H44 4K HDMI-compatible 4X4 Video Wall Controller 16-Channel Output Multi-screen Video Splicer with Remote Control

NK-H44 4K HDMI-compatible 4X4 Video Wall Controller 16-Channel Output Multi-screen Video Splicer with Remote Control

Description:

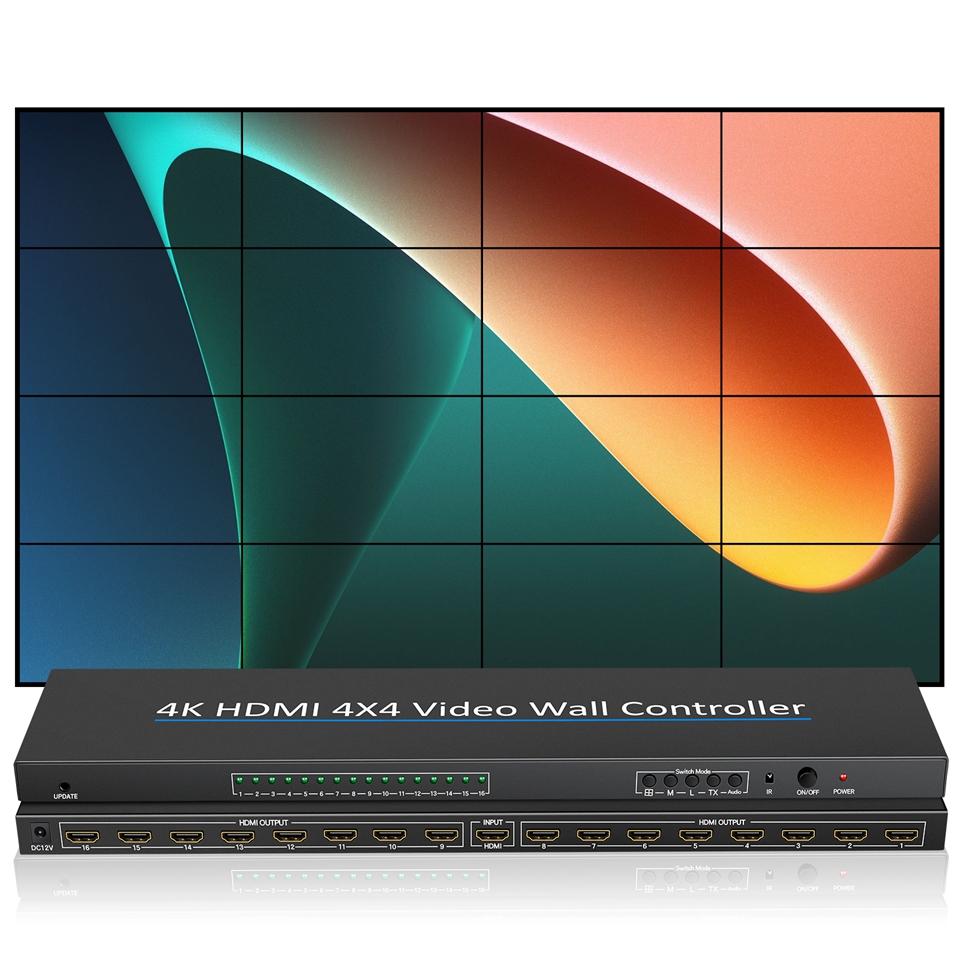

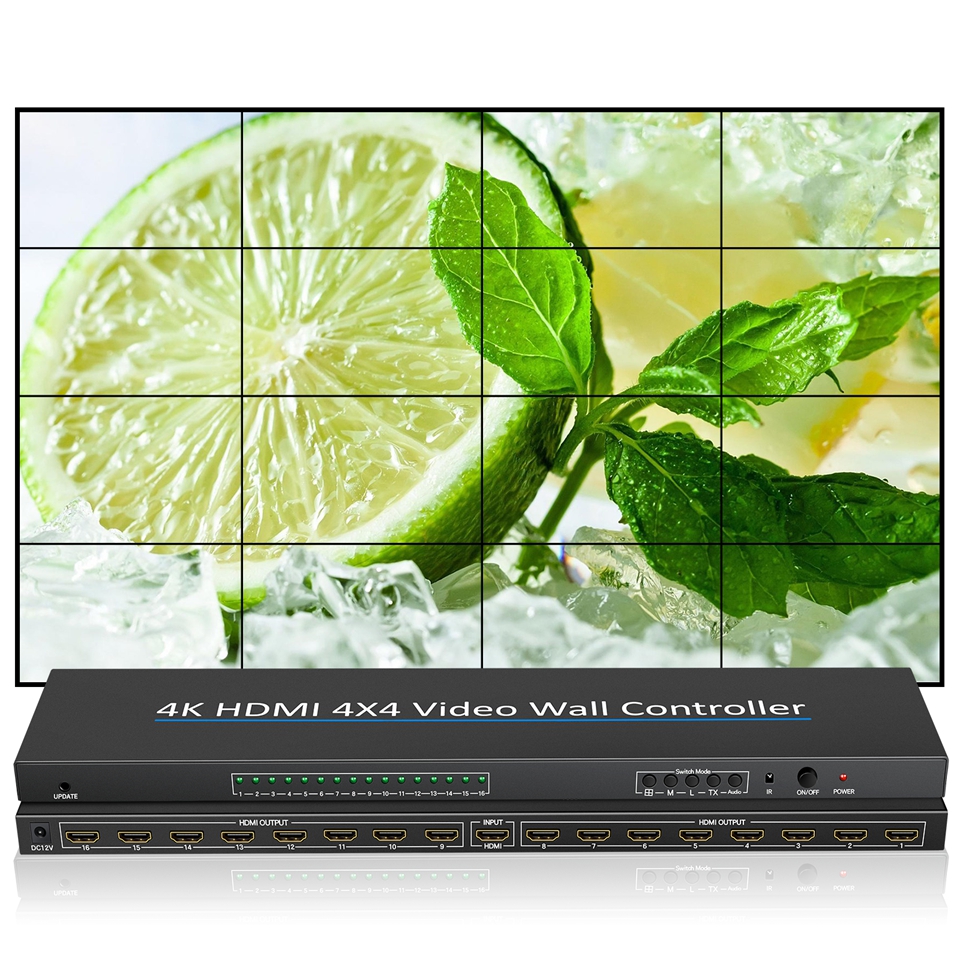

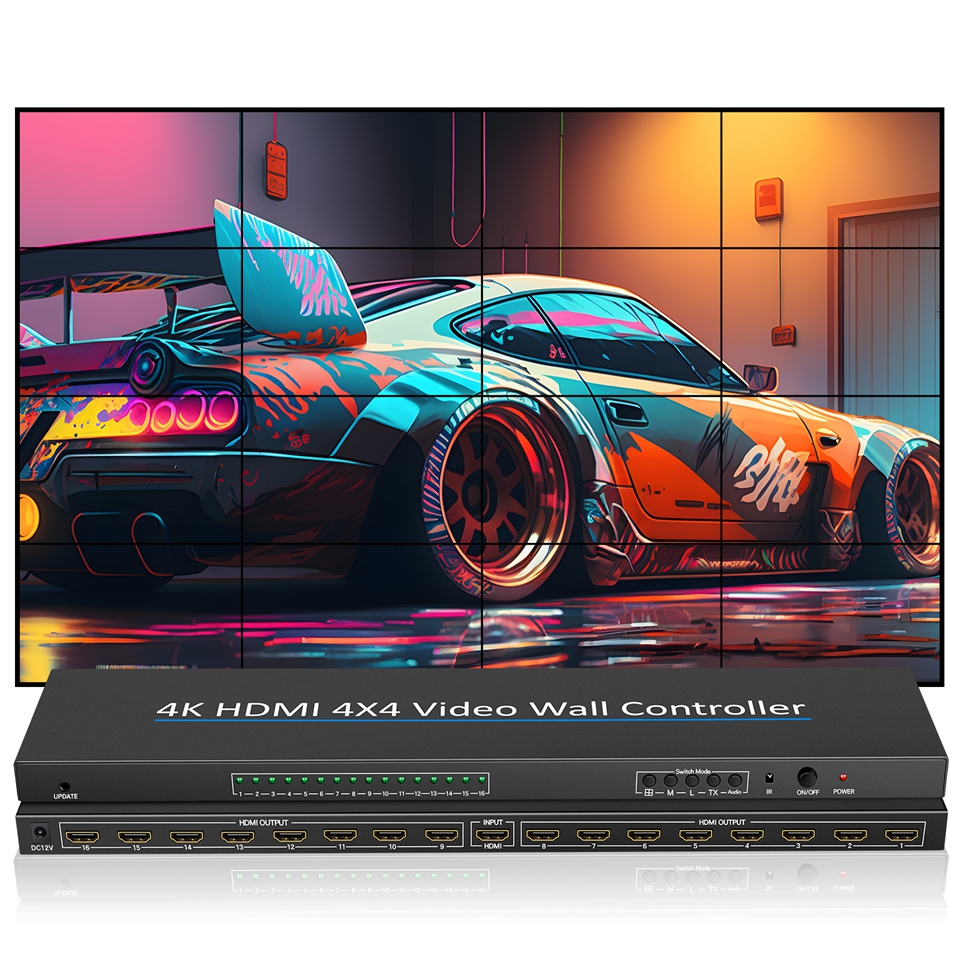

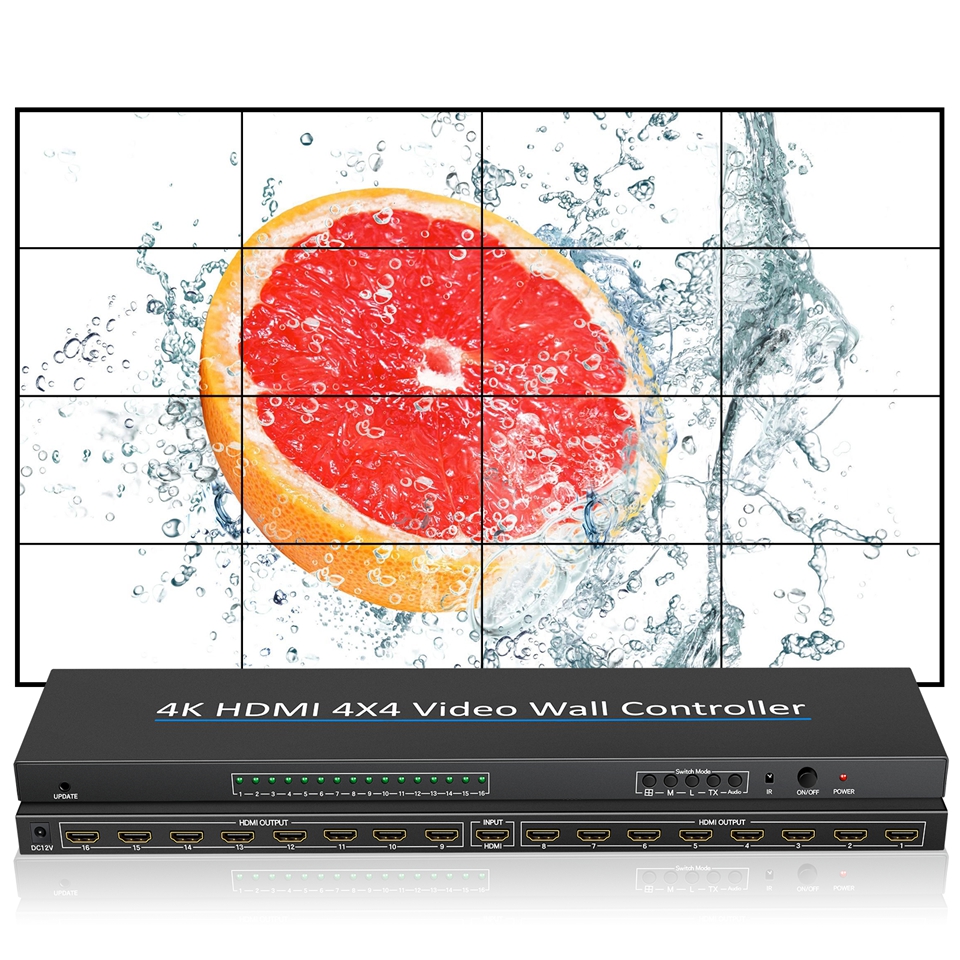

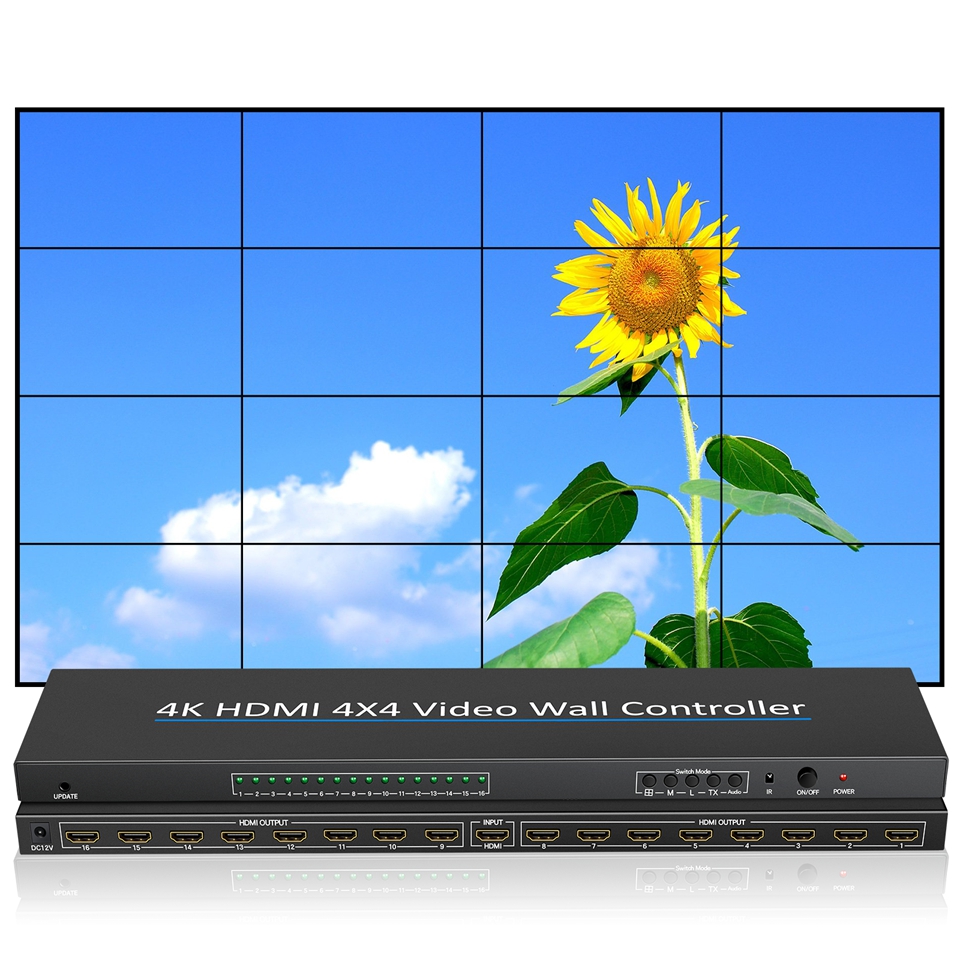

- This 4X4 splicer supports 1 HDMI-compatible input and 16 HDMI-compatible output. The main function of the splicer is to divide a full HDMI-compatible image into 16 blocks and distribute them to 16 video displays, complete with 16 HDMI-compatible HD video display units to form a large dynamic image screen. Supports multiple splicing modes, supports cascading.

Features:
- 16-Channel HDMI-compatible output
- 3840 x 2160P 30Hz input and output are compatible

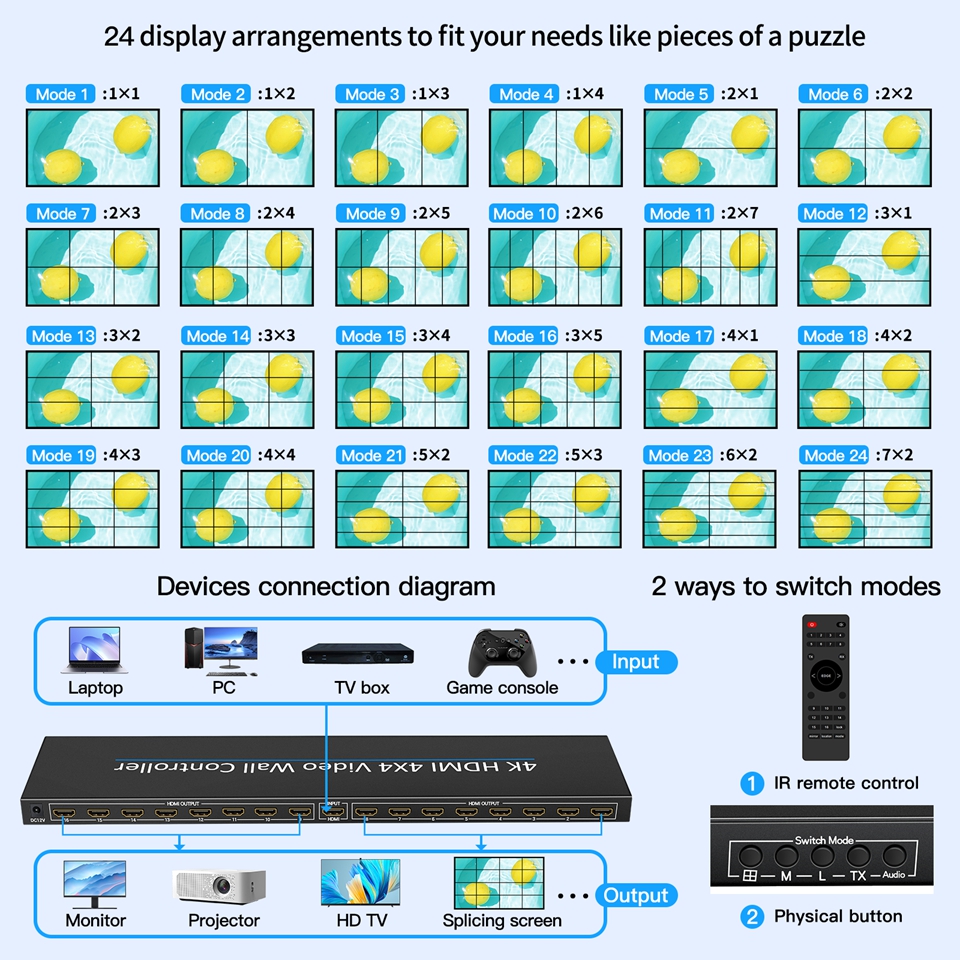

- Multiple splicing support, easy operation, plug and play
- Support six resolution outputs: 1280 x 720 at 60Hz, 1800 x 1350 at 60Hz, 1920 x 1080 at 60Hz, 1920 x 1440 at 60Hz, 2560 x 1600 at 60Hz, 3840 x 2160 at 30Hz

Specification:

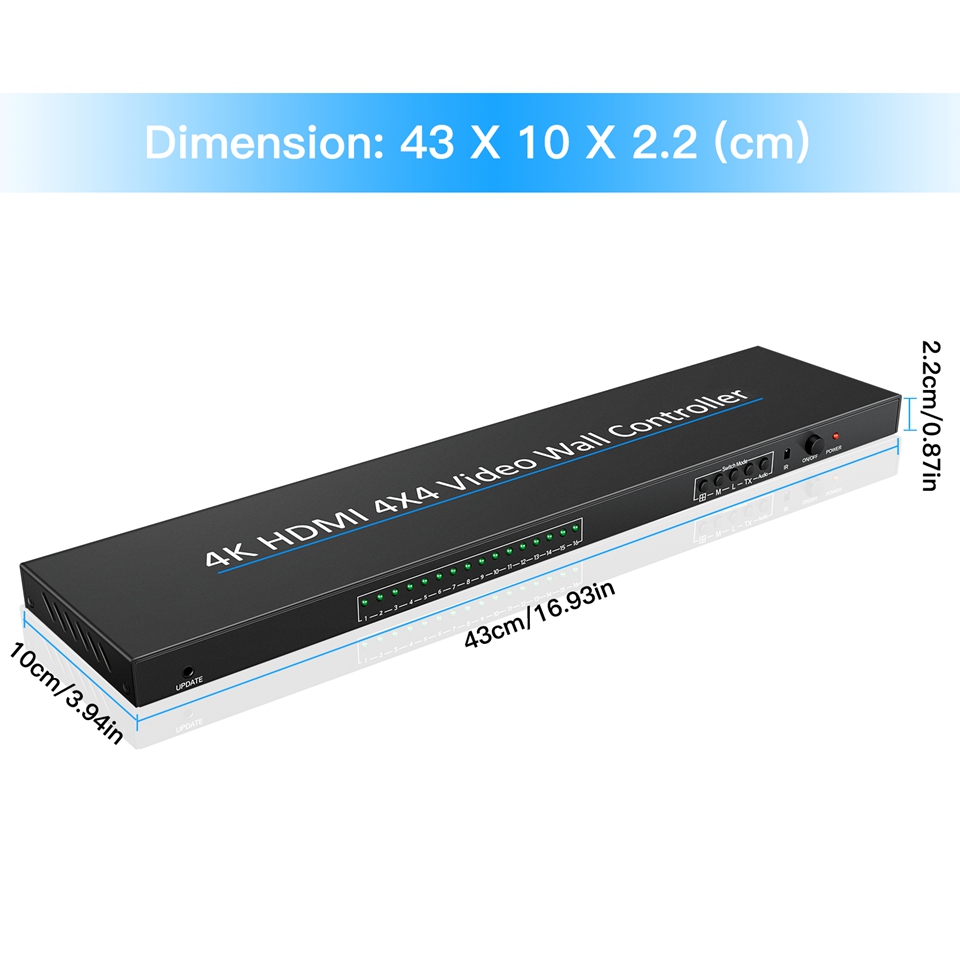

- Product size: 43 x 10 x 2.2cm
- Packaging size: 47 x 14 x 7.5cm
- Host weight: 1031g
- Packaging weight: 1230g

Precaution:
- HDMI-compatible cable must use 19 + 1 full needle of wire.

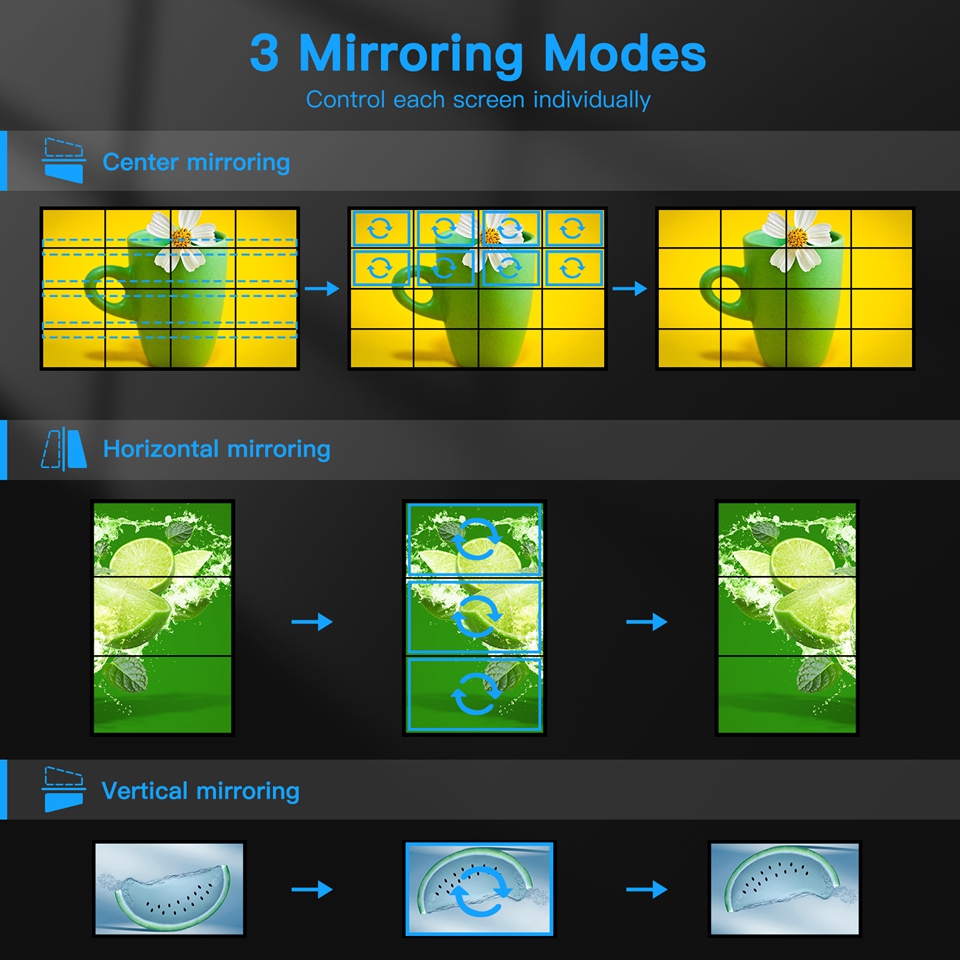

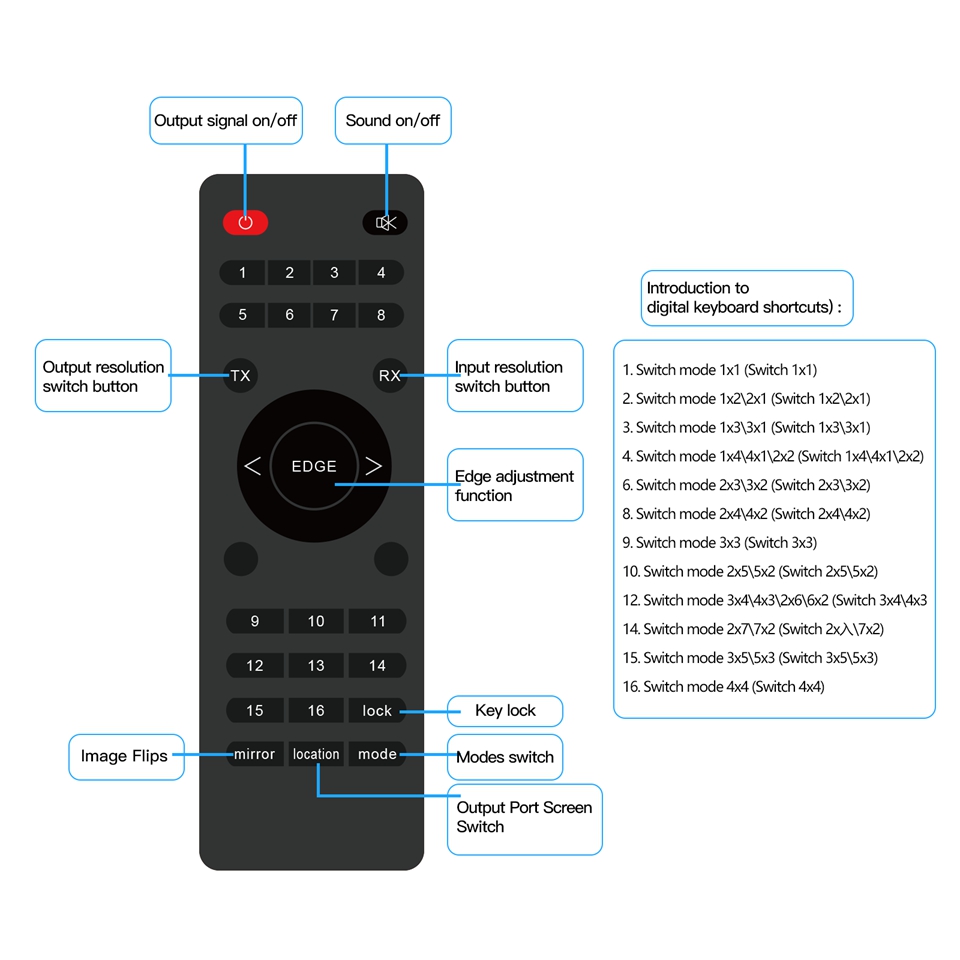

- The use of image flipping (each image can be flipped independently) :
  Step 1, press the remote control “Mirror” button, wait for the OSD in the upper left corner of the image to display “Mirror”; Step 2, use the number button to operate, for example, you want to flip the sixth screen, you press the number “6” button. When you're done, remember to press the “Mirror” button again to exit the operation.

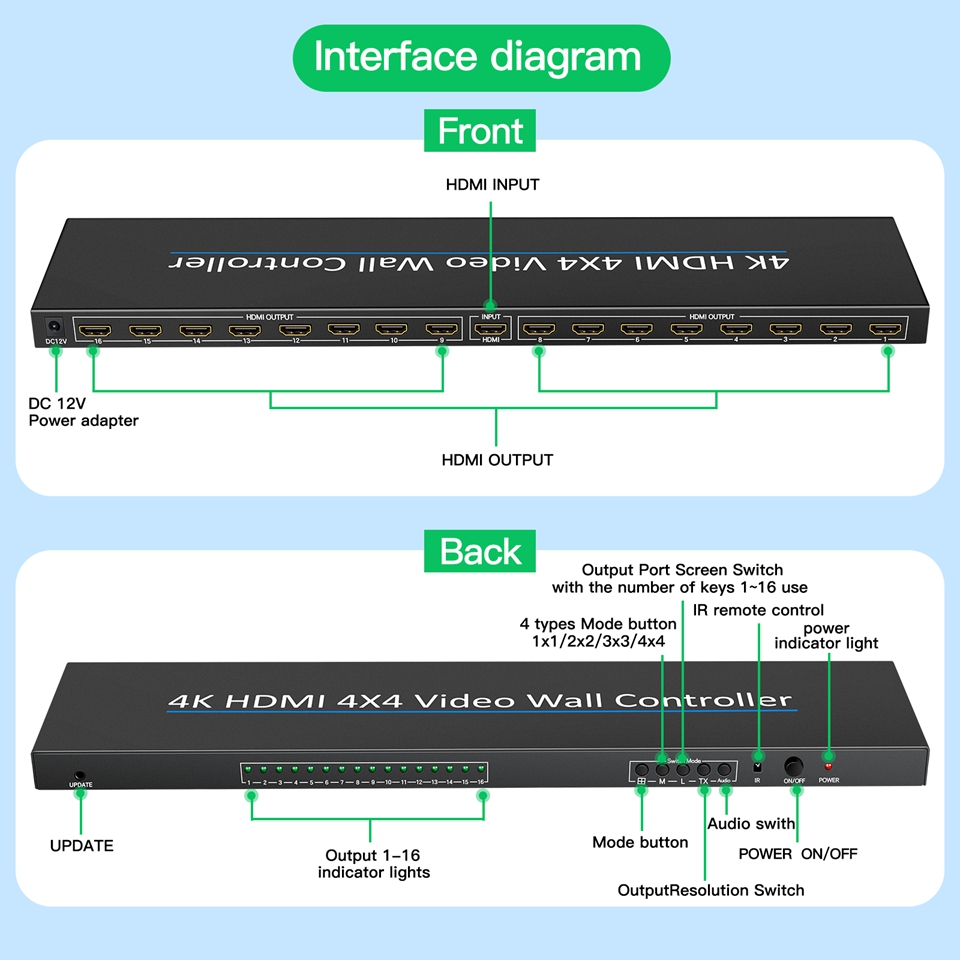

- Switch the output port screen: first, press the remote control “Location” button, wait for the OSD in the upper left corner of the screen to show “Location”; second, use the digital keys to operate, for example, you want to select the 6th screen output, you press the number “6” button. When you're done, remember to press the “Location” button again to exit the operation.

Package Included:
- 1 x 4X4 Splicer
- 1 x Power Adapter
- 1 x User Manual
- 1 x Remote Control
