NK5100 OTDR Mini Optical Time Domain Reflectometer Multi-Functional Optical Measuring Instrument with 5 inch Touch Screen

NK5100 OTDR Mini Optical Time Domain Reflectometer Multi-Functional Optical Measuring Instrument with 5 inch Touch Screen

Description:

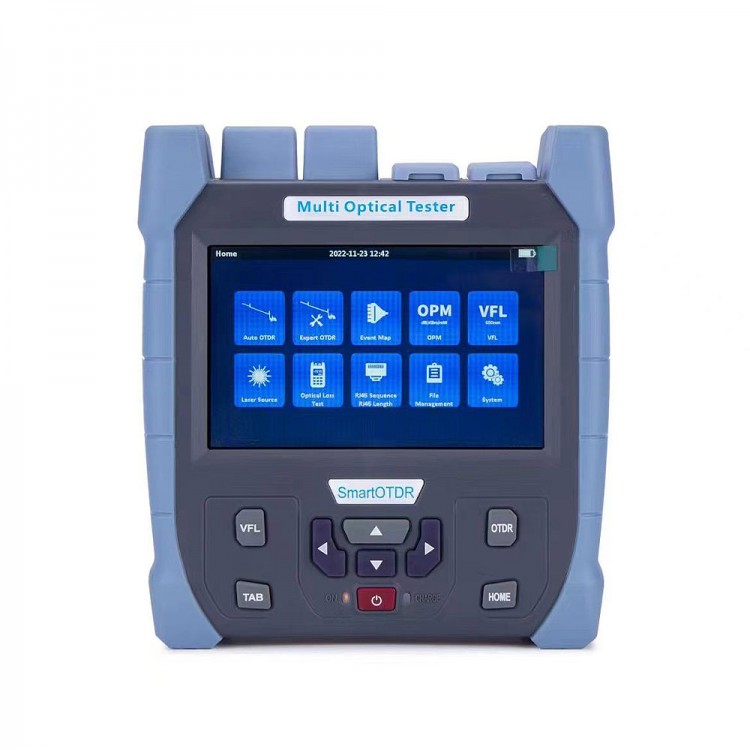

- NK5100 mini optical time domain reflectometer is compact and easy to carry; It adopts 5-inch high-definition touch screen, supports multi-touch, and controls smoothly. It integrates OTDR, event map, light work, red light, flashlight and other multi-functions to meet the various test needs of different occasions. The whole machine has 1.5m event dead zone, 6m attenuation dead zone, and a maximum measurement range of 100km, which can be used to measure the length, loss, connection quality and other parameters of the optical fiber, and can easily test the break-point, bend, and loss point of the optical fiber link, which is suitable for line maintenance and emergency repair test by installation and maintenance personnel.

Features:
- Small size and beautiful, easy to carry
- 5-inch high-definition full touch screen, support multi-touch, interactive friendly
- Rich functions, one machine in hand, all installation and maintenance
- Working wavelength: 1310, 1550nm
- Battery working time is more than 8 hours, safety guarantee
- 1.5m event dead zone, 6m attenuation dead zone, maximum test range 100km
- High-performance processor for smooth handling
- Intelligent link analysis to visually display analysis events

Specification:
- Model: NK5100
- Fiber type: G.652 Single-mode fiber
- Wavelength: 1310nm±20nm; 1550nm±20nm
- Maximum dynamic range: 28/26dB
- Event dead zone: 1.5m
- Attenuation dead zone: 6m
- Test range: 500m / 1km / 2km / 4km / 8km / 16km / 32km / 64km / 100km
- Test pulse width: 5ns / 10ns / 20ns / 30ns / 50ns / 80ns / 160ns / 320ns / 500ns / 800ns / 1us / 2us / 3us / 5us / 8us / 10us / 20us
- Ranging accuracy: ± (0.75m + sampling interval + 0.005% x test distance)
- Linearity: ±0.05dB/dB
- Maximum number of sampling points: ≥16000
- Maximum sampling resolution: ≤0.03m
- Loss resolution: 0.01dB
- Loss threshold: 0.20dB
- Distance resolution: 0.01m
- Refractive index: 1.00000~2.00000
- Reflection accuracy: ±3dB
- File format: SOR standard file format
- Loss measurement mode: 4-point method /5-point method
- Laser safety rating    Level: Class II
- Optical connectors: FC/SC is interchangeable, universal interface

Optical Power Meter:
- Wavelength range: 800nm~1700nm
- Calibrate the wavelength: 850/980/1300/1310/1490/1550/1625/1650nm
- Measuring range: -70~+6dBm (optional) /-50~+26dBm (standard)
- Identification frequency: CW/270Hz/330Hz/1kHz/2kHz
- Resolution: 0.01dB
- Uncertainty: ±5%
- Optical connectors: Universal connector FC/SC/ST

Stabilize the Light Source:
- Output wavelength: Consistent with OTDR output wavelength
- Laser type: FP - LD
- Output power: ≥-5dBm
- Stability: CW, ±0.5dB/15min (tested after 15min warm-up)
- Optical connectors: SC/PC
- Output mode: CW/270Hz/330Hz/1kHz/2kHz

Visual Fault Location:
- Operating wavelength: 650nm±20nm
- Output power: ≥10mW
- Working mode: CW/1Hz/2Hz
- Optical connectors: Universal connector

Generic Metrics:
- Display: Full touch 5-inch, 800×480 color LCD
- Power supply mode:
  AC/DC adapter: input: 100V~240V, 50/60Hz, 0.6A; Output: 5V, 2A
  Lithium polymer battery: 3.7V, 5000mAh
- Working hours: Standby > 12h, continuous test >8h
- Data storage    Interior: 8G, ≥20000 strip
- Data interface: Type-C USB
- Operating temperature: -10℃～+50℃
- Storage temperature: -40℃～+70℃
- Relative humidity: 0～95％No condensation
- Total weight: ≤700g (with battery)
- Size: 170mm × 154mm × 58mm

Package Included:
- 1 x Host
- 1 x RJ45 Remote End
- 1 x Power Adapter
- 1 x Data Cable
- 1 x TF(including analysis software, instruction manual)
- 1 x Instruction Manual
- 1 x Calibration Certificate
- 1 x Certificate
- 1 x Cleaning pad
- 1 x Instrument Special Bag
