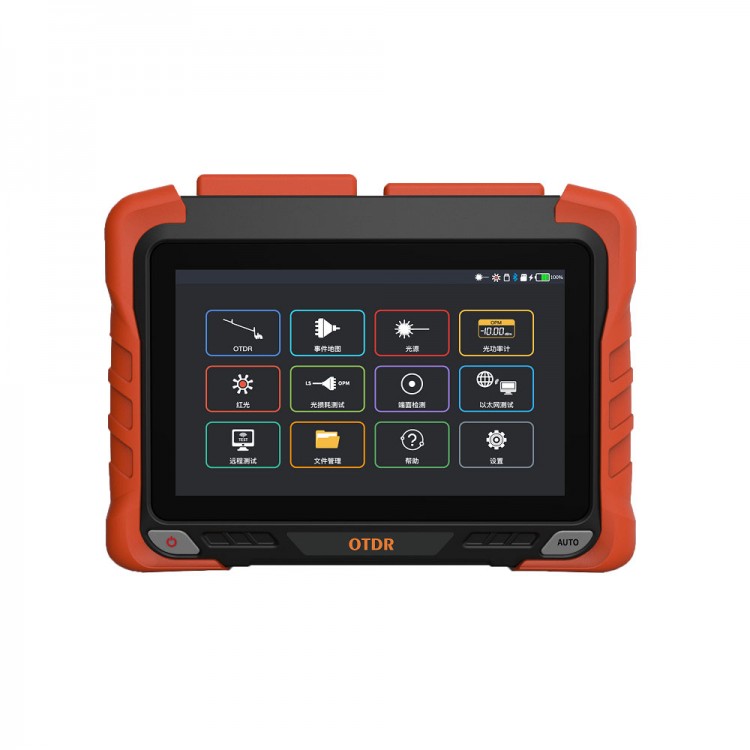

NK6200-T1 OTDR High Performance Optical Time Domain Reflectometer with 7 inch Capacitance Touch Screen

Description:

- NK6200 series OTDR adopt 7 inch capacitance touch screen, which integrates 9 modules. With excellent intelligent hardware and software design, the accuracy of short fiber test and automatic test is higher. It is equipped with rich Ethernet test (Ping/PPOE, etc), support APP control.
- NK6200 series is used to test the optical fiber length, loss and connection quality, and used in the engineering construction, link maintenance test, They are mainly used in urban trunk, bone trunk network and metropolitan area network.

Features:
- 0.5m Event dead zone
- Online detection, effective APD active protection
- Support fast charging protocol and power bank
- Ethernet test, supporting Ethernet remote test
- Integrate OTDR / VFL / LS / OPM / Event Map / End detection / Optical loss test / Ethernet test / Remote test / File management
- Support SM / MM / SM + MM test
- PON network online test
- Maximum dynamic range 45dB
- Mobile APP wireless operation

Specification:
- Model: NK6200-T1
- Wavelength: 1310nm/1490nm/1550nm
- Max dynamic range: 32/30/30dB
- Event blind zone: 0.8m
- ATT blind zone: 4m
- Test range: 100m/500m/1.25km/2.5km/5km/10km/20km/40km/80km/125km/260km/420km
- Pulse width: 3ns / 5ns / 10ns / 20ns / 30ns / 50ns / 80ns / 100ns / 200ns / 300ns / 500ns / 800ns / 1us /2us / 3us / 5us /8us / 10us / 20us
- Ranging accuracy: ±(0.75m+Sample interval+0.0025% x Test distance)
- Loss accuracy: ±0.03dB
- Sample points: ≥256k
- Sample resolution: 0.015m~16m
- Reflection accuracy: ±2dB
- Loss resolution: 0.001dB
- Loss threshold: 0.01dB
- File format: SOR standard file format
- Loss analysis: 4-point method / 5-point method
- Laser safety level: Class II
- Refresh rate: 4Hz (Typ.)
- Data storage: Internal storage: 2GB, 200000curves; External storage: 64GB
- Connector: FC/UPC (Interchangeable SC/ST)
- Data interface: USB-A, Type-C port, RJ45 LAN 10/100Mbit/s
- Display: 7 inch color LCD + touch screen; Resolution: 800 x 480
- Power supply:
  Type-C adapter: Input: 100V~240V, 50/60Hz; Output: 5V/3A, 9V/2A, 12V/1.5A
  Lithium Battery: 3.7V, 10400mAh
- Working temperature: -10℃~+50℃
- Storage temperature: -40℃~+70℃
- Relative humidity: 0~95%, non condensing
- Weight: ≤1.2kg
- Size: 215 x 160 x 50mm

Package Included:
- 1 x Host
- 1 x AC/DC Power Adapter
- 1 x U Disk (Containing Analysis Software/User’s Manual)
- 1 x Data Line
- 1 x OTDR SC Adapter
- 1 x User Manual
- 1 x Calibration Certification
- 1 x Certificate/Warranty Card
- 10 x Clean Cotton Piece
- 1 x Leather Knob
- 1 x Special Backpack for Instrument
