NRC-1200 Antenna Rotator Controller Supports Stepper Motor Servo Motor Shortwave Yagi Antenna
Description:
The NRC-1200 is a universal network antenna rotator controller. A rotator can be connected by a composite network cable (network cable + power cable) to achieve remote control, while saving control cables. NRC-1200 supports 4 web controls and 1 virtual serial port (N1MM/HRD/LOGG32, etc.), allowing 5 people to control the rotation of one antenna.
Features:

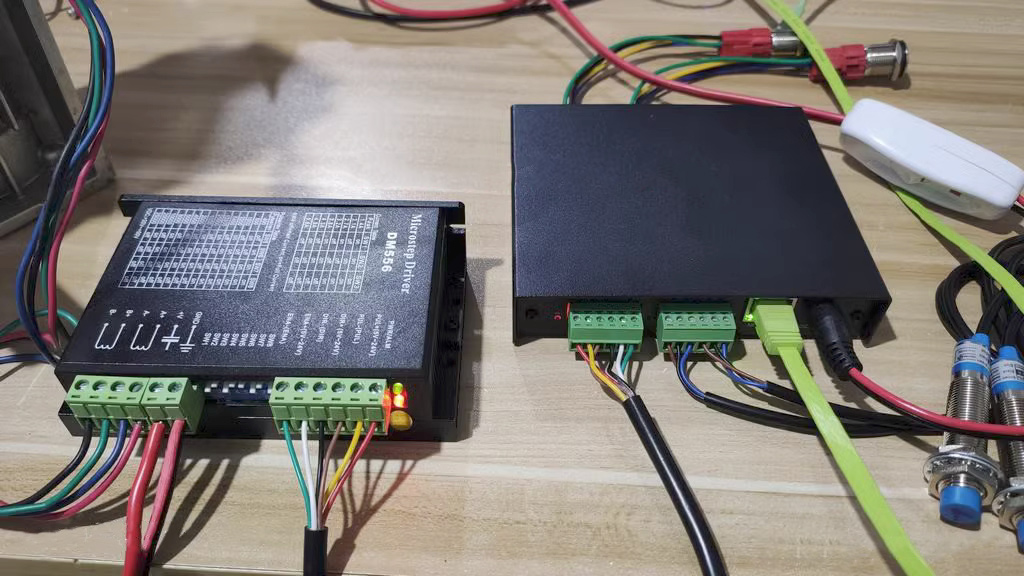

- Designed for rotators using stepper/servo motors

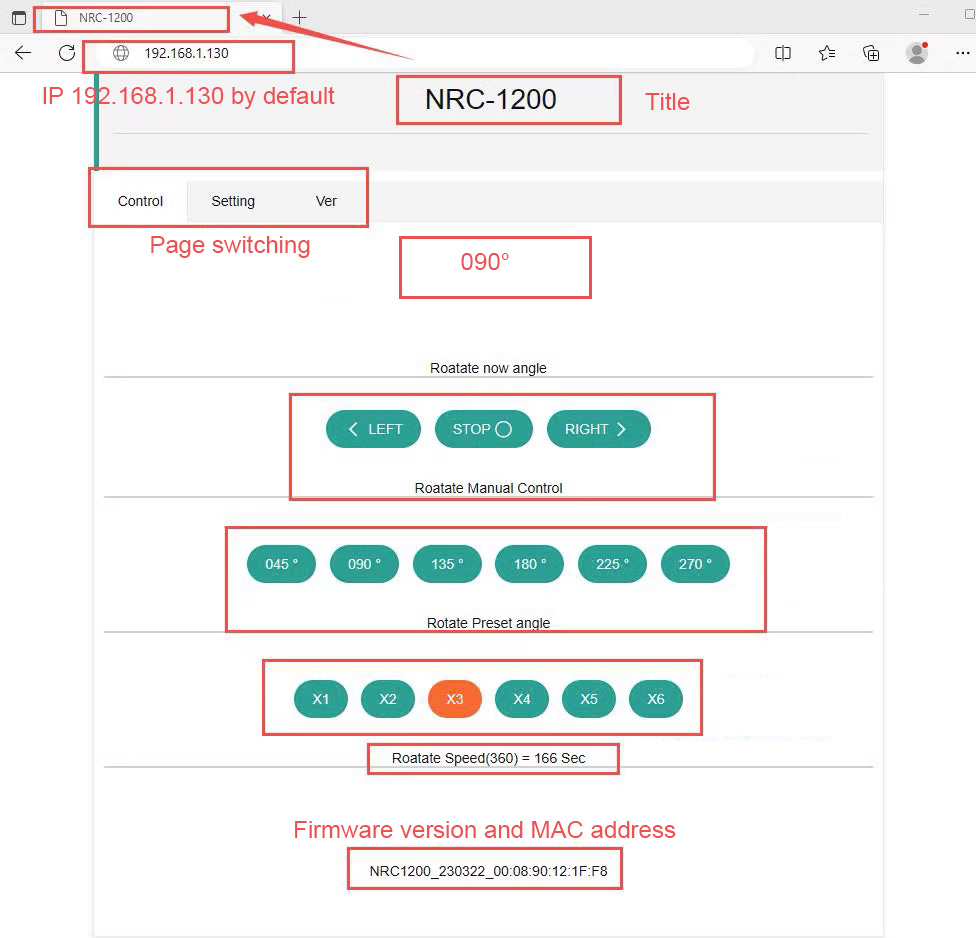

- Supports manual and web page X4 control
- Support virtual serial port and support control software for HRD/Orbitron/N1MM/LOGG32

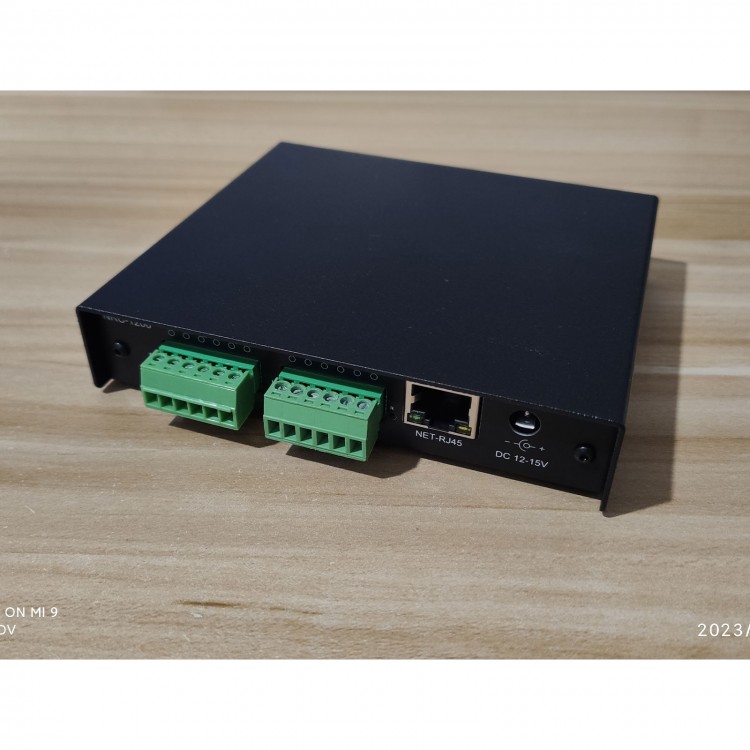

- 100M/10M RJ45 network port supports direct connection of 568A-568B network cable
- DC 9-15V wide voltage input

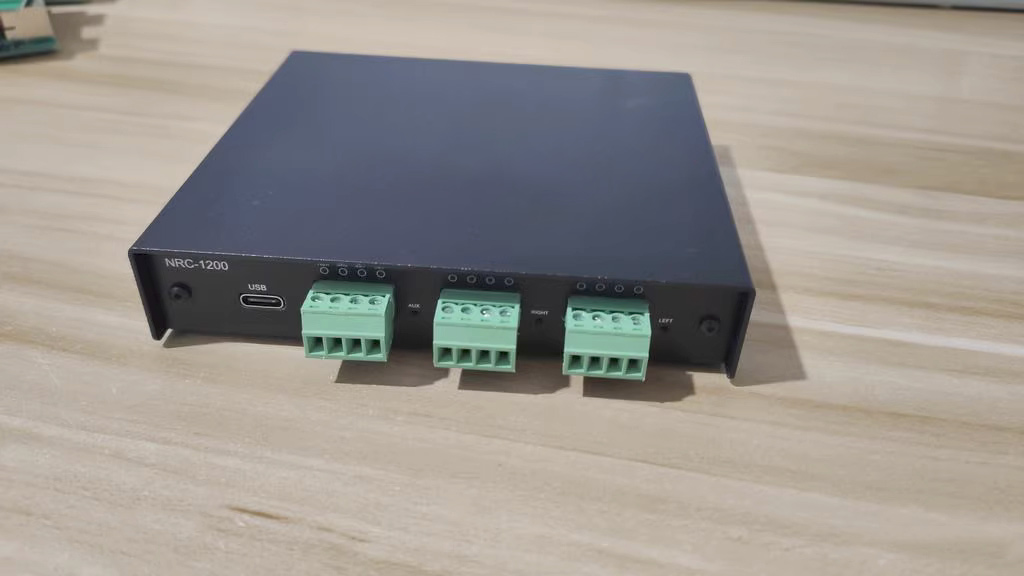

- Integrated USB port for firmware upgrade/parameter setting. Parameters can be set over the network
- Support user-independent firmware upgrade and automatically set memory
- Dimensions: 120 x 110 x 24mm/4.7 x 4.3 x 0.9"
- Weight: 0.2KG/0.4LB
Package Included:
- 1 x Antenna Rotator Controller
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
