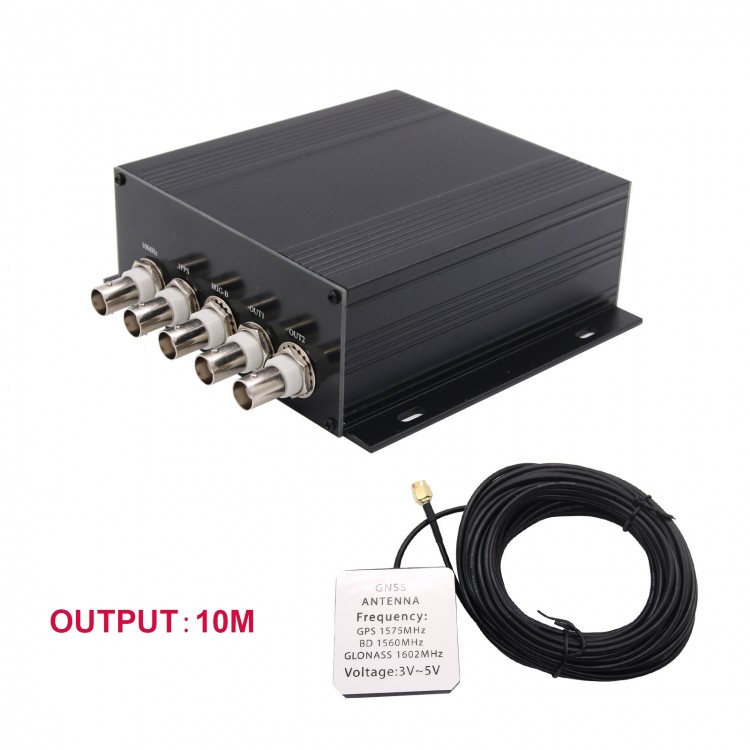

NTP Time Server GPSDO GPS Disciplined Oscillator Clock w/10MHz Output For GPS Beidou GLONASS GALILEO

NTP Time Server GPSDO GPS Disciplined Oscillator Clock w/10MHz Output For GPS Beidou GLONASS GALILEO

Features:
- Support for GPS, Beidou, GLONASS, GALILEO & QZSS
- 1PPS synchronization accuracy up to 15ns (1σ)
- Be punctual when the satellite reference source is lost
- Antenna open-circuit and short-circuit detection
- Client visit traffic up to 1000 times/s
- LAN synchronous timing accuracy 0.5-2ms
- NTP v2 (RFC 1119), v3 (RFC 1305) , v4 (RFC 5905)
- SNTP v3 (RFC 1769), v4 (RFC 2030)
- Support MD5 information verification
- Support Server & Broadcast working modes

Rich Interfaces:
- 2-Way 1PPS+TOD Output
- 1-Way 1PPM Output
- 1-Way 1PPH Output
- 1-Way IRIG-B Output
- 1-Way NTP Network Timing Interface
- 1-Way 1PPS Output
- 1-Way 10MHz Output

Configuration Software:
- Free software
- Simple interface makes it easy to use

Checking Status:
- The PC software can query and control your device by monitoring the serial port or network TCP protocol, and the status of the device information is accessible at a glance.

Receiver Parameters:
- Support: GPS L1, Beidou B1, GLONASS L1, Galileo E1 & QZSS L1
- Horizontal Positioning Accuracy: <2.5 m CEP50 (autonomous)
- Vertical Positioning Accuracy: <5 m CEP50 (autonomous)

First Positioning Time:
- Reacquisition: < 1s 50%
- Warm Boot: < 1s 50%
- Warm Start: < 33s 50%
- Cold Start: < 35s 50%

Sensitivity:
- Tracking: - 165 dBm
- Acquisition: -148 dBm

Dynamic:
- Acceleration: 4g
- Speed: 515m/s

NTP Parameters:
- Interface: 10/100 Base-Tx
- Interface Standard: Compliance with IEEE-802.3u Standard
- Interface Rate: 10/100M Adaptive
- Interface Connector: RJ-45
- NTP LAN Timing Accuracy: 0.5-2ms
- Support Protocols: NTPv2, NTPv3, NTPv4 and SNTP
- MD5 Information Verification: Yes

1PPS, 1PPM & 1PPH:
- Interface Level: LVTTL
- Pulse Width: 100ms
- Rising Edge: ≤15ns
- Jitter: ≤500ps
- Timing Accuracy: ≤15ns(1σ)
- 24-hour Accuracy of Punctuality (Test after disciplining OCXO 24 hours): ≤50μs (OCXO); ≤5μs (DOCXO)

IRIG-B:
- Interface Level: LVTTL
- Signal Output Format: IRIG-B 000, supporting IEEE1344
- Punctual Edge: Rising edge
- Timing Accuracy: ≤15ns(1σ)

TOD:
- Interface Level: LVTTL
- Message Format: ZDA (Can be customized)
- Baud Rate: 9600
- Accuracy: The message frame header is aligned with the leading edge of the second pulse (1PPS) with a deviation of less than 1μs

10MHz:
- Waveform: Sine Wave
- Amplitude: >7dBm
- Load: 50Ω
- Harmonic Suppression: -30dBc
- Clutter Suppression: -80dBc
- Frequency Accuracy: Better than 1.0E-12 (After taming 24 hours)
- Short-term Stability (T= 1S): Better than 1.0E-12 (Can be customized)
- Phase Noise: -110dBc/Hz@10Hz; -140dBc/Hz@100Hz; -150dBc/Hz@1KHz; -155dBc/Hz@10KHz (Can be customized)

Electrical Parameters:
- Working Voltage: DC 12V
- Operating Current: Power-on < 500mA; Steady State < 200mA
- GNSS Antenna Voltage: 5V
- Network Port Specifications: RJ45, 10/100Mbps, Cross-connection adaptive
- Encapsulation Way: RJ45
- Reliability Level: 2KV Electromagnetic Isolation
- Working Temperature: -40 to 85℃
- Storage Temperature: -45 to 105℃
- Working Humidity: 5% to 95% RH (No condensation)
- Storage Humidity: 5% to 95% RH (No condensation)

Package Included:
- 1 x NTP Server GPSDO GPS Clock w/ 10MHz Output
