NXP-NANO Portable 65-108MHz FM Radio Receiver TEF6686+ESP32 Main Control with 2.4-inch IPS Touch Screen

NXP-NANO Portable 65-108MHz FM Radio Receiver TEF6686+ESP32 Main Control with 2.4-inch IPS Touch Screen

Features:
- Adopting TEF6686 automotive grade chip+ESP32 main control, 2.4-inch IPS touch screen, with clear display and wider viewing angle than ordinary LCD.
- Exclusive original design, black orange contrasting with blue buttons to match the theme color scheme.
- The two sound chamber speakers on the right side of the front panel produce a loud sound, with better mid to high frequencies (due to volume limitations, the unit has weaker bass). The main focus is on the beautiful appearance and portability of EDC.
- The shell adopts the classic sandwich structure and PETG material, it is scratch resistant, wear-resistant, impact resistant, and will not degrade or age, making it more sturdy and durable than PLA.
- Supports 3.5mm audio output, 3W AB class amplifier, built-in max97220 headphone amplifier chip, strong bass effect, and more comfortable listening experience for headphones; Paired with 6686 receiver performance, the FM stereo effect is excellent.
- 2.4-inch IPS full view touch screen (non LCD TN missing view screen), supports fast frequency input, and is faster and more convenient to adjust frequency than the shuttle knob.
- TYPE-C fast charging input, built-in charging power management, built-in lithium battery, capacity of 2000mAh, normal volume and battery life of the headphones for about 6 hours.

Specification:
- Frequency range:
  FM: 65MHz -108MHz
  LW: 144kHz -519kHz
  MW: 522kHz -1710kHz
  SW: 1800kHz -27000kHz
- Product size: 8.5 x 5.3 x 2.1cm

Precaution:
- This product belongs to DIY works and may have some handmade traces.

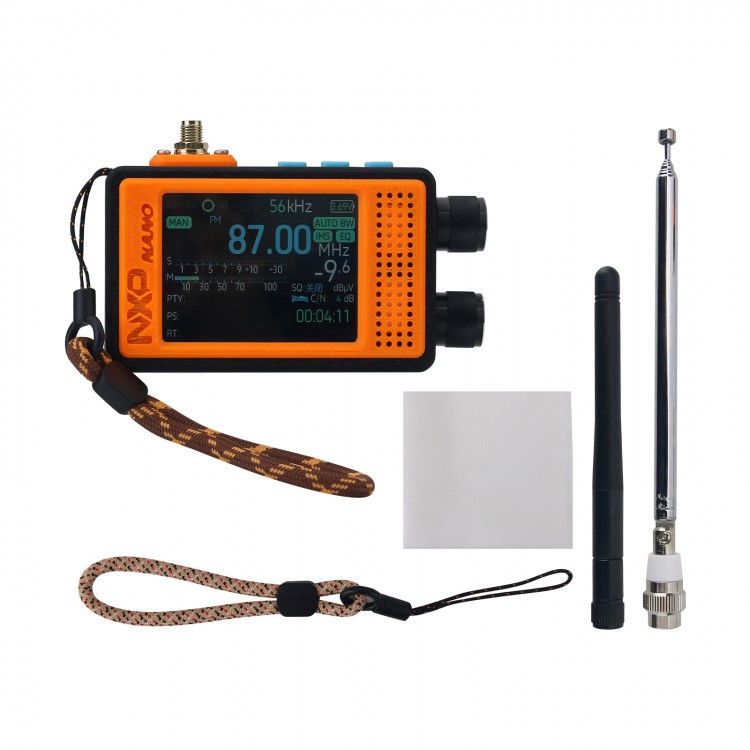

Package Included:
- 1 x Receiver
