OCXO-ADJ-S 10MHz OCXO Board Frequency Reference 10K-250M Adjustable 8.4672M 11.2896M Small Size

Availability: In stock, usually dispatched in 1 business day

  • Price:$125.67
  • Price in reward points: 1257 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $123.16 $120.64 $116.87 $111.85 Contact US
Quantity:

OCXO-ADJ-S 10MHz OCXO Board Frequency Reference 10K-250M Adjustable 8.4672M 11.2896M Small Size

Product Details:

* Item Name: 10M adjustable frequency reference board
* Model: OCXO-ADJ-S
* Input: 8M-12M, 8.4672M, 11.2896M, 10M can be input
* Output: OUT1: 10K-250M/3.3Vpp; OUT2: 10K-250M/3.3Vpp; OUT3: 10k-250M/3.3Vpp, need to be an integer multiple of OUT1 or OUT2
* Interface: SMA; DC 5.5/2.1
* Power supply: 5V/0.8AA
* Size: 65*53*16mm (L*W*H)
* Screw hole: diameter 3MM, hole distance 58*43mm
* Net Weight: 150g

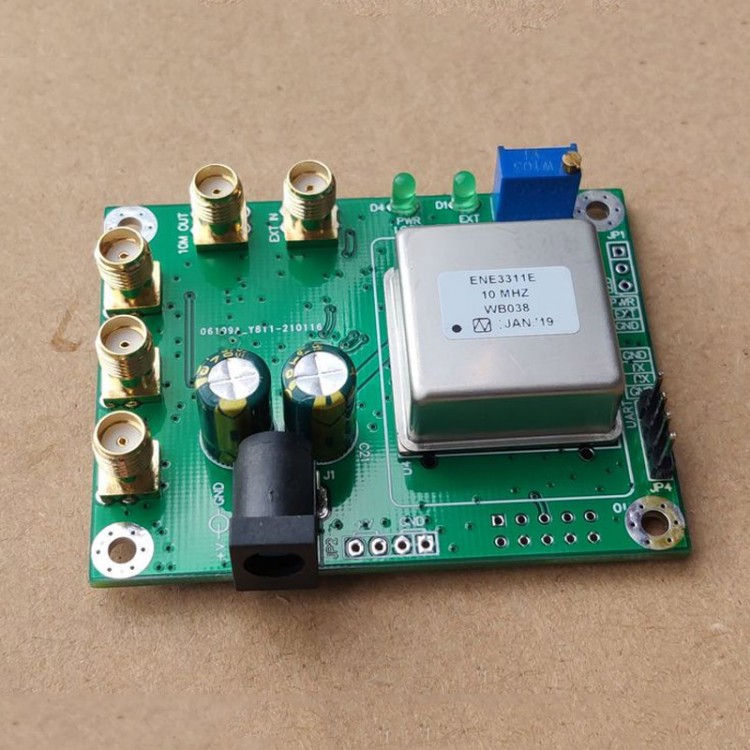

Use of parts on board:
* Black DC socket, power supply, you can also use the 4PIN socket of JP2 next to it
* Potentiometer, fine-tuning OCXO frequency which has been adjusted
* LED-D4PWR LOCK indicator, power supply indicator. If PLL is not locked, the light flashes
* LED-D1, external signal input indication. When there is external frequency input, the light is on
* UART port, writing frequency port connecting to computer, 4PI socket, RS232 level
* LED port, 3PIN socket, LED leads on the board, can be directly connected to LED, built-in current limiting resistor
* SMA, 5pcs in total, which are external input, 10M output, OUT1, OUT2 and OUT3
* 4 side holes, for upper fixing screws, M3 screws, hole diameter 3.0mm, pad diameter 6.0mm
* Communication protocol: compatible with RS232 level, 9600BPS, sending commands are all ASCII codes

$RD* Read 3 channels of frequency:
$WE000000000,000000000,000000000, *Set the output frequency of 3 channels, each channel needs to input 9-bit data separated by commas

Package Included:
* 1 x Set of Frequency Reference Board
