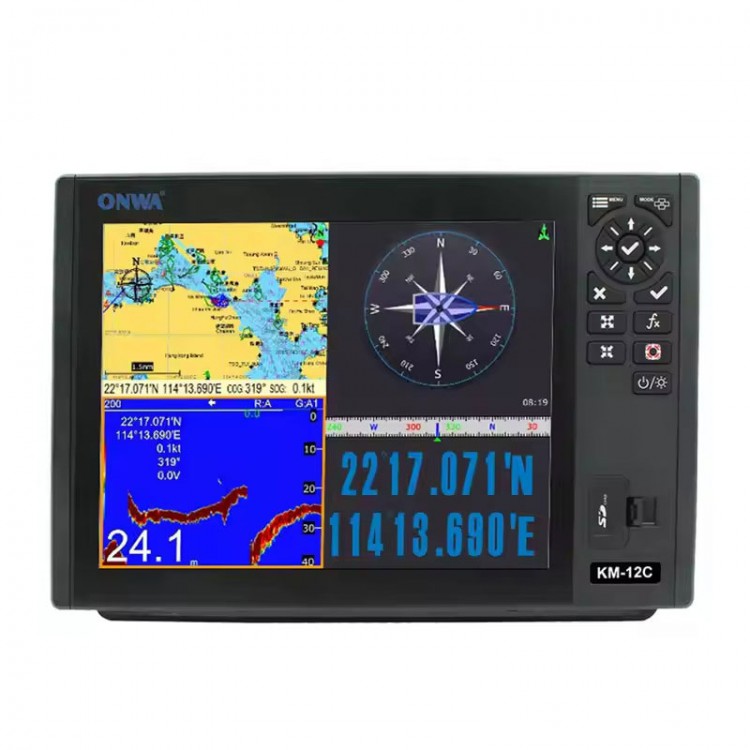

ONWA KM-12C 12-inch Multifunctional Marine GPS Chart Plotter Echo Sounder Fish Finder with SD Card Built-in Sea Map

ONWA KM-12C 12-inch Multifunctional Marine GPS Chart Plotter Echo Sounder Fish Finder with SD Card Built-in Sea Map

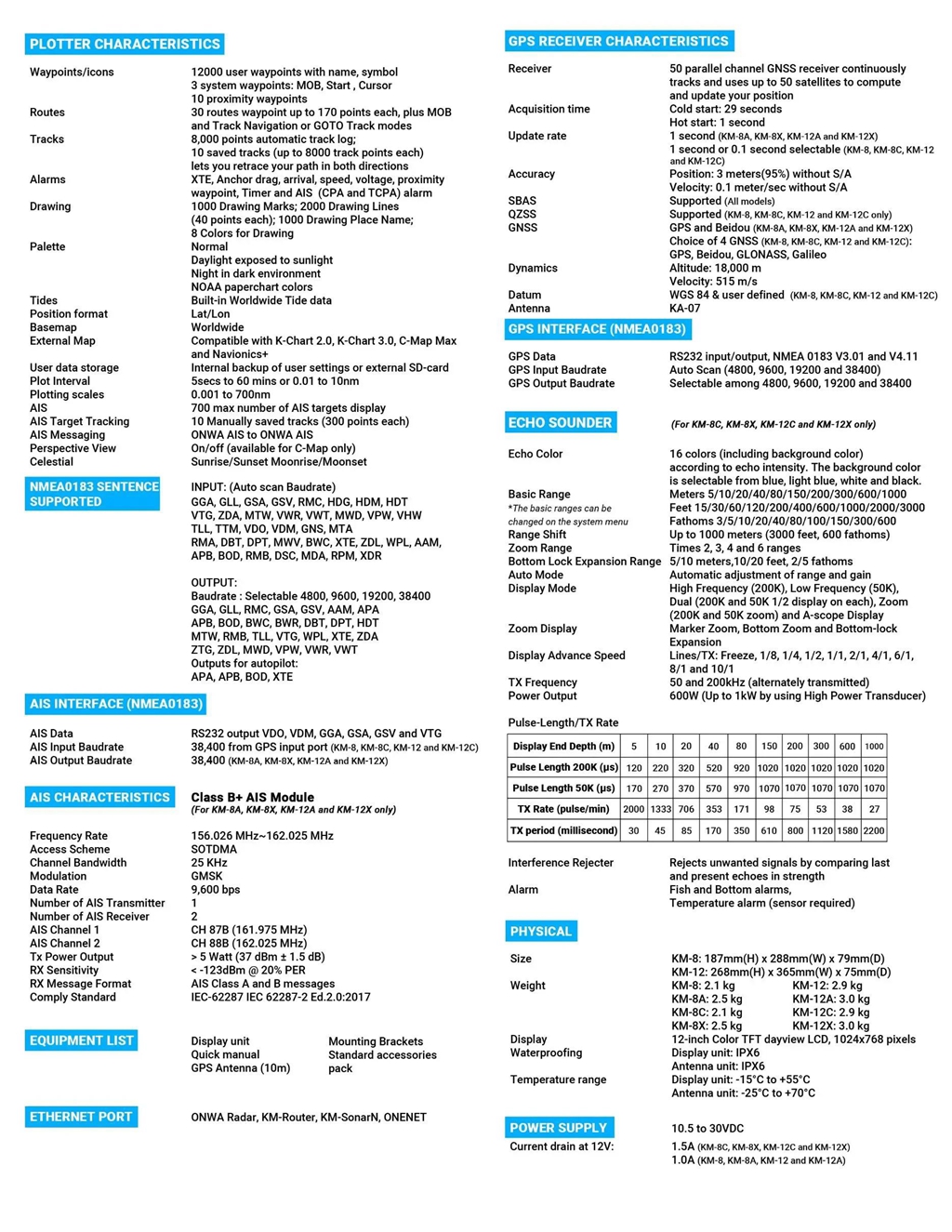

Echo Sounder Characteristics:
- Echo color: 16 colors (including background color) according to echo intensity. The background color is selectable from blue, light blue, white and black
- Basic Range:
  Meters: 5/10/20/40/80/150/200/300/600/1000
  Feet: 15/30/60/120/200/400/600/1000/2000/3000
  Fathoms: 3/5/10/20/40/80/150/300/600
  * The basic ranges can be changed on the system menu.
- Range shift: up to 1000 meters (3000 feet, 600 fathoms)
- Zoom range: times 2, 3, 4 and 6 ranges
- Bottom lock expansion range: 5/10 meters, 10/20 feet, 2/5 fathoms
- Auto mode: automatic adjustment of range and gain
- Display mode: High Frequency (200K), Low Frequency (50K), Dual (200K and 50K 1/2 display on each), Zoom (200K and 50K zoom) and A-scope Display
- Zoom display: Marker Zoom, Bottom Zoom and Bottom-lock Expansion
- Display advance speed: Lines/TX: Freeze, 1/8, 1/4, 1/2, 1/1, 2/1
- TX frequency: 50 and 200kHz (alternately transmitted)
- Power output: 600W (up to 1kW by using high power transducer)
- Interference rejecter: rejects unwanted signals by comparing last and present echoes in strength.
- Alarm: Fish and Bottom alarms, temperature alarm (sensor required, not included)

Package Included:
- 1 x KM-12C Host
- 1 x SD Card
- 1 x Accessory Pack
- 1 x User Manual
