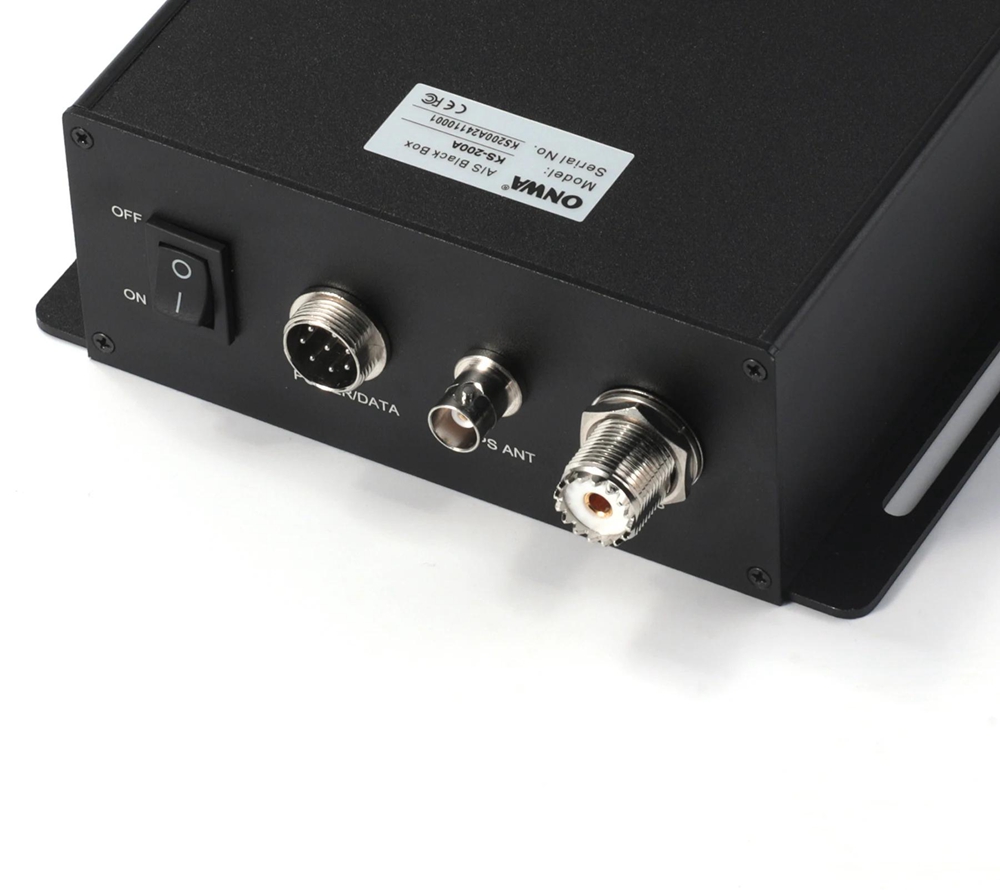

ONWA KS-200A Marine AIS Transponder 156.025MHz-162.025MHz Collision Avoidance Device 5W Class B+ AIS

Availability: In stock, usually dispatched in 1 business day

  • Price:$251.82
  • Price in reward points: 2518 Reward Points: 25
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $246.78 $241.75 $234.19 $224.12 Contact US
Quantity:
Buy it now Add cart

You might like

ONWA KS-200A+ Class B+ AIS Transponder 5W Transmission Marine AIS Support for NMEA2000 with WiFi

ONWA KS-200A+ Class B+ AIS Transponder 5W Transmission Marine AIS Support for NMEA2000 with WiFi

$284.53

(0)
Marine AIS Transmitter Rescue Transmitter Marine VAI8 SART Radar Transponder

Marine AIS Transmitter Rescue Transmitter Marine VAI8 SART Radar Transponder

$200.34

(0)
ONWA KM-12X 5-IN-1 Marine GPS Chart Plotter Echo Sounder Fish Finder Class B+ AIS Transponder Marine Radar with 12-inch LCD

ONWA KM-12X 5-IN-1 Marine GPS Chart Plotter Echo Sounder Fish Finder Class B+ AIS Transponder Marine Radar with 12-inch LCD

$1,298.62

(0)
LIDAR Lite V3 Laser Sensor Optical Distance Measuring Lidar Range Finder 40m for Pixhawk Drone

LIDAR Lite V3 Laser Sensor Optical Distance Measuring Lidar Range Finder 40m for Pixhawk Drone

$198.14

(0)
For Intel RealSense Tracking Camera T265 Redefines Tracking Compact Size Applied To Robotics Drones

For Intel RealSense Tracking Camera T265 Redefines Tracking Compact Size Applied To Robotics Drones

$543.24

(0)
High Sensitivity HP-33A 4.3 Inch AIS Transponder Combo Marine GPS Navigator

High Sensitivity HP-33A 4.3 Inch AIS Transponder Combo Marine GPS Navigator

$398.00

(0)
ONWA KM-8X 8-inch LCD Marine GPS Chart Plotter Fish Finder GPS+Beidou Class B+ AIS Transponder Echo Sounder

ONWA KM-8X 8-inch LCD Marine GPS Chart Plotter Fish Finder GPS+Beidou Class B+ AIS Transponder Echo Sounder

$1,059.43

(0)
4.3" High Sensitivity Marine GPS Navigator Solution Matsutec HP-33 2017 LN

4.3" High Sensitivity Marine GPS Navigator Solution Matsutec HP-33 2017 LN

$369.90

(0)

ONWA KS-200A Marine AIS Transponder 156.025MHz-162.025MHz Collision Avoidance Device 5W Class B+ AIS

Specification:
- Frequency rate: 156.025MHz ~ 162.025MHz
- Access scheme: SOTDMA
- Channel bandwidth: 25KHz
- Modulation: GMSK
- Number of AIS transmitter: 1
- Number of AIS receiver: 2
- AIS Channel 1: CH 87B (161.975MHz)
- AIS Channel 2: CH 88B (162.025MHz)
- TX power output: >5 Watt (37 dBm ± 1.5 dB)
- RX sensitivity: <-123dBm at 20% PER
- RX message format: AIS Class A and B messages
- Comply standard: IEC-62287 IEC 62287-2 Ed. 2.0:2017
- NMEA sentence supported: VDM, VDO, RMC, GSV, GGA, GSA
- GPS receiver (AIS internal): IEC61108-1 compliant
- Dimension: 207mm (length) x 155.8mm (width) x 50mm (height)
- Weight: 0.8kg
- Power supply: 10 ~ 35 VDC; 0.35A nominal, 2A peak
- Temperature: -25°C to +55°C
- Electrical interface: RS232 38.4kbaud bi-directional

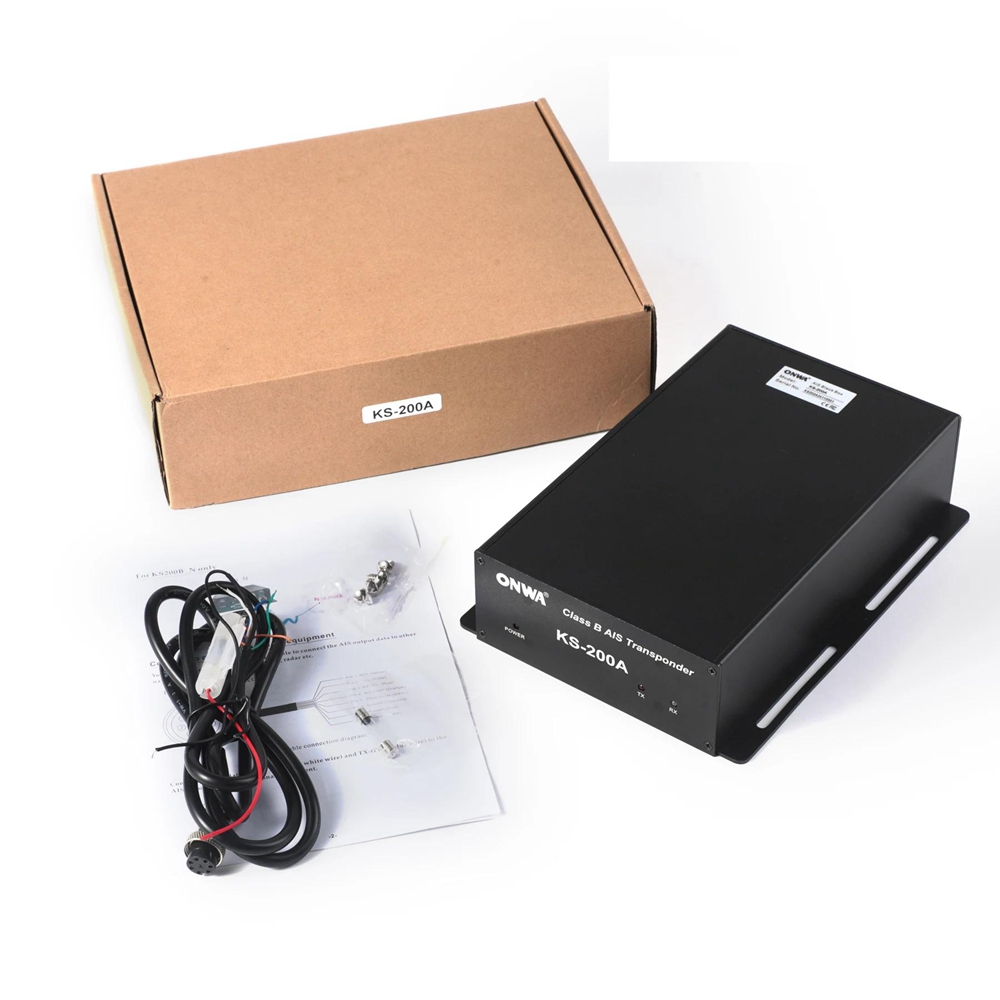

Package Included:
- 1 x Marine AIS Transponder
