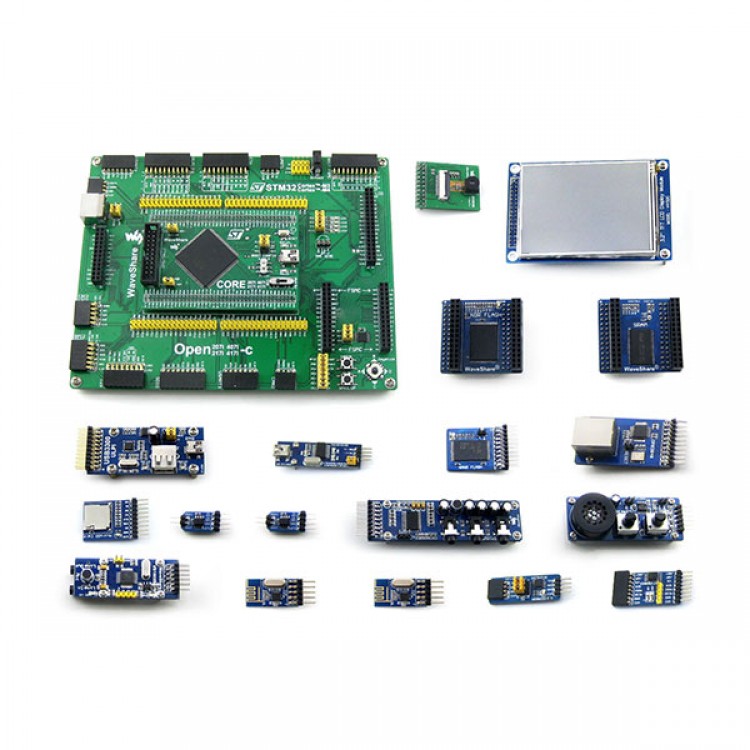

Open207I-C Package B # STM32 STM32F207IET6 STM32F207 ARM Cortex M3 Development Board + 16 Modules

Availability: In stock, usually dispatched in 1 business day

  • Price:$173.68
  • Price in reward points: 1737 Reward Points: 17
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $170.21 $166.73 $161.52 $154.58 Contact US
Quantity:

Open207I-C Package B # STM32 STM32F207IET6 STM32F207 ARM Cortex M3 Development Board + 16 Modules

Description:

    MCU core board connector: for easily connecting the Core207I
    CAN1 interface: communicates with accessory boards which feature the CAN device conveniently
    PS/2 interface: easily connects to PS/2 keyboard and/or mouse
    DCMI interface: for connecting camera module
    I2C2 / I2C3 interface: easily connects to I2C peripherals such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc.
    SPI1 / SPI2 interface
        easily connects to SPI peripherals such as DataFlash (AT45DBxx), SD card, MP3 module, etc.
        SPI1 features AD/DA alternative function, supports connecting AD/DA module as well
    I2S2 / I2S3 / I2C1: for connecting I2S peripherals, such as Audio module
    SDIO interface: for connecting Micro SD module, features much faster access speed rather than SPI
    USART3 interface: easily connects to RS232, RS485, USB TO 232, etc.
    CAN2 interface: communicates with accessory boards which feature the CAN device conveniently
    16-bit FSMC interface: easily connects to peripherals such as NorFlash, SRAM, etc.
    16-bit FSMC + SPI interface: for connecting touch screen LCD
    8-bit FSMC interface: easily connects to peripherals such as NandFlash, Ethernet, etc.
    UART1 interface: easily connects to RS232, RS485, USB TO 232, etc.
    Ethernet interface: easily connects the MCU to ethernet network by using an additional ethernet module
    ULPI interface: for connecting high-speed USB peripheral (the STM32F207I integrates USB HS controller without any PHY device)
    USART2 interface: easily connects to RS232, RS485, USB TO 232, etc.
    ONE-WIRE interface: easily connects to ONE-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
    5V DC jack
    5V/3.3 V power input/output: usually used as power output, also common-grounding with other user board
    MCU pins connector: all the I/O ports are accessible on expansion connectors for further expansion
    74LVC139: used for FSMC expansion, make it possible to connect multi devices through FSMC at the same time, such as LCD and NAND FLASH
    LEDs: convenient for indicating I/O status and/or program running state
    User key: convenient for I/O input and/or interact with running code
    Wake-Up button: wake up the STM32 MCU from sleep mode, also used as regular user key
    Joystick: five positions
    Crystal empty slot (on bottom side): for soldering 50M active crystal oscillator, which'll provide clock to DCMI
    74LVC139 selection jumper: for FSMC chip select
    PS/2 jumper
    LEDs jumper
    User key / joystick jumper
