Optical Power Meter Fiber Optic Power Meter High Sensitivity with FC SC Adapter -50 to +26 dBm

Availability: In stock, usually dispatched in 1 business day

  • Price:$29.49
  • Price in reward points: 295 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $28.90 $28.31 $27.43 $26.25 Contact US
Quantity:

Optical Power Meter Fiber Optic Power Meter High Sensitivity with FC SC Adapter -50 to +26 dBm

Description:

The engineering handheld optical power meter is an accurate, durable and convenient portable test instrument specially designed for installation, operation and maintenance of optical fiber networks. With rubber sheath, dustproof and drop resistant, backlit display switchable, automatic shutdown function, ultra-wide optical power test range, precise test accuracy, new user self-calibration function and universal interface design.

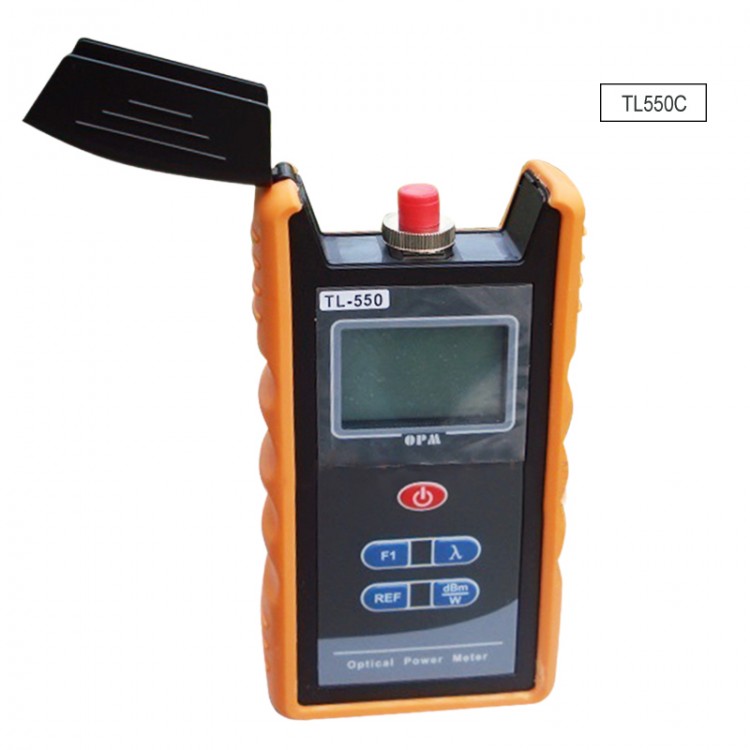

TL-550 optical power meter is divided into TL550A and TL550C two models according to the different power detection range:
* TL550A: -70 to +10 dBm, used in the field of data communication.
* TL550C: -50 to +26 dBm, used in broadcast TV, video surveillance and other fields.

Scope of Application:
- Optical fiber CATV project
- Optical Fiber communication engineering
- Fiber optic sensing research
- Production and research of optical devices
- Other fiber engineering

Features:
- High sensitivity and large dynamic range
- Universal interface design: FC/SC/ST interface, with FC, SC adapter interface
- Mini chassis protection design, small and elegant, to prevent accidental drop damage to the instrument detector.
- Quick response without warming up
- Low voltage function display
- Automatic shutdown function optional
- Auto-off backlight function optional
- New user self-calibration function
- Log power (dBm) and linear power (xW) index measurement
- Large screen and LED backlight display

Technical Parameters:
- Power measurement range: TL550C: -50 to +26 dBm
- Wavelength measurement range: 800~1700 nm
- Calibration wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm
- Probe type: For InGaAs
- Measurement accuracy: <±3% (-10dBm, 22℃)
- Display resolution dB Linear display: 0.1%, logarithmic display: 0.01dBm
- Working temperature: -10 to +50℃
- Storage temperature: -20 to +70℃
- Relative humidity: 90% (+30℃), non-condensing
- Optical interface: FC, SC (optional for ST LC)
- Automatic shutdown time: 10 min
- Dimensions: 158 x 82 x 29 mm
- Weight: 160 g

Package Included:
- 1 x Set of Optical Power Meter

Note: Batteries are not included. 2 AA batteries are recommended.
