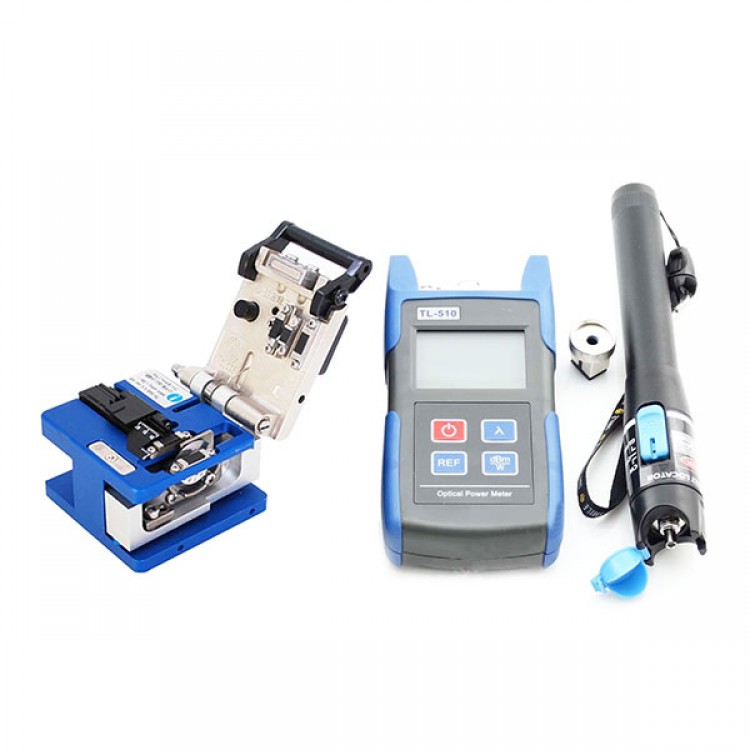

Optical Power Meter TL510+ FC-6S Fiber Cleaver +TL532 Fiber Cable Tester 10km
Item Description:
1. Fiber Optical Power Meter -50~+26 dBm
|
Wavelength(nm) |
(800nm to 1650nm ) |
|
Detector |
InGaAs |
|
Measurement Range (dBm) |
-50~+26 |
|
Calibrated Wavelength(nm) |
850,1300,1310,1490,1550,1625 (more calibrated wavelength can be optional) |
|
Resolution(dB) |
Linear 0.1% or Non-linear 0.01dBm |
|
Connector |
SC, FC,ST/ Universal 2.5mm adaptor |
|
Power Supply |
3pcs AAA batteries |
|
Battery Operating Time |
240 h with 1.5V Battery(3) |
|
Operating Temperature(oC) |
_ 10 ~ +50 |
|
Storage Temperature(oC) |
_ 20 ~ +70 |
|
Working hours |
>120 hours ( without backlight |
|
Relative Humidity |
90% (+30oC ) |
|
Weight |
200 g |
2. FC-6S Fiber Cleaver
Features:
• Provides approximately 36,000 cleaves
• Compact body& light weight
• High Precision Cleaves
• 250um Coated or 900um Buffer fiber
• Singlemode or Multimode Use
• 12 Position Rotatable and Replicable Blade
Specifications:
|
Model |
SUMITOMO FC-6S |
|
Applicable fibers |
Singlemode or Multimode Use |
|
Fiber Diameter |
125um |
|
Coating Diameter |
250um ~ 900um |
|
Typical Cleave Angle |
0.5 Degrees |
|
Cleave Length |
9 - 16mm (Single Fiber - 0.25mm Coating) |
|
Blade Life Time |
36,000 cleaves (3,000 per blade position) |
|
Cleaver Dimensions |
63 x 65 x 63mm |
|
Weight |
475g |
3. TL532 10mW Visual Fault Locator Fiber Optic Cable Tester Meter:
|
Type |
TL532 Pen-type Visual Fault Finder |
|
Central Wavelength |
650nm+-10nm (635nm can be required on request) |
|
Emitter Type |
FP-LD |
|
Output Power |
10mW |
|
Optical Connector |
2.5mm universal connector for test different ST, SC, FC interferes |
|
Operating Model |
Both CW and Pulse available |
|
Pulse Frequency |
2~3Hz |
|
Power Supply |
2 AAalkaline batteries |
|
Battery Operating Time |
650nm 1mw >65hour 650nm 3mw>50hour 650nm 10mw>15hour Test with Panasonic LR6AAALKALINE battery |
|
Operating Temperature |
-10~+45 (oC) |
|
Storage Temperature |
-40~+70 (oC) |
|
Dimension (mm) |
15X180 |
|
Weight |
200g(Without battery) |
