Optical Time Domain Reflectometer Kit OTDR Tester OPM OLS VFL IOLM TMO350-S-AB35 (1310/1550/1625NM)

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,729.32
  • Price in reward points: 17293 Reward Points: 173
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,694.73 $1,660.15 $1,608.27 $1,539.09 Contact US
Quantity:

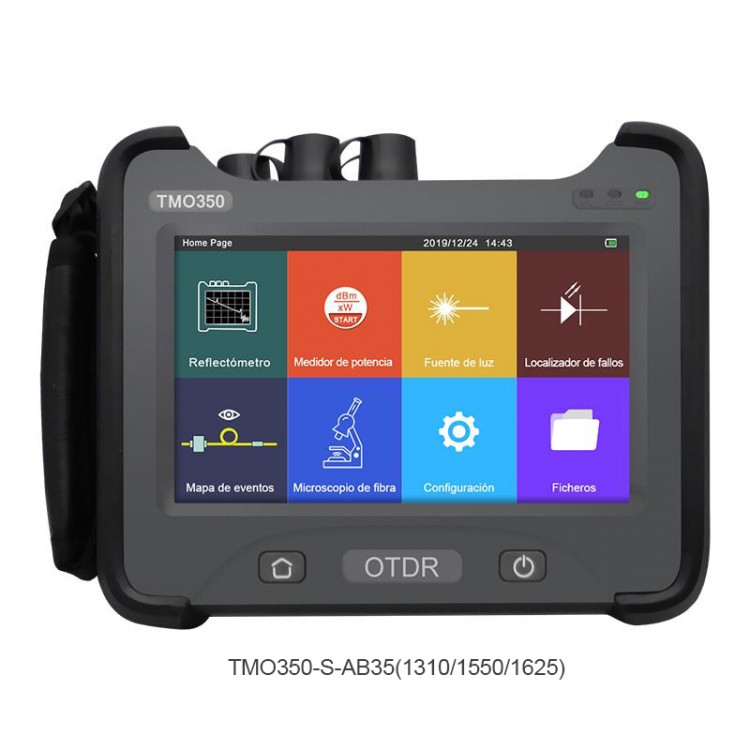

Optical Time Domain Reflectometer Kit OTDR Tester OPM OLS VFL IOLM TMO350-S-AB35 (1310/1550/1625NM)

Introduction:

TMO350 series Optical Time Domain Reflectometer(OTDR) is the new generation of intelligent meter for the detection of fiber communications systems. With the popularize of optical network construction in cities and countrysides, the measurement of optical network became short and disperse,TMO350 is specially designed for that kind of application, its economic and also have outstanding performance.

Features:
- Integrated design, smart and rugged.
- Small and light, easy to carry.
- 1625nm online detection module with filter is available as an option for an online FTTx/PON detection.
- Multi-measuring mode, simple to use, finish measurement by just one button.
- Realtime measuring function, convenient to monitor the splicing process.
- Internal large power visual laser source for accurate positioning the closer fault point.
- Internal -5dBm stable laser source.
- Warning function could prevent module of OTDR damaged by optical signal.
- Integrated with 2 main USB and one sub-USB port, for controlling by PC or connect external instrument.
- Support Chinese and English input, friendly interface, analog keyboard capable.
- Integrated with 8G internal memory. Storage more than 80000 groups curve.
- Provide data simulation software to process, generate and print report.
- Battery indicate function.
- Long working hours for outdoor operation
- Fiber Microscope (x400) –Optional
- IOLM Function
- Visual Fault Locator function
- Optical Power meter function
- Optical Light Source function

Specifications:
- Type: TMO350-S-AB35
- Testing wavelength: 1310/1550/1625NM
- Dynamic range: 35/33/33DB

Other Parameters:


Applications:
- Measure the loss of splicing points, optical connectors and adapters.
- Measure the loss of single fiber or cable.
- Measure the length of cable, set different refractive index for various fibers.
- Locate the position of broken point, Optical connector and adapter.
- Measure the discrete reflection ratio between SR points.
- Measure return loss for whole fiber circuit including connecting points and s points.

Package Included:

- 1 x Set of OTDR
