ORBBEC Femto Bolt 1MP 4K iToF 3D Camera Depth Camera RGB Camera Replacement for Azure Kinect DK

ORBBEC Femto Bolt 1MP 4K iToF 3D Camera Depth Camera RGB Camera Replacement for Azure Kinect DK

Description:

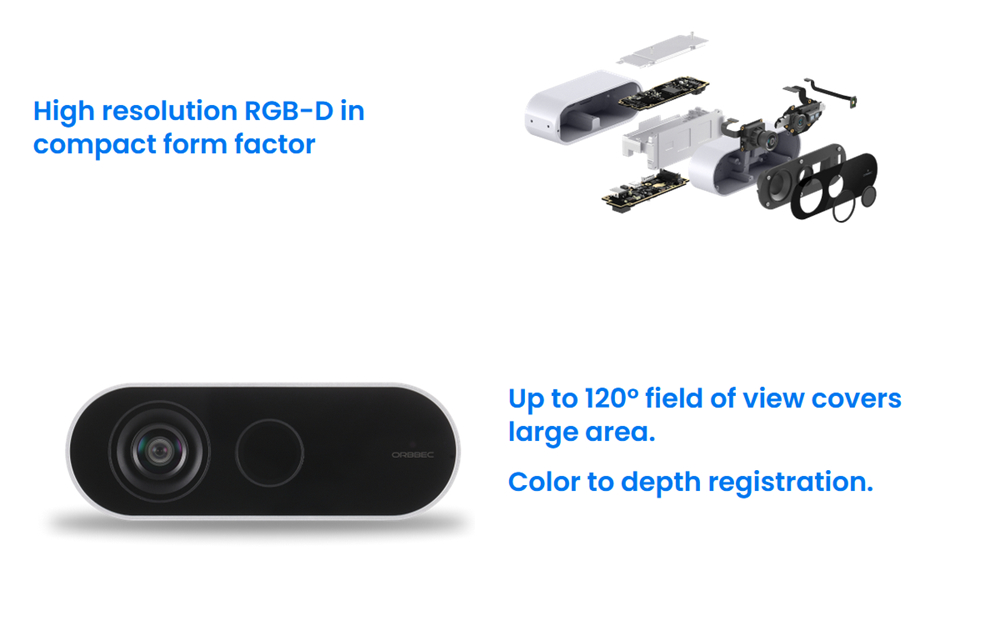

Femto Bolt is a compact, high-performance device with multi-mode Depth and RGB cameras and USB-C connection for power and data. The depth camera uses Microsoft's industry-proven ToF technology and has identical operating modes and performance as the cameras for Microsoft Azure Kinect and Orbbec Femto Mega. Its versatility and price makes it attractive for Al-developers for 3D vision applications.

Performance and Programmability
- High resolution and high accuracy across a wide range of operations.
- Wide Field of View covers large area.
- HDR (High Dynamic Range) function preserves details.
- Easy camera setup with a rich set of APIs for various applications.

Ease of use for AI Developers and Commercial Applications
- Depth and RGB cameras and IMU in a single device.
- Combined data and power with USB-C 3.2 connection.
- High precision synchronization trigger control.

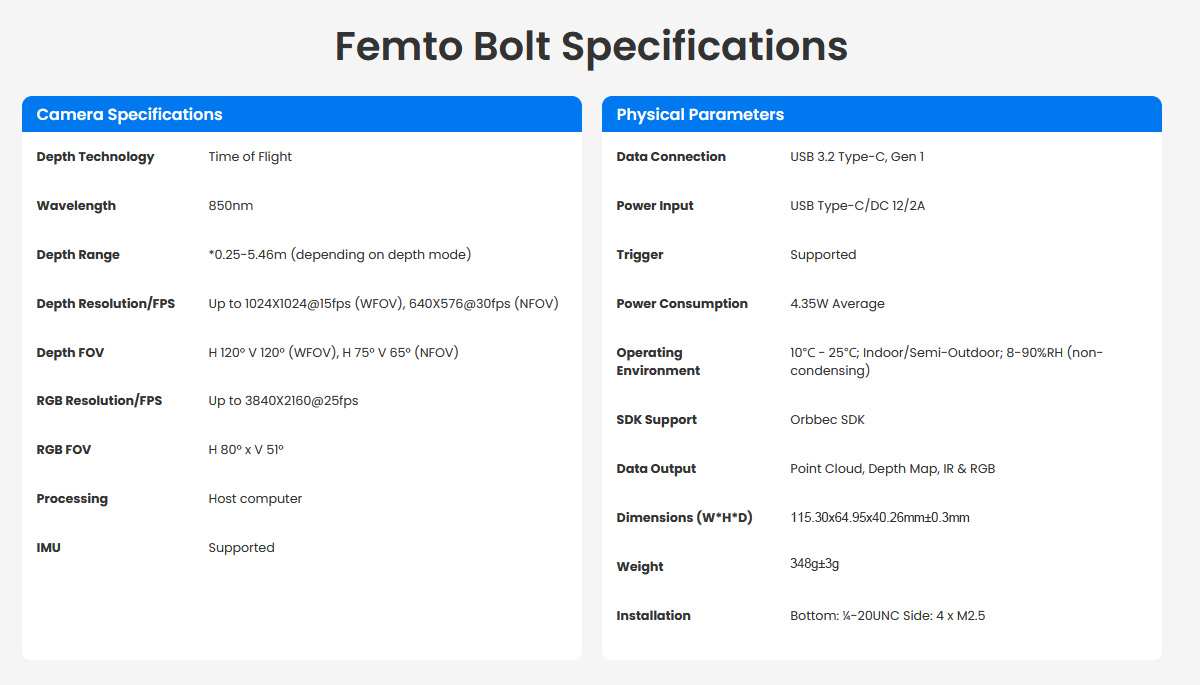

Features:
- Depth camera with 1 Mega Pixel ToF sensor and 120° FOV
- Up to 15fps at 1024x1024 or 30fps at 640x576 depth resolution
- 4K RGB with HDR
- 6DoF IMU
- USB Type-C 3.2 for power and data
- Sophisticated and accurate synchronization trigger control for multi-sensor network

Applications:
- Dimensioning: Femto Bolt can provide accurate and precise measurements of package dimensions, improving logistics and shipping accuracy.
- Cobot: Femto Bolt enables Collaborative Robots (Cobot) to respond to human commands, gestures and interact safely with human intuitively. Accurate and precise object detection and tracking enable cobots to work safely and efficiently alongside human workers.
- Bin Picking: Femto Bolt can detect and locate objects in a bin or moving belt with high precision, making it easier for robotic arms to pick up the objects accurately.
- Body Scan: A 3D camera-based whole-body scan provides a comprehensive overview of a person's health and body composition, enabling ongoing monitoring and tracking overtime.

Package Included:
- 1 x Set of camera

FAQ: for developers using Azure Kinect Developer Kit
1. What are the differences between the Femto Bolt and the Developer Kit for Azure Kinect?
Femto Bolt achieves a more compact form factor for easy mounting. The depth camera modes and performance are identical to Azure Kinect Developer Kit. The color camera has also been enhanced with HDR support. A sophisticated trigger sync mechanism has been implemented for multi-sensor and multi-camera networks. The microphone array has been eliminated.

2. What changes do l need to make to run my SW application with Orbbec's devices?
Femto Bolt and Mega offer identical depth camera operating modes and performance as the Azure Kinect Developer Kit. By utilizing the Azure Kinect Sensor SDK Wrapper from Orbbec SDK, applications that were originally designed for the Azure Kinect Sensor SDK can effortlessly switch the support to Orbbec cameras. To facilitate testing, users can access Orbbec Viewer and k4aviewer (part of Azure Kinect Sensor SDK Wrapper from Orbbec SDK) on Orbbec website as a simple click-and-run tool for camera testing.

3. How can l use Orbbec devices in a multi-camera solution?
The Femto Bolt and Femto Mega products feature an 8-pin sync system for a multi-sensor network with the flexibility of designating a camera or an external sensor as the primary. Azure Kinect Developer Kit users can use the VSYNC_IN and VSYNC_OUT pins to connect to the audio cable used for sync trigger.

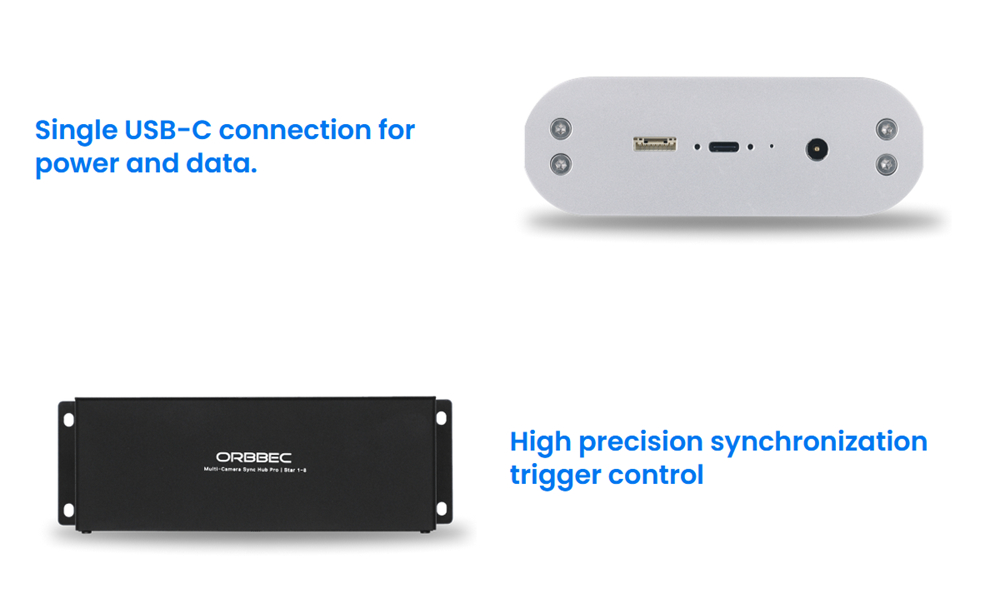

Orbbec's multi-device sync trigger hub is an ingenuous design using RJ45 sockets for readily available CAT-5 (or better) Ethernet cables to allow accurate triggering over longer distance and with option of switching trigger levels between 1.8V, 3.3V or 5V.

4. Can l use Orbbec's Femto Mega and Femto Bolt devices with Microsoft Body Tracking SDK?
Femto Bolt and Mega offer identical depth camera operating modes and performance as the Azure Kinect Developer Kit. By utilizing the Azure Kinect Sensor SDK Wrapper from Orbbec SDK,  applications such as the Microsoft Body Tracking SDK that was originally designed for the Azure Kinect Sensor SDK, can be run on Orbbec Femto Bolt and Femto Mega devices. Orbbec does not offer support for the Microsoft Body Tracking SDK.
