Orbit Barcode Scanner Handsfree 1D Barcode Scanner Wired 20 Laser Lines 1500 Lines/s w/ 2M USB Cable

Availability: In stock, usually dispatched in 1 business day

  • Price:$82.15
  • Price in reward points: 822 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $80.51 $78.86 $76.40 $73.11 Contact US
Quantity:

Orbit Barcode Scanner Handsfree 1D Barcode Scanner Wired 20 Laser Lines 1500 Lines/s w/ 2M USB Cable

Features:

- 32Bit Dual Chip Decoding CPU: Excellent decoding capability at fast speed.
- Omnidirectional Scanning: 20 Laser Lines / 5 Scanning Direction / All-Around Scanning.
- High-Speed Decoding: Amazing scanning speed 1500 lines/sec.
- Superb Depth of Field: 0-200mm @ (UPC/EAN 100%, PCS90%).
- USB Driver-Free: USB wired connection. Plug to play. No need for any driver of software. Support for Windows systems with drive.
- Single Line Scanning Function: It is user-friendly to scan dense bar code. Switch between single-line/full-line scanning mode by pressing button.
- High Precision: The decoding accuracy stands at 5mil.
- High Integration: The latest programming technology enables high integration level and low failure rate, using less independent component parts.
- Easy Setting: Enter into settings - Scan setup code - Exit.
- Auto Recognition: Auto recognition of inverse-color bar code. No settings needed.
- Anti-Scratch Window Diaphragm: Imported material makes it against scratches for long-timer application.
- Clear Speakers Sound: Speakers generate prompt sound.
- Military Grade Quality: Every part and every product have passed strict quality tests.
- Aging Test: Every scanner has passed 72-hour aging test and practical tests before delivery.
- Code Error Rate Test: It has passed 5,000,000 times of tests without code error.
- Mute Motor: Made in Taiwan and passed dynamic balance tests, the precise motor operates quietly.
- Independent Intellectual Property Rights: The product acquires independent intellectual property rights from the appearance, hardware and software.
- Full Color LED Indicator: Full color LED indicator light shows you different operating states.
- Easily Assembled Port: No any tool is needed to assemble and disassemble the scanner.

Performance Parameters:
- Light Source: 650nm Laser Diode
- Scanning Depth of Field: 0-200mm @ (UPC/EAN 100%, PCS=90%)
- Scanning Speed: 1500 lines/sec
- Scanning Accuracy: 5mil
- Scanning Modes: Full-Line Scanning (20 Lines & 5 Direction), Single-Line Scanning; Sleeping & Wake-up
- Printing Contrast: >25% (UPC/EAN 100%)
- Scanning Angle: Inclination Angle: 45°. Elevation Angle: 45°
- Code Error Rate: < 1/5,000,000
- CPU Performance: 32-Bit Dual CPU with Superb Decoding Capability
- LED Indicator: Power-on: Full Color. Standby: Green. Decoding: Red. Setting State: Blue. Editing State: Blue.
- Sound: With speakers
- Communications Ports: USB, RS232
- Decoding Capacity: 1D: UPC-A, UPC-E, EAN-13, EAN-8, CODE39, Interleaved 2 of 5, Industrial 2 of 5 Code, Matrix 2 of 5 Code, CODABAR, CODE128, CODE93, CODE11, MSI and China Post Code

Physical Parameters:
- Scanner Weight: 284g
- Cable Length: USB Cable 2.0m. RS232 Cable 2.0m
- Color: Black

Power Supply Parameters:
- Input Voltage: DC 5V±10%
- Operating Current: 265mA
- Standby Current: 255mA

Environmental Parameters:
- Operating Temperature: 0℃ to 50℃
- Operating Humidity: 5% to 95% (No condensation)
- Storage Temperature: -20℃ to 60℃
- Environmental Illumination: 0-4,000 Lux (Fluorescence). 0-100,000 Lux (Sunlight)

Safety Regulations:
- Electrical Safety: CE EN55022 Class B, EN55024 Class B, FCC Part 15 Class B
- Laser Safety: IEC 60825-1: Class 1
- Anti-Shock Capacity: It still works normally after dropping from 1.2 height to concrete ground

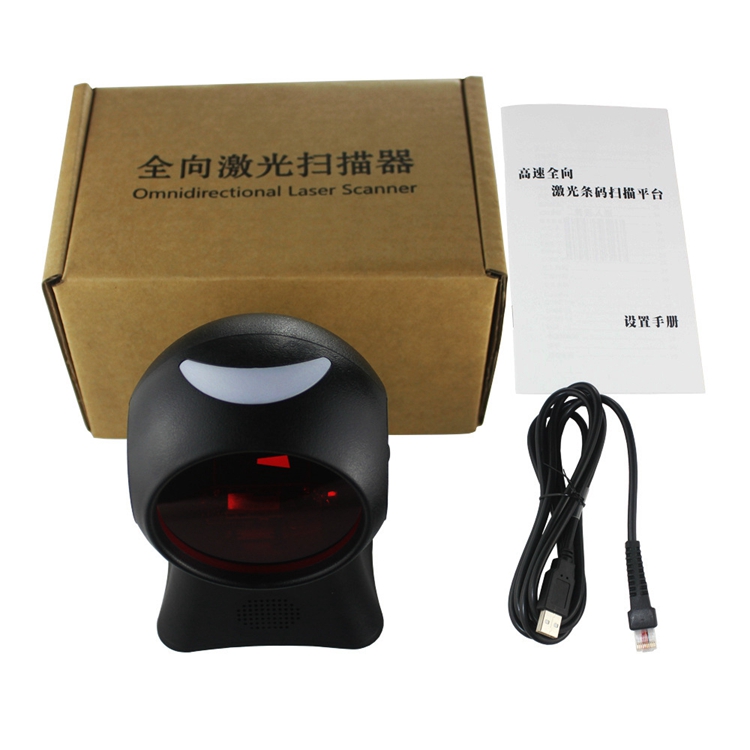

Package Included:
