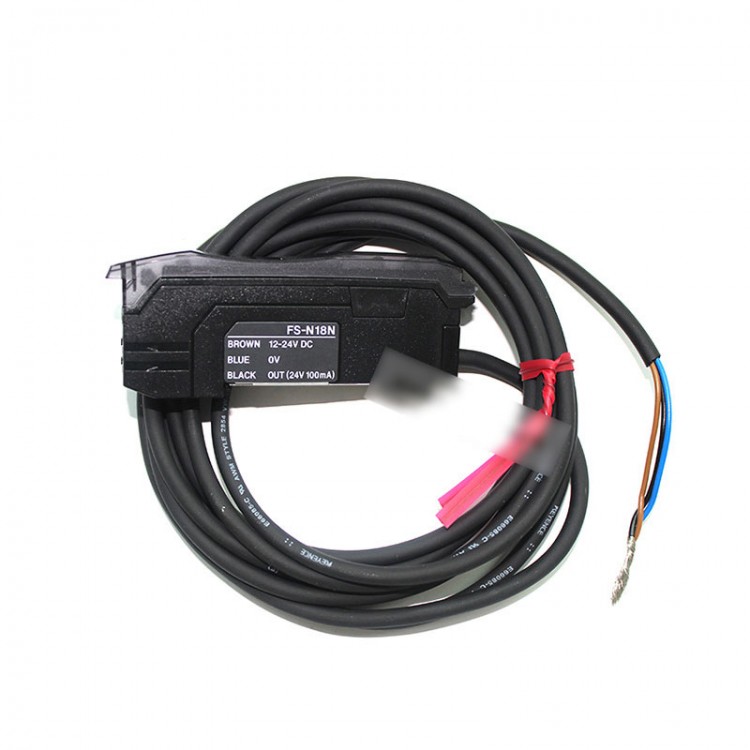

Original New High Quality Sensor FS-N18N Digital Display Optical Fiber Amplifier 1-Channel NPN Output DC24V
Specification:
- Model: FS-N18N
- Type: standard 1-channel output cable
- Output type: NPN
- Main unit/expansion unit: main module (can not be expanded)
- Controlling output: 1-channel output, NPN 24V or lower, maximum current 100mA or lower, residual voltage 1V or lower
- Output switch: Light-ON/Dark-ON switch
- Light source: red 4 elements LED (wavelength: 630nm)
- Timer function: timer close, disconnect delay, start delay, single shot
- Response time: 50us (high speed) / 250us (fine) / 500us (turbo) / 1ms (super) / 4ms (ultra) / 16ms (mega)
- Anti-interference unit number: 0 (interference prevention function is not supported)
- Size: H x W x L = 30.3 x 9.8 x 71.8mm
- Expansion unit: not supported
- Circuit protection: reverse connection protection, over-current protection, surge protection
- Rated power voltage: 12 - 24VDC±10%, ripple (P-P) 10% below
- Current consumption:
Normal: maximum 630mW (max.26mA for 24V; max.34mA for 12V)
Energy saving mode (AII): maximum 560mW (max.23mA for 24V; max. 28mA for 12V); increasing 100mW (4.0mA) for high speed mode
Full energy saving mode: maximum 380mW (max.15mA for 24V; 19mA for 12V)
- Illumination:
Incandescent lamp: 20000 lux or lower
Fluorescent lamp: 30000 lux or lower
- Environmental temperature: -20 ~ +55℃ (non-condensing) for one or two modules that are tightly connected; -20 ~ +50℃ for 3 to 10 modules; -20 ~ +45℃ for 11 to 16 modules
- Note: All temperature regulations apply to the module DIN rail assembly method and installation to metal plates.
- Relative humidity: 35 ~ 85%RH (non-condensing)
- Seismic resistance: 10 - 55Hz; dual amplitude 1.5mm; 2 hours each for X, Y, Z directions
- Impact resistance: 500m/s², 3 times each for X, Y, Z directions
- Case material: polycarbonate
- Weight: about 75g
Package Included:
- 1 x Optical Fiber Amplifier
