Original SATLINK WS-6916 DVB-S S2 HD Satellite Finder Meter with MPEG-2 MPEG-4

Original SATLINK WS-6916 DVB-S S2 HD Satellite Finder Meter with MPEG-2 MPEG-4

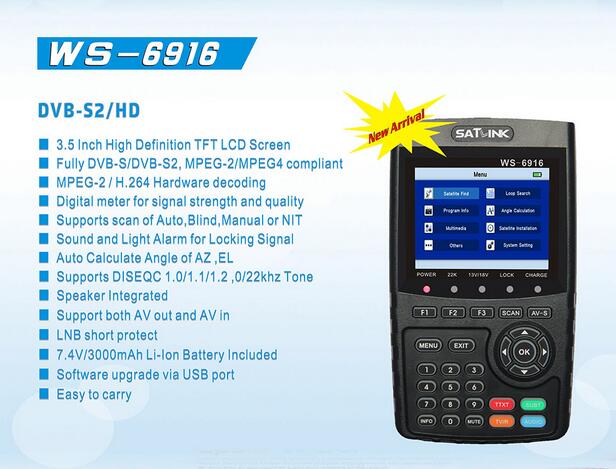

Features:
- 3.5 Inch High Definition TFT LCD Screen
- Fully DVB-S/S2, MPEG-2/MPEG4 compliant
- MPEG-2 / H.264 Hardware decoding
- Digital meter for signal strength and quality
- Supports for multiple TP detection
- Supports scan of Auto,Blind,Manual orNIT
- Sound and Light Alarm for Locking Signal
- Auto Calculate Angle of AZ ,EL
- Supports DISEQC 1.0/1.1/1.2 ,0/22khz Tone
- Speaker Integrated
- Support both AV out and AV in
- Supports HDMI out
- LNB short protect
- 7.4V/3000mAh Li-ion Battery Included
- Software upgrade via USB port
- Easy to carry

Specification:

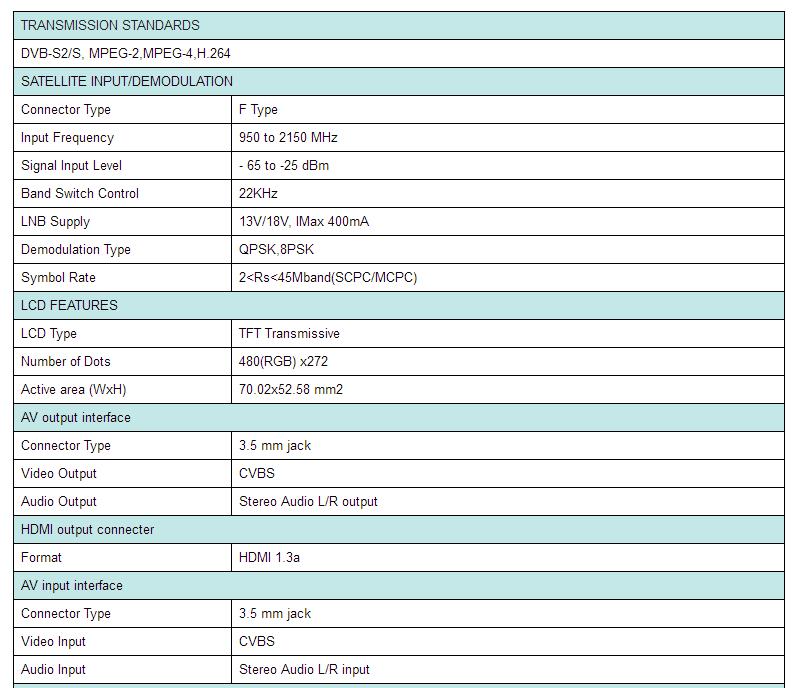

- TRANSMISSION STANDARDS
DVB-S2/S, MPEG-2,MPEG-4,H.264
- SATELLITE INPUT/DEMODULATION
Connector Type:F Type
Input Frequency:950 to 2150 MHz
Signal Input Level:- 65 to -25 dBm
Band Switch Control:22KHz
LNB Supply:13V/18V, IMax 400mA
Demodulation Type:QPSK,8PSK
Symbol Rate:2<Rs<45Mband(SCPC/MCPC)
- LCD FEATURES
LCD Type:TFT Transmissive
Number of Dots:480(RGB) x272
Active area (WxH):70.02x52.58 mm2
- AV output interface
Connector Type:3.5 mm jack
Video Output:CVBS
Audio Output:Stereo Audio L/R output
- HDMI output connecter
Format:HDMI 1.3a
- AV input interface
Connector Type:3.5 mm jack
Video Input:CVBS
Audio Input:Stereo Audio L/R input

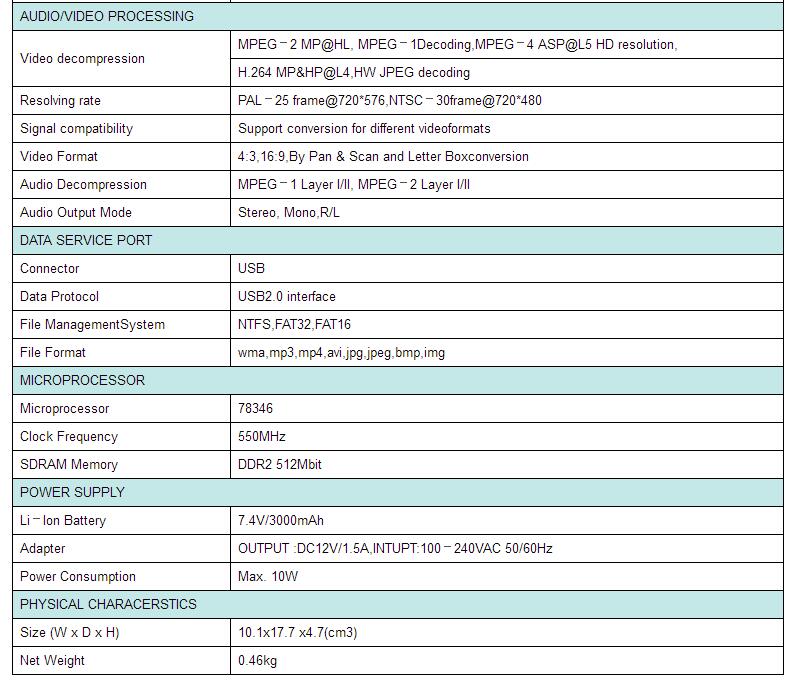

- AUDIO/VIDEO PROCESSING
Video decompression:MPEG‐2 MP@HL, MPEG‐1Decoding,MPEG‐4 ASP@L5 HD resolution;H.264 MP&HP@L4,HW JPEG decoding
Resolving rate:PAL‐25 frame@720*576,NTSC‐30frame@720*480
Signal compatibility:Support conversion for different videoformats
Video Format:4:3,16:9,By Pan & Scan and Letter Boxconversion
Audio Decompression:MPEG‐1 Layer I/II, MPEG‐2 Layer I/II
Audio Output Mode:Stereo, Mono,R/L
- DATA SERVICE PORT
Connector:USB
Data Protocol:USB2.0 interface
File ManagementSystem:NTFS,FAT32,FAT16
File Format:wma,mp3,mp4,avi,jpg,jpeg,bmp,img
- MICROPROCESSOR
Microprocessor:78346
Clock Frequency:550MHz
SDRAM Memory:DDR2 512Mbit
- POWER SUPPLY
Li‐Ion Battery:7.4V/3000mAh
Adapter:OUTPUT :DC12V/1.5A,INTUPT:100‐240VAC 50/60Hz
Power Consumption:Max. 10W
- PHYSICAL CHARACERSTICS
Size (W x D x H):10.1x17.7 x4.7(cm3)
Net Weight:0.46kg

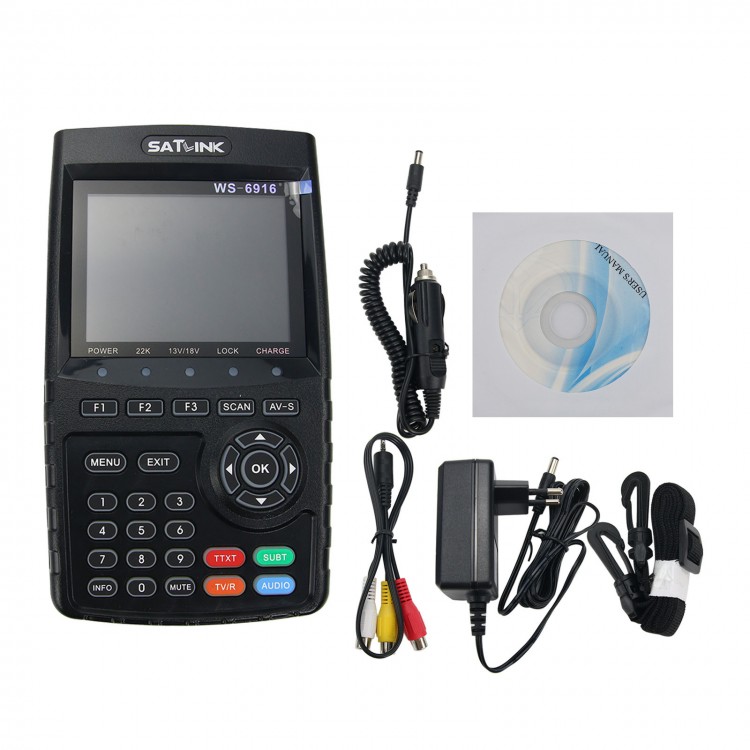

Package Included:
- 1 x WS-6916 HD Satellite Finder Meter
- 1 x 12V Car charger cable
- 1 x 12V Power Charger (US/EU/UK/AU Plug)
- 1 x Carrying case
- 1 x Neck Strap
- 1 x AV cable
