OSSC Open Source Scan Converter HDMI-compatible Adapter for Retro Game Consoles PS2/SEGA/Saturn

OSSC Open Source Scan Converter HDMI-compatible Adapter for Retro Game Consoles PS2/SEGA/Saturn

Description:
The Open Source Scan Converter is a low-latency video digitizer and scan converter designed primarily for connecting retro video game consoles and home computers to modern displays. It converts analog RGB or component video signals into a digital format, and doubles (or triples) the scanlines of a single frame if necessary to generate a valid mode for digital TVs or monitors.

Features:
- Detection and digitization of various analog SDTV/EDTV/HDTV/PC modes
- Line double support for 240p, 480i, 288p, 576i, 384p, 480p, 576p
- Line3x/4x/5x support for 240p/288p with different sampling modes
- Very low latency (less than 2 input scanlines), Don't worry about blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades.
- Fast "de-interlace" for 480i/576i and 960i/1080i
- Fast recover from input video mode change (e.g. 240p<->480i)
- All video processing done in RGB domain - no conversion to YCbCr
- Video and sync LPF for less-than optimal input signals
- Multiple inputs supporting various formats (see below)
- Full-range 24-bit RGB output through DVI/HDMI-compatible
- Emulated scanlines with configurable strength and position
- Configurable mask for over-scan area
- Selectable sampling configuration for 480p input: DTV-480p or VGA 640x480
- Selectable CSC configuration for YPbPr source: Rec. 601 or Rec. 70

Advantages:
Excellent picture and sound quality on a HDMI-compatible PC monitor or TV
- No blurry graphics, interlaced jams, and higher input lags, and no painstaking upgrades. Convert VGA to DVI /HDMI-compatible. Connect Dreamcast directly to the unit and enjoy HDMI-compatible processing for all games.

Process (line doubles) retro game with no input delay
- Support for 240p, 480i, 288p, 576i, 384p, 480p, 576p. Unlike other scalers, such as the XRGB Mini, OSSC works on a single scan line instead of one frame at a time, which means there is no input delay. Convert SCART and Component to DVI / HDMI-compatible.

Eliminates ugly de-interlacing artefacts and bad scaling
– When connects retro consoles to your TV, this product converts the image into a 480p or 720p (where compatible) image that is correctly displayed and processed. EVERY special effect, from 240p drop shadows to striped sprites, is rendered correctly.

Converts SCART and Component to HDMI-compatible
- For example, feed in a 480p component video signal from a Wii and get out a perfectly processed 480p HDMI-compatible or DVI (with a simple adapter) image. The quality is flawless!

Convert VGA to HDMI-compatible
- For example, connect a Dreamcast directly to the unit and enjoy HDMI-compatible processing of all your games, not just those that support 480p.

Convert analogue audio to digital HDMI-compatible
- Analogue audio from your retro games console will be converted to digital audio and injected into the HDMI-compatible/DVI output (requires compatible TV, processor or AV receiver. Analogue audio output is still available for setups where this is required).

Could be used in almost all over the world
- Voltage AC 110V-220V.Go with plug adapters for USA, UK, Australia and Europe.

Easy to use
- Plug and play. Go with very detail user manual and we provide technical support and professional customer service. Worry free to buy !

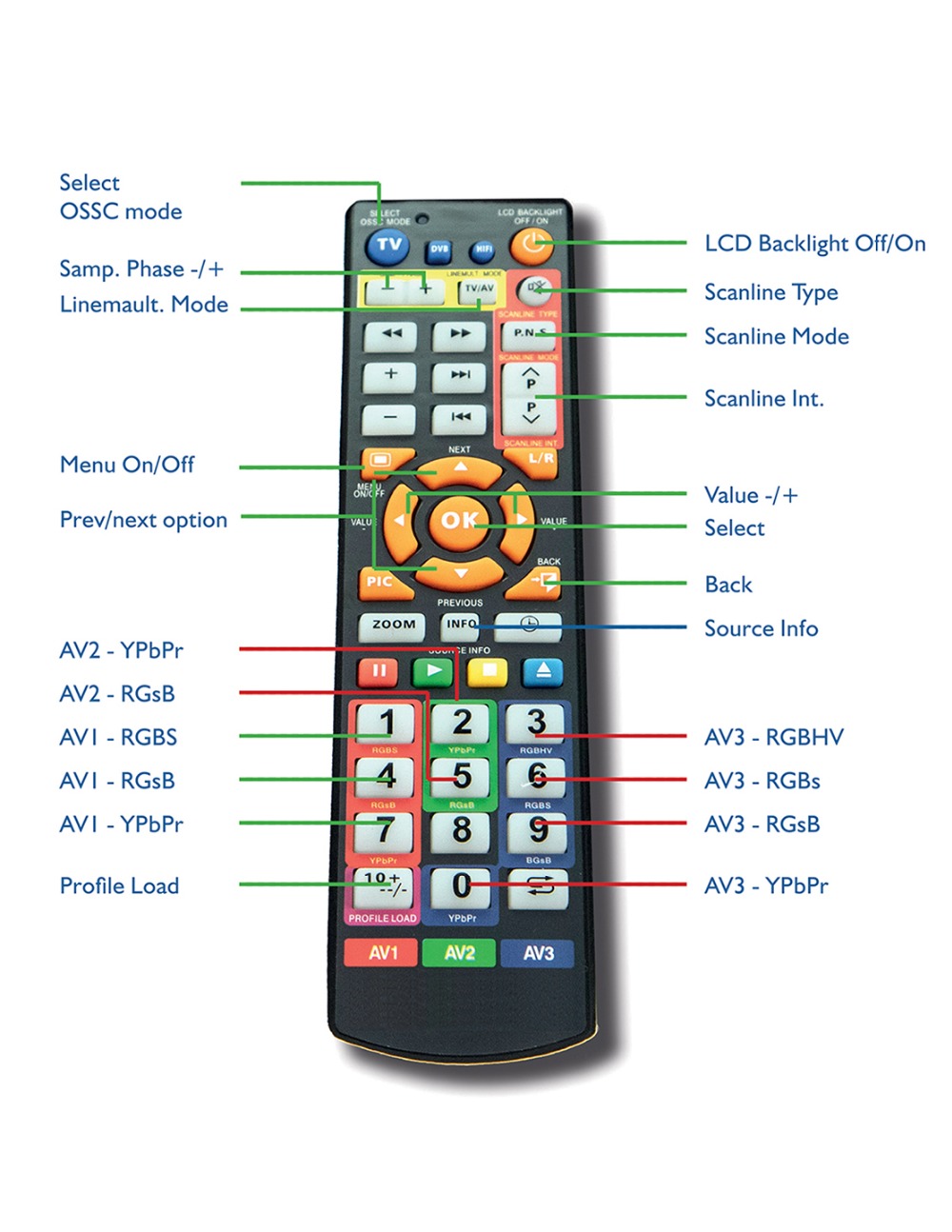

- Variety settings available in the remote controller, satisfy need of game players at all levels.

Supported Inputs/Outputs resolutions:
* 240p/288p -> 480p/576p or 720p line triple (compatible displays only)
* 240p/288p -> 1280×960, 1280×1152, 1080p, 1600×1200 line quadruple/quintuple (compatible displays only)
* 25Khz medium-res modes -> 480p
* 480i/576i -> 480p/576p or pass-through
* 480p -> pass-through or 960p line-double (compatible displays only)
* All other 31khz resolutions passed through

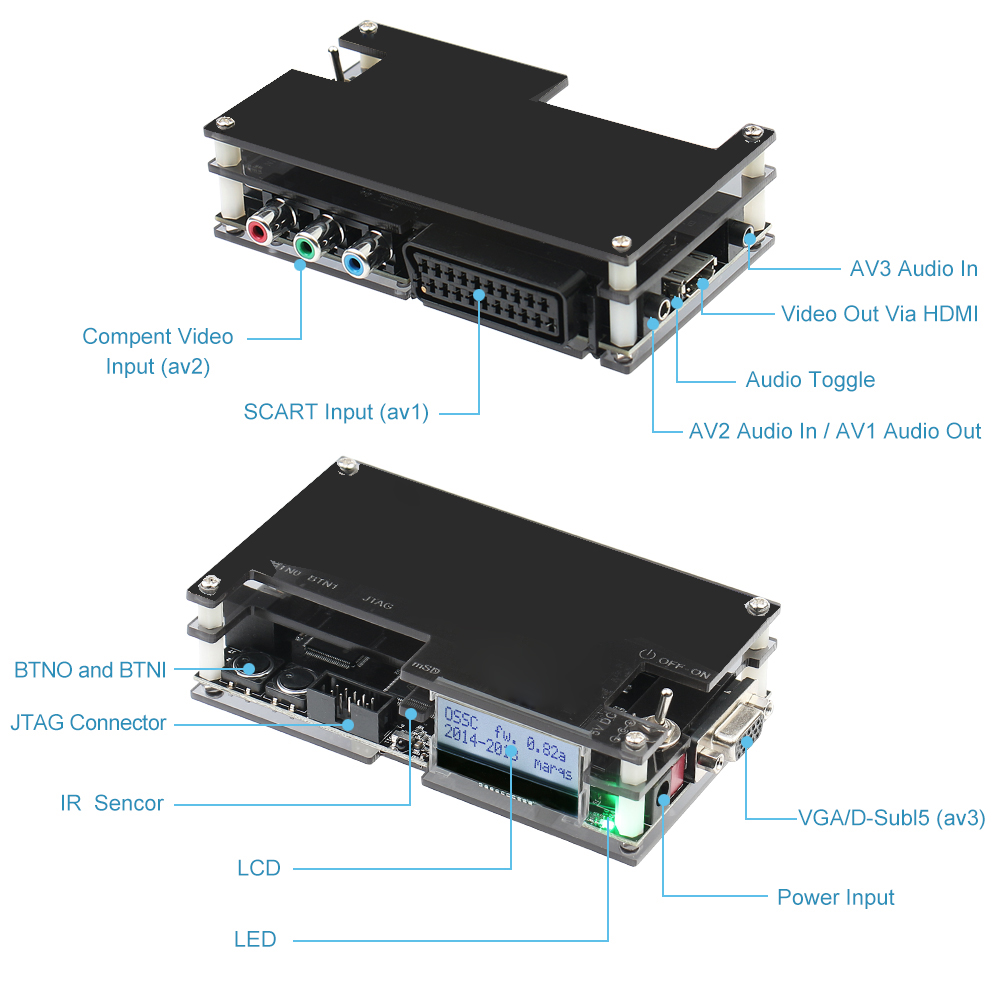

Inputs:
* 1 x SCART – Supports RGBs (clean csync, cvideo sync, luma sync), RGsB, Ypbpr
* 1 x Component video – Supports Ypbpr and RGsB signals
* 1 x D-SUB15 (VGA) – Supports RGBHV, RGBs, RGsB, Ypbpr
* 2 x 3.5mm analogue audio – Supports all analogue audio. Input 1 can be toggled between output (from AV1/SCART) or input

Outputs:
* 1 x HDMI-compatible or DVI-D (with adapter) (digital only,including audio). Full-range 24-bit RGB output through DVI/ HDMI-compatible
* 1 x Analogue audio 3.5mm (input/output toggle)

Support Console:
Retro Home Consoles:
- For Atari 2600
- For Atari 5200
- For Atari Jaguar
- For Microsoft Xbox
- For Microsoft Xbox 360
- For NEC PC Engine
- For Nintendo 64
- For Nintendo NES / Famicom
- For Nintendo Gamecube
- For Nintendo Super NES / Super Famicom
- For Nintendo Wii
- For Sega Dreamcast
- For Sega Genesis / Mega Drive
- For Sega Master System
- For Sega Saturn
- For SNK Neo Geo
- For Sony PlayStation
- For Sony PlayStation 2
- For Sony PlayStation Portable

Computers:
- For Atari 8-bit family
- For Commodore Amiga
- For Commodore 64
- For MGT Sam Coupé
- For MSX
- For Sinclair ZX Spectrum

Arcade Boards:
- For Capcom CPS-II
- For Data East Caveman Ninja Hardware
- For Irem M92
- For Nintendo Playchoice 10
- For Namco Gaplus
- For Sega Model 2
- For Seibu SPI
- For SNK Hal 21
- For SNK Neo Geo MVS
- For Sony ZN-1
- For Taito F2
- For Taito FX-1B
- For Taito F3
- For Toaplan V1
- For Toaplan V2

Package Included:
- 1 x HDMI-compatible Converter
- 1 x IR Remote
- 1 x Power Adapter
- 4 x Plug Adapter (UK/ EU/ AU/ US)

Note:
- AV video and S-Video are NOT supported and require an adapter/ transcoder.
