Product Description:

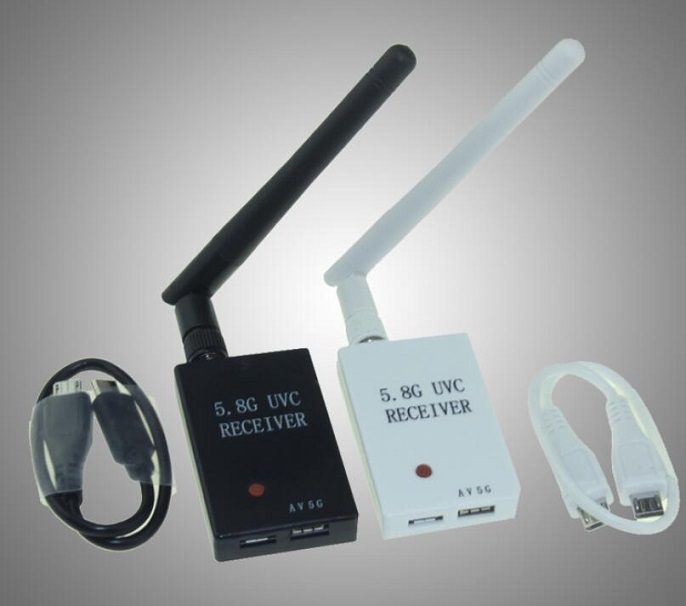

- This is a 5.8G receiver,the traditional is transferred to the screen,we are passed to the phone,and at the same time can be passed to the screen.Simplifying wiring and structure by using mobile phone power supply!! Coupled with powerful pocket FPV this app, embodies the VR flight!!!
- PS is currently testing Qualcomm and Samsung CPU mobile phone to support HUAWEI and MTK CPU mobile phone in addition to individual high-end models of all the basic does not support,if you do not know what mobile phone CPU also don't do,I won't tell you what is the mobile phone cpu.
- Warm reminder: more than ninety percent of HUAWEI mobile phone does not support,MTK CPU does not support,the actual phone or tablet also need to be tested in person to identify!! The following chart reflects the customer,only for reference.Accuracy ninety percent.
- Oppo and step by step some models need to set up in the OTG function to open the link.
- Support for all 5.8G image transmission!!
- Support AV output,audio output,there are reserved solder.
- Sail model of affection and dedication,support any flight control & any aircraft.
Specification:
- Using environment:in the open air,open-sided land,no interference
- Frequency range:5645MHz~5945MHz
- Resolution:640*480 30fps
- Operation current:USB 5V 190mA
- Operation temperature:-10~65℃

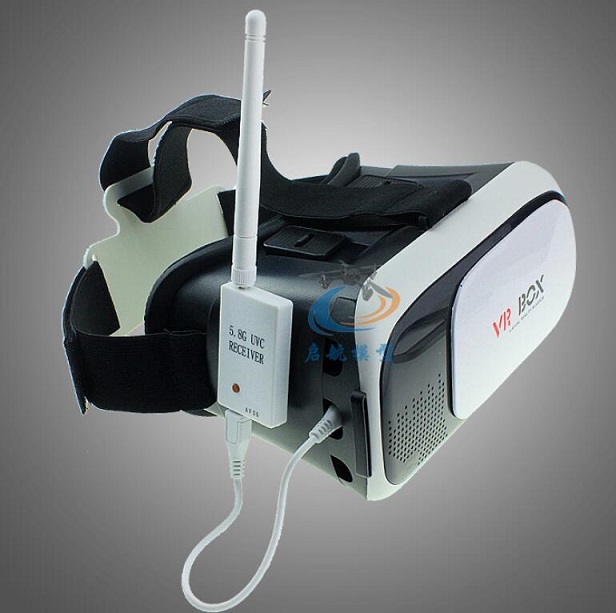

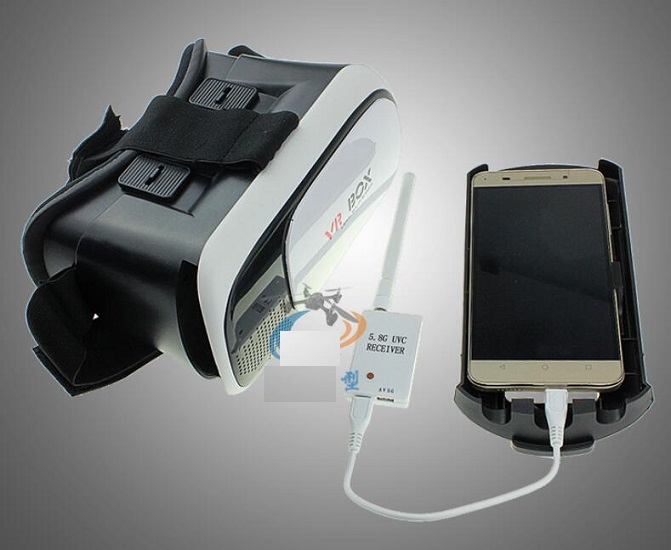

- Dual screen display on the mobile phone,put in VR glasses,you can enjoy the flight.
Question & Answers:
1. How far can you receive this receiver?
A:It's just a receiver.It's about a lot of factors! 200MW fly more than 10 kilometers,2W fly hundreds of meters are also a lot of people in. We don't do this! This is just a receiver just use the phone to see it,it will not reduce the increase because of the use of mobile phones.
2. Receiver how many MW?
A:The receiver doesn't have a radio frequency power.It can be equipped with our shop strongly recommended 600MW transmitter.Can also be equipped with any one of the 5.8G video transmitter on the market.
3. integration OSD ?
Answer: OSD is not on the sky!
Package List:

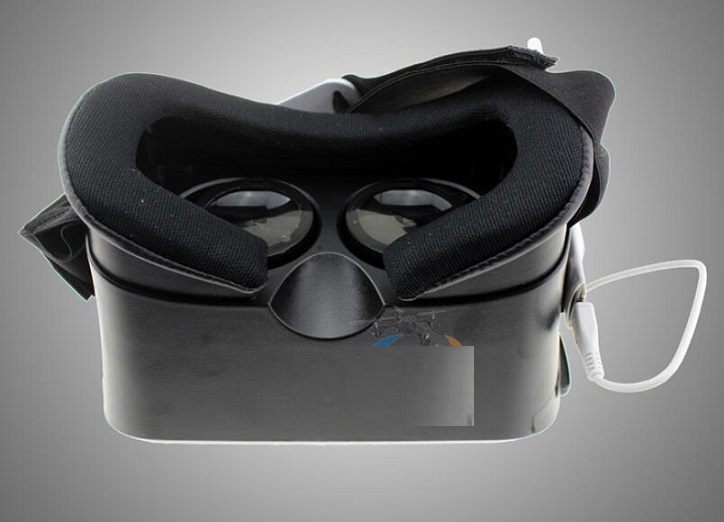

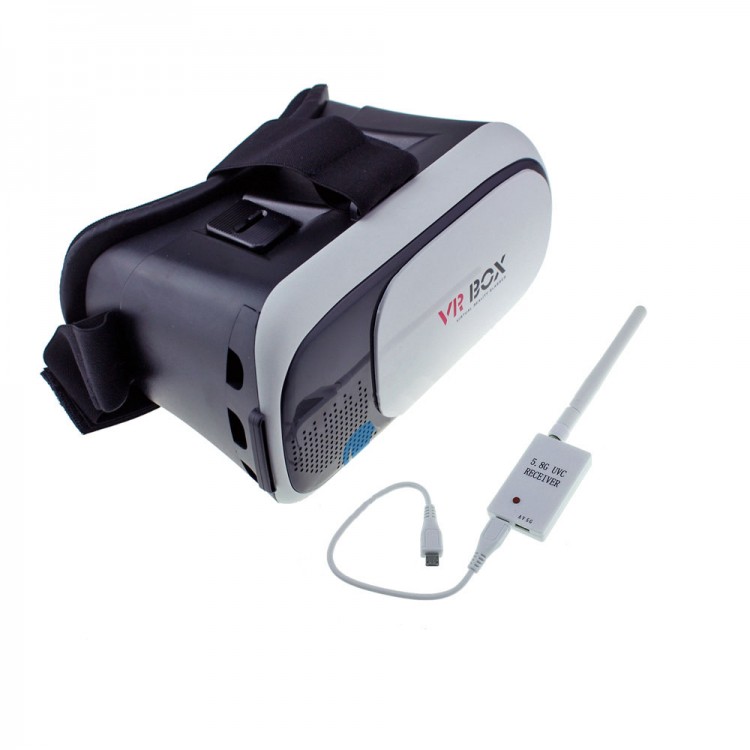

- 1 x OTG VR Box

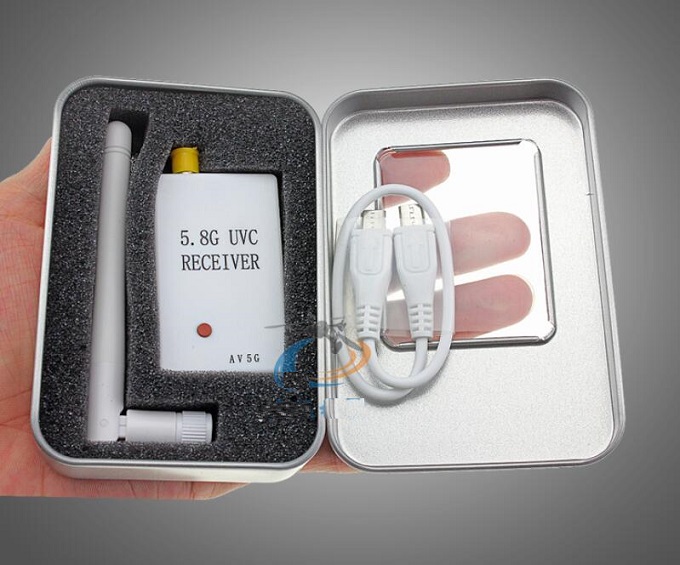

- 1 x 5.8G UVC Receiver
- 1 x USB cable
- 1 x User manual
