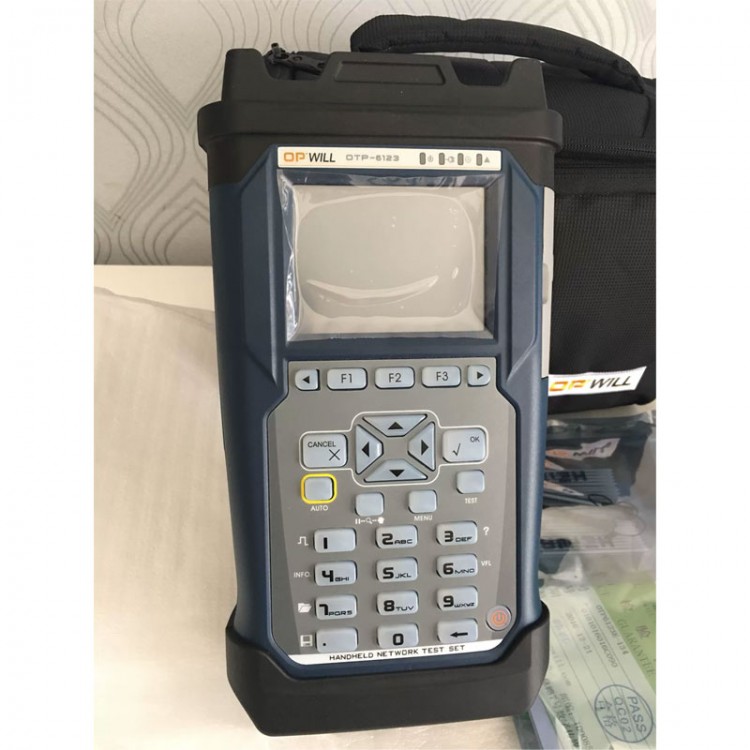

OTP6123L OTDR Tester Optical Time Domain Reflectometer Handheld Network Test Set for Network Test

OTP6123L OTDR Tester Optical Time Domain Reflectometer Handheld Network Test Set for Network Test

Features:
- OTP6123L is a handheld OTDR Tester
- Lightweight, compact and durable. It can be used outdoors due to shockproof structural design
- It is the best test tool for operators to verify optical networks in the construction phase or troubleshoot in the network operation phase
- Color touch screen of high resolution can clearly display even in places with strong optical fiber. It is easy to read and operate
- Simple and friendly buttons make it easy to detect the quality and fault location of optical fiber
- Cover all functions of the OTDR to meet the testing needs of different test scenarios
- It supports 1310nm and 1550nm wavelengths at the same time. The wavelengths can be automatically switched
- 38/42dB dynamic range is supported
- When the event dead zone is 0.3 m, and the attenuation meets 5m
- VFL red light is supported
- The longest test distance is 200KM. It can be used for optical fiber testing and application of metropolitan area network and access network

Specifications:
- Wavelength (nm): 1310/1550
- Dynamic range (dB): 38/42
- Pulse width (ns):3~20000
- Event dead zone (m): 1.6
- Attenuation dead zone (m): 10/10
- Linearity (dB/dB): ±0.03
- Loss threshold (dB): 0.01
- Loss resolution (dB): 0.001
- Sampling resolution (m): 0.125~1
- Sampling point: 256K
- Distance range (km): 200
- Typical real-time refresh (Hz): 0.03
- Memory capacity: 500 curves
- Distance uncertainty (m): ± (0.75 + 0.0010% x distance + sampling resolution)
- Measurement time: 10s~180m, user-defined
- VFL output power (dBm): +10

Physical Properties:
- Humidity: Operating temperature: -10°C to 50°C; Storage temperature: -40°C to 70°C
- Relative humidity: 0% to 95% (non-condensing)
- Dimensions: 80 x 135 x 250mm/3.1 x 5.3 x 9.8" (HxWxD)
- Weight: 1.1kg/2.4lb
- Battery: Lithium battery can last up to 8 hours according to the Bellcore TR-NWT-001138 standard

Package Included:
- 1 x Main unit
- 1 x Lithium battery
- 1 x Power adapter
- 1 x Power cable
- 1 x Disc
- 1 x Tool bag
