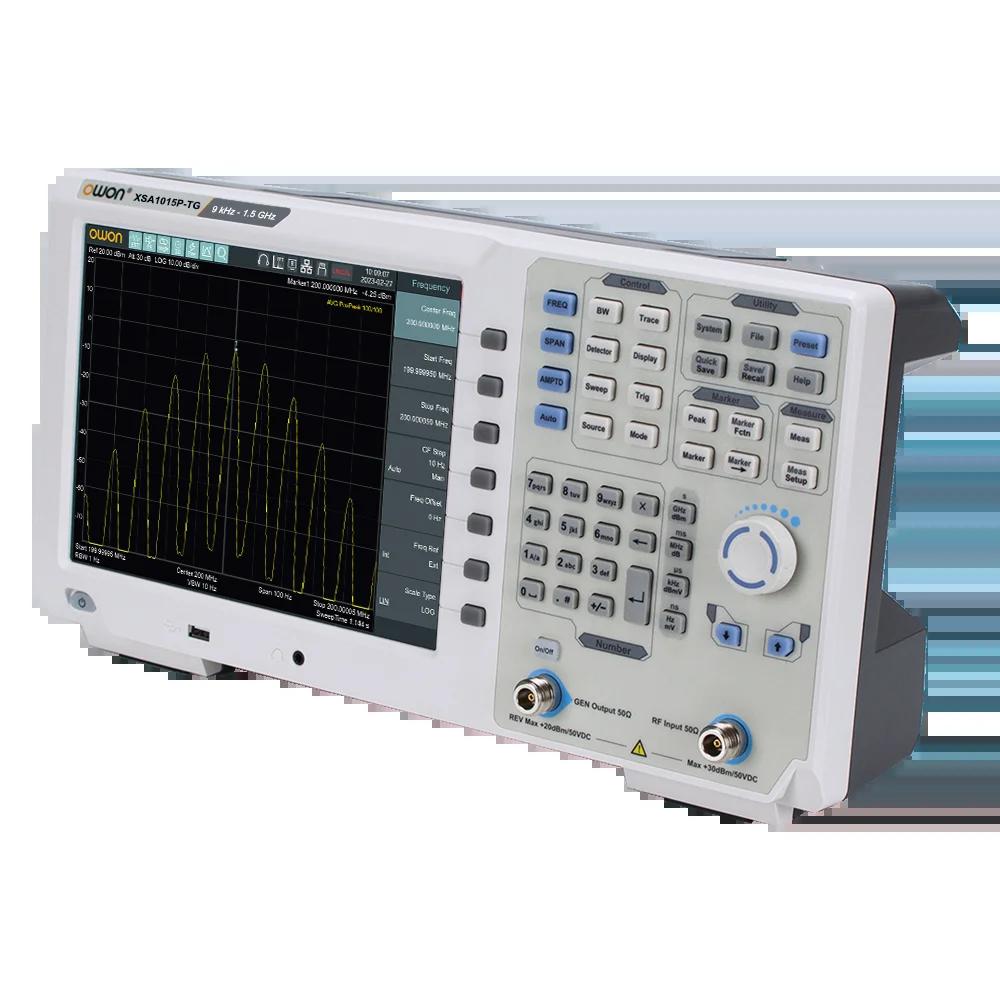

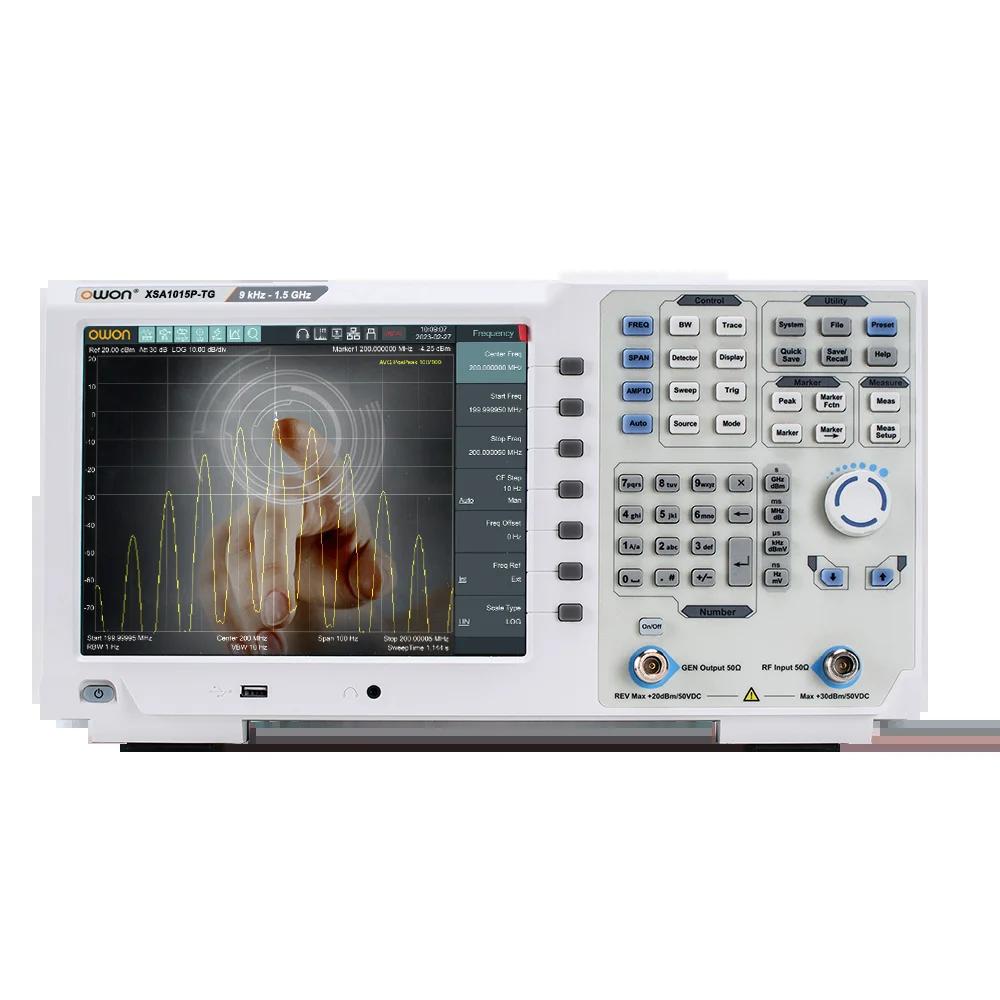

OWON XSA1015P-TG 9kHz-1.5GHz Spectrum Analyzer Tracking Generator with 10.4-inch TFT LCD Touch Screen
Features:

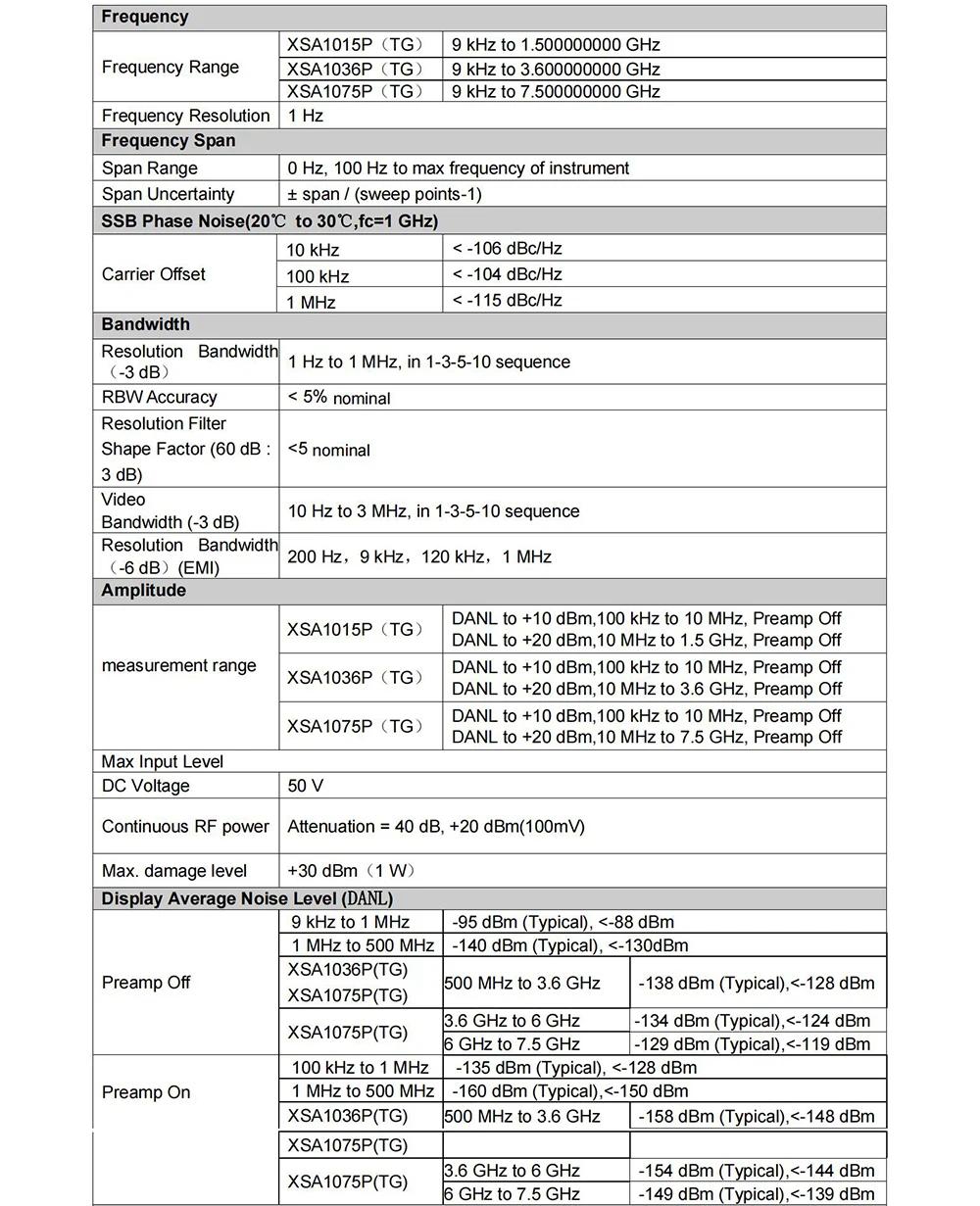

- Frequency range: 9kHz - 1.5GHz

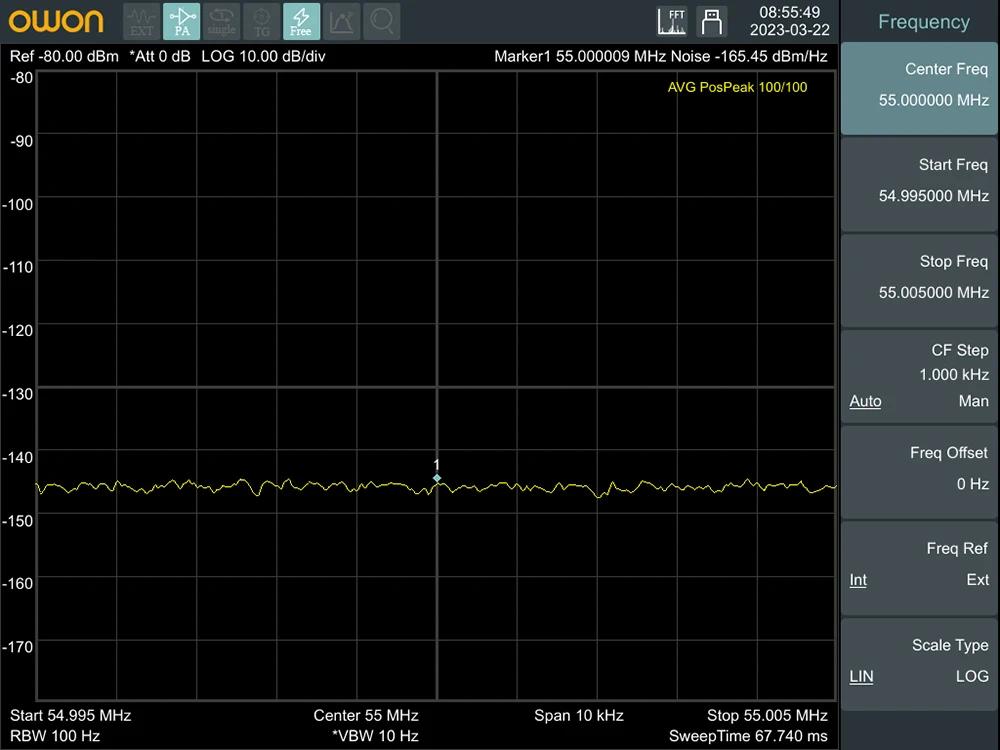

- Displayed average noise level (DANL): -163dBm

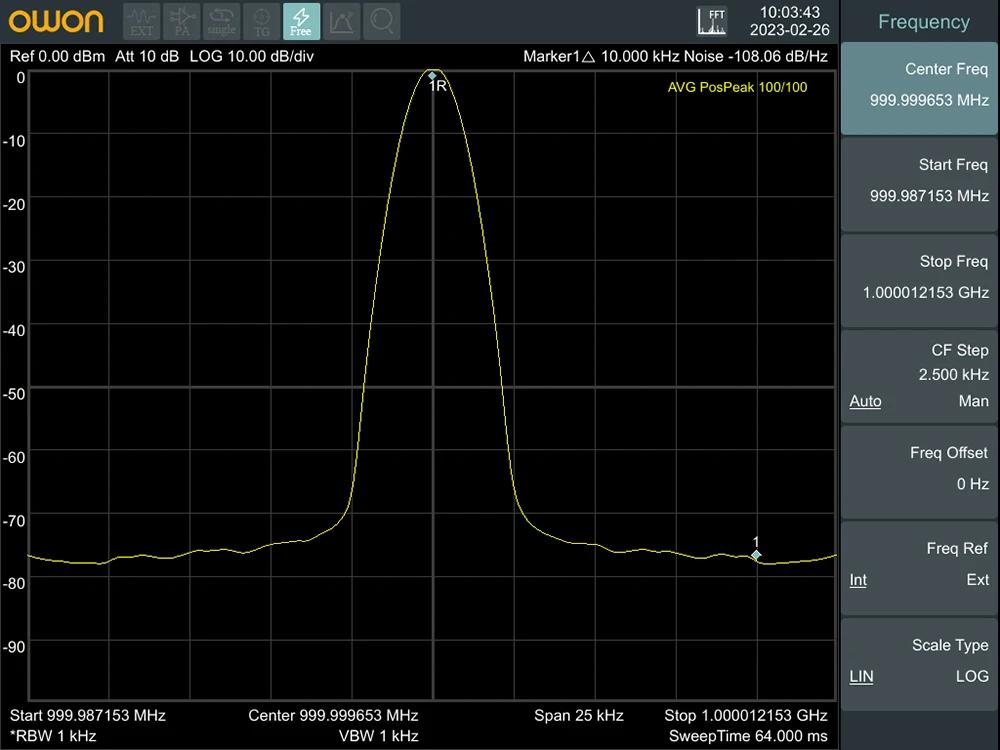

- Phase noise: -106dBc/Hz at 1GHz and offset at 10kHz
- Total amplitude accuracy: < 0.7dB
- Minimum resolution bandwidth: 1Hz

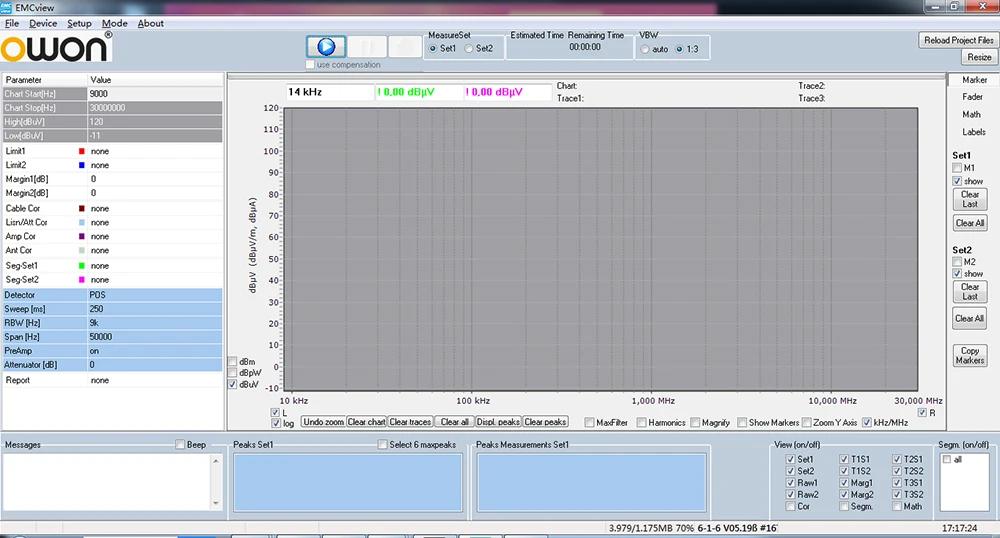

- EMI pre-compliance test kit, optional EMC test software

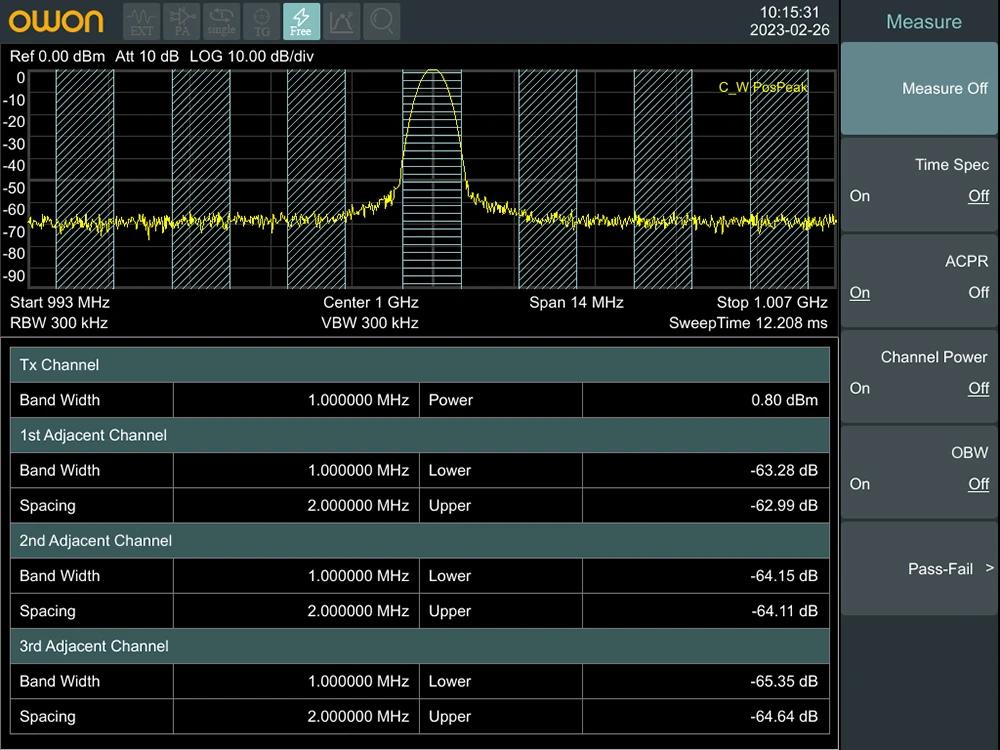

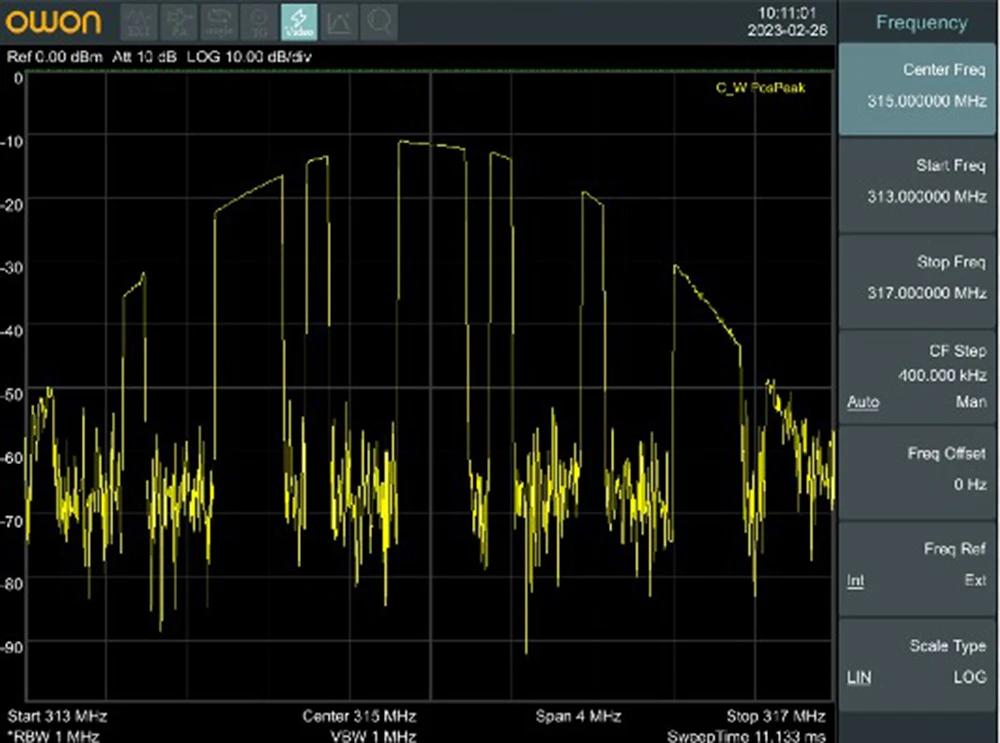

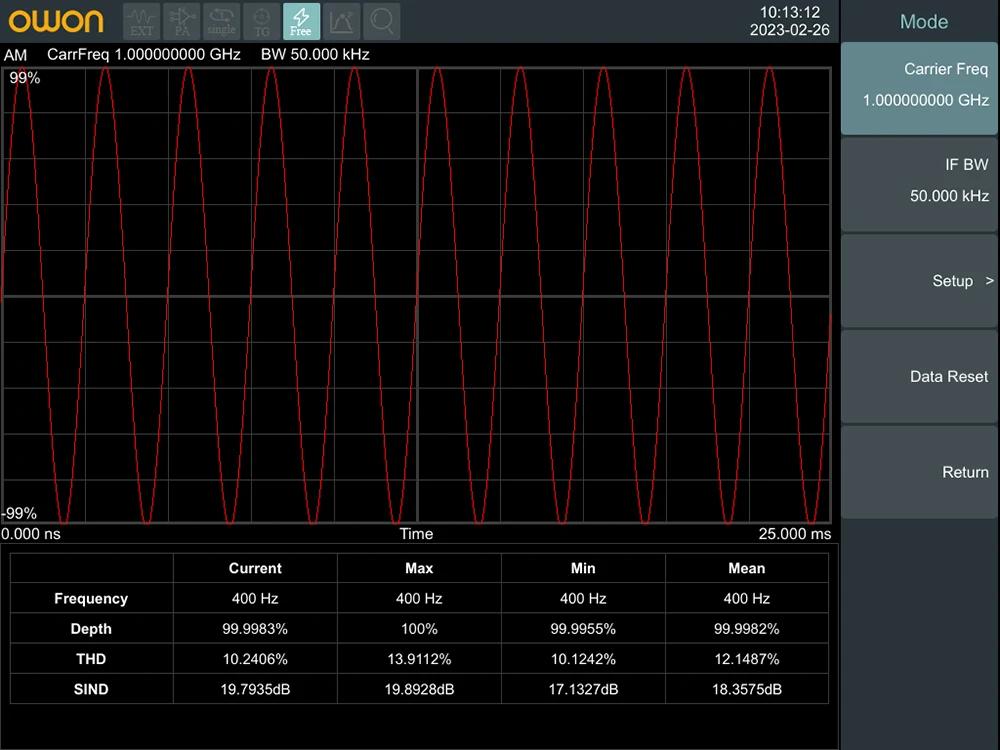

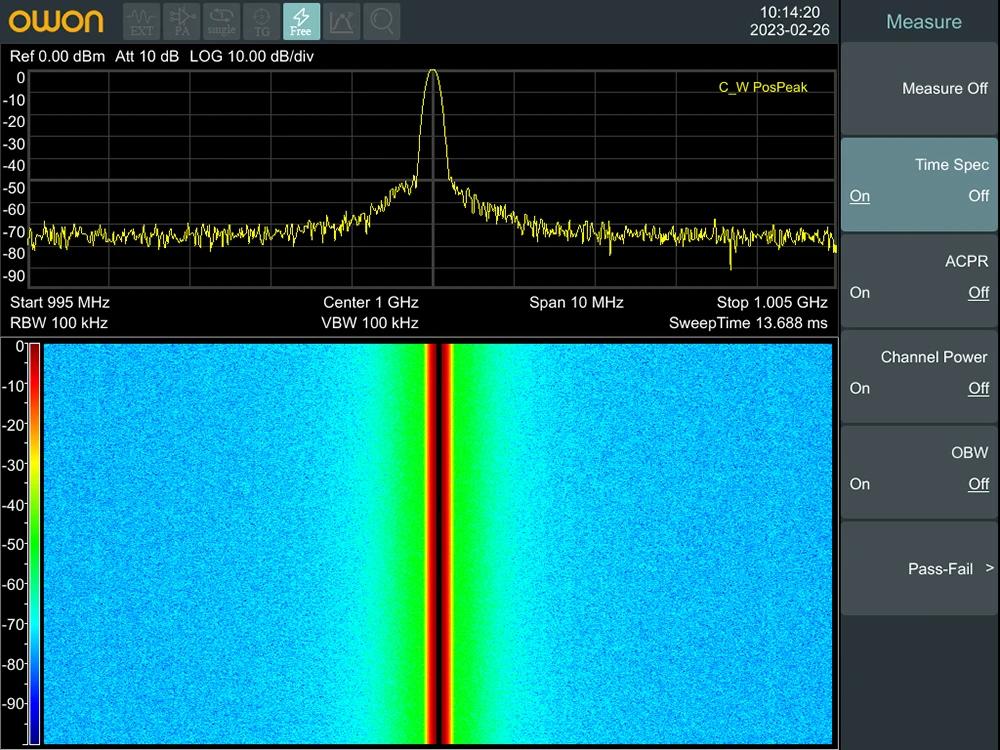

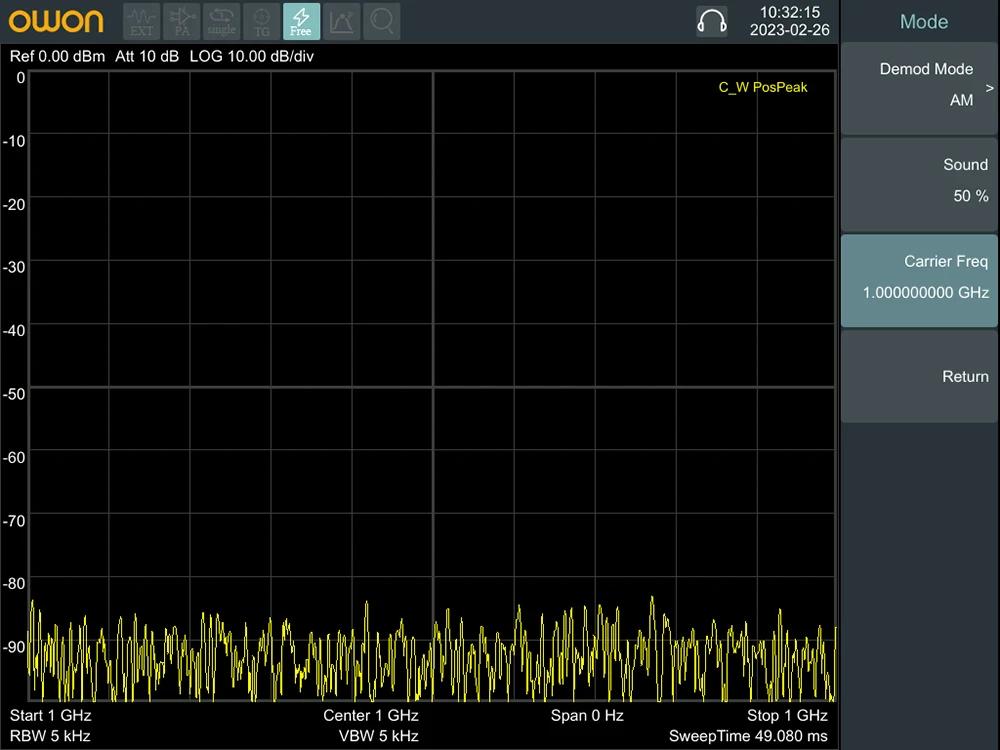

- Waterfall plot graphic, modulation signal quality analysis, audio demodulation, etc. Multiple general and extended test functions.

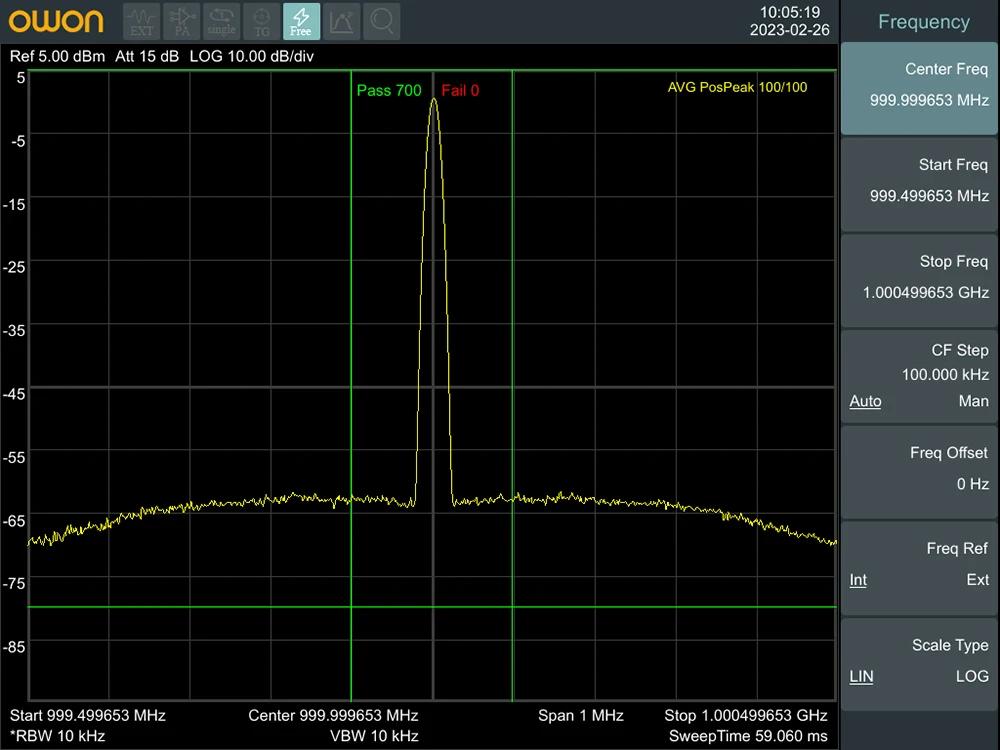

- Standard pass/fail on-site test and alert function
- Adopt all-digital intermediate frequency technology

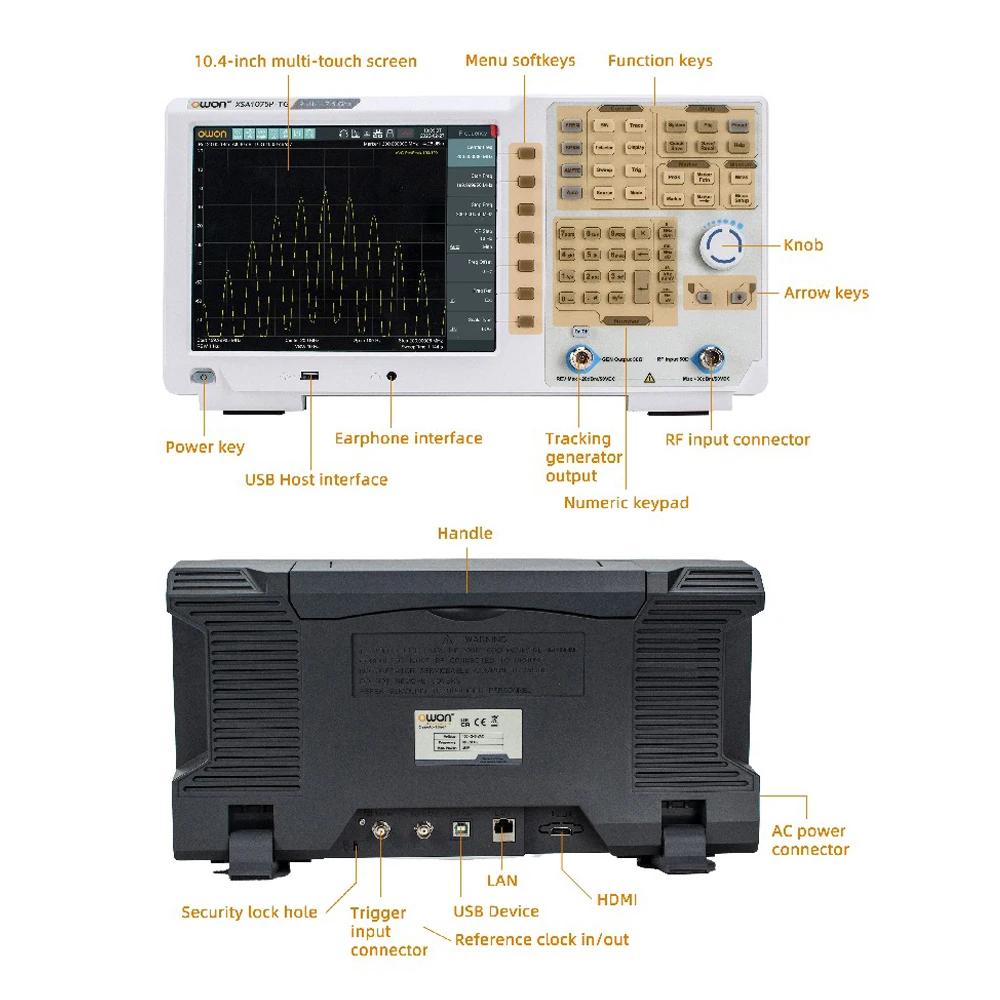

- Multiple interfaces: USB host, USB device, LAN, earphone interface, HDMI-compatible
- 10.4-inch multi-touch screen

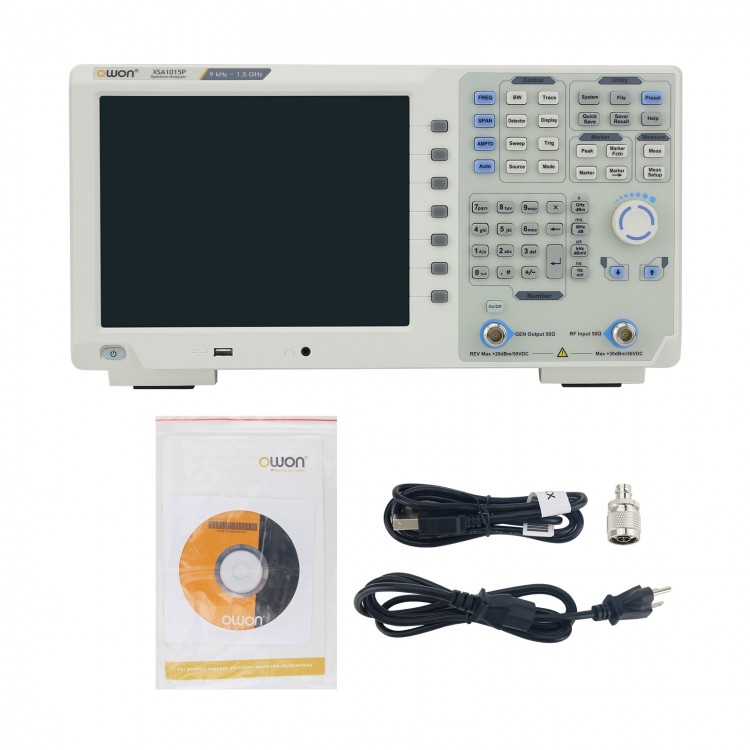

Package Included:
- 1 x XSA1015P-TG Spectrum Analyzer
