Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $145.90 | $142.92 | $138.46 | $132.50 | Contact US |

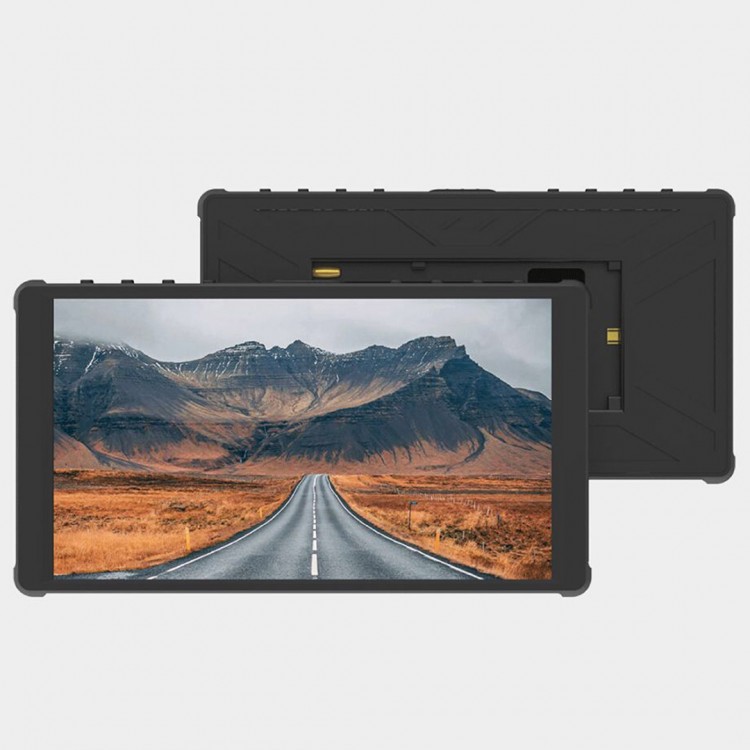

P6 SLR Monitor 5.5 Inch LUT 4K HDMI Display Micro Single Camera Monitor for Director Photography
Specification:
Screen size: 5.5"
Volume: 142 x 78 x 16.5mm
Viewing angle: 178°H/178°V
Brightness: 500nit
Resolution: 1920x1080
Contrast ratio: 1000:1
Weight: 130g
Color: 8bit
Backlight source: WLED
Material: ABS engineering plastic
Input voltage: 5V~24V
Operating power: 6W
Video input/output interface: 4K HDMI
Support battery model: Sony NP-F970/F960/F750/F550, Canon LP-E6
DC power port: 7.4~24V in, 7.4V when using NPF or E6 battery for external power supply
USB-A: Upgrade firmware / load 3DLUT/5V 2A power bank input power supply / use NPF or E6 battery to provide external power supply 5V
Audio output: 3.5mm headphone jack
Features:
-The lightest LUT monitor is only 16.5mm thick and weighs only 130g. 20 groups of camera LUT files can be built in; it can be loaded or replaced freely.
-Optimized heat dissipation, compatible with Sony NPF and Canon E6 batteries. When using NPF batteries, the DC power port can output 7.4V, and the USB port can output 5V at the same time to supply power to other devices.
-Portable charging and power supply, with USB port design, can use 5V 2A power bank to power P6.
-Convenient setting function, long press the custom function button for 3 seconds to enter the setting function.
Software Function:
●3DLUT
●RGB waveform
●Histogram
●Brightness waveform
●Guide frame
●Menu flip
●SLR zoom
●Menu transparency adjustment
●Zebra crossing
●Image automatic and manual flip
●Check the scene
●Line and field misalignment
●Grid
●Pixel to pixel
●Stereo audio column
●Color temperature
●Color
●RGB adjustable
●Image zoom
●Underscan
●Backlight brightness
●Proportional block
●Focus assist
●Contrast
Package List:
-1 x SLR Camera Monitor
-1 x HDMI A-D Cable
-1 x HDMI A-A Cable
-1 x 504 Bracket
