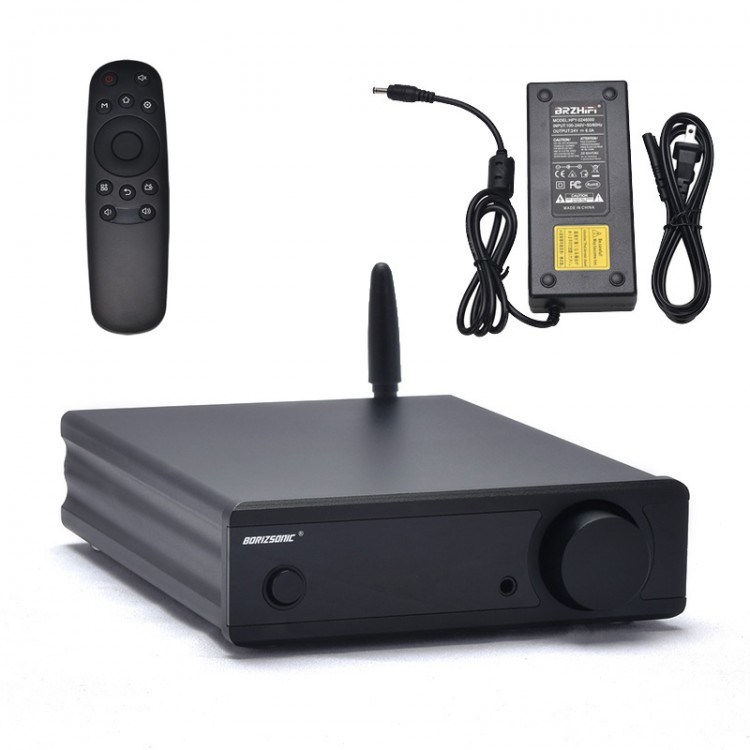

PA-06 100Wx2 Power Amplifier DAC Bluetooth 5.0 CSR8675 Assembled + Remote Control + 24V Power Supply

PA-06 100Wx2 Power Amplifier DAC Bluetooth 5.0 CSR8675 Assembled + Remote Control + 24V Power Supply

Advantages:
- Lossless music
- Bluetooth 5.0 connection
- LED display
- Professional HIFI decoding chip
- Really restore the scene
- Headphone amp output
- Can connect active subwoofer
- Custom inductors, high power output
- RCA/Coaxial/Optical fiber input
- USB input
- Treble, bass, audio adjustment

Features:
- Can be used for playing games, watching movies, enjoying music.
- TDA7498E power amplifier IC: sweet sound, good aftertaste.
- Built-in independent ES9018 decoding for fine sound and rich details.
- Infrared remote control supports volume adjustment, signal mode selection, mute, treble, bass, tone gain adjustment, etc.
- Wireless Bluetooth: Turn on the Bluetooth of mobile phones, TVs and other devices, search for CSR8675, and pair. After connection, it can play Bluetooth music. Bluetooth 5.0 enables stable audio transmission, transmission distance up to 10m or more. It can be used in mainstream mobile phones, tablet computers, notebook computers. Compatible with 99% smartphones on the market.
- Independent headphone amp output system.
- TDA7498E power amplifier IC, up to 200W, high frequency and high current output, shocking low frequency.
- Digital circuit, electronic control drive system.
- CSR8675 Bluetooth 5.0 supports for LDAC, aptx-HD and other high-definition wireless audio reception.
- ES9018k2m decoder chip performs DAC audio decoding on the digital signal of the entire system, rich analysis of coaxial, optical fiber, Bluetooth, USB details, and the sound is clearer.
- SA9023-USB driver chip realizes the driver-free connection between the USB port of the power amplifier and mobile phones and computers.
- Dedicated to digital circuit, custom pure copper high-power loop closed anti-interference inductor to ensure long-term high-current output.

Specifications:
- Model: PA-06
- Total output: 100W*2
- Power supply: DC24V 5A (Voltage port with external diameter 5.5mm and internal diameter 2.5mm)
- Impedance: 4-8Ω
- Product weight: About 0.61kg
- Product size: 128 x 40 x 162 mm

Electrical Parameters:
3.5mm Headphone Jack:
- Total harmonic distortion at A-weighting: <0.05% at 1KHz
- SNR at A-weighting: >103dB at 1KHz
- Frequency response: 20Hz-200KHz (±0.1dB)
- Channel crosstalk: -93dB at 1KHz
- Channel balance: 0.05dB
- Output Power:
* 263mWx2 at 32Ω, THD+N<1%
* 48mWx2 at 300Ω, THD+N<1%
- Compatible impedance: 16-300Ω

BTL Amplifier Output:
- Total harmonic distortion at A-weighting: 1 at 1KHz
- SNR at A-weighting: >91dB at 1KHz
- Frequency response: 20Hz-20KHz (±0.8dB)
- Channel crosstalk: -75dB at 1KHz
- Channel balance: 0.05dB
- Output Power:
* 47Wx2 at 4Ω, THD+N<1%
* 42Wx2 at 8Ω, THD+N<1%
- Compatible impedance: 4-8Ω

Decoder support specifications:
- USB IN: 44.1KHz-96KHz/16Bit-24Bit
- OPT/COAX IN: 44.1KHz-192KHz/16bit-24Bit
- Bluetooth support protocol: CSR8675 Bluetooth supports for SBC, AAC, APTX, APTX-HD

Package Included:
- 1 x Set of Power Amp

Note:
- Optional colors: Silver, Black. Please choose the color you want when purchasing.
- It is assembled and ready to use.
- Other items pictured are not included, for demonstration purposes only.
