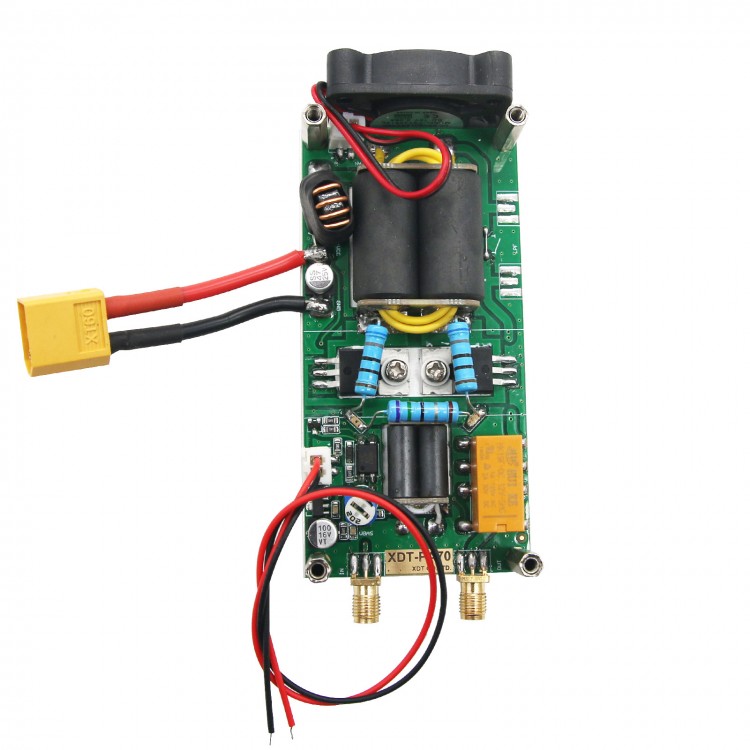

PA100 100w 3~30Mhz Shortwave Power Amplifier HF Amplifier RF for KN-Q10 KN850 KN990 w/Case

Availability: In stock, usually dispatched in 1 business day

  • Price:$77.76
  • Price in reward points: 778 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $76.20 $74.65 $72.32 $69.21 Contact US
Quantity:

PA100 100w 3~30Mhz Shortwave Power Amplifier HF Amplifier RF for KN-Q10 KN850 KN990 w/Case


Description:
- This product is a debugged finished product, directly connected to the radio, the power supply can work, with its own transceiver switching, the circuit is AB linear amplifier for ssb ,cw, am, fm power amplification.
- Suitable for KN-Q10,KN850,KN990
- Can be used as general wireless radio, short wave transmission, RF drive  linear amplifier

Features:
- Frequency range: 3-30mhz
- Power supply voltage :12v-16v
- Current: 6-10 A
- Maximum input power: 10w
- Maximum output power: 100w
- Weight :240g
- Input and output interface: SMA-K
- Amplifier gain: 10- 18DB

Package List:

- 1 x 3~30Mhz 100w Shortwave Power Amplifier

Note: This is a universal version that supports all radios. It comes with no filters or trigger lines. You need to make the trigger line by yourself. If you need a trigger line, please contact us to purchase separately.
