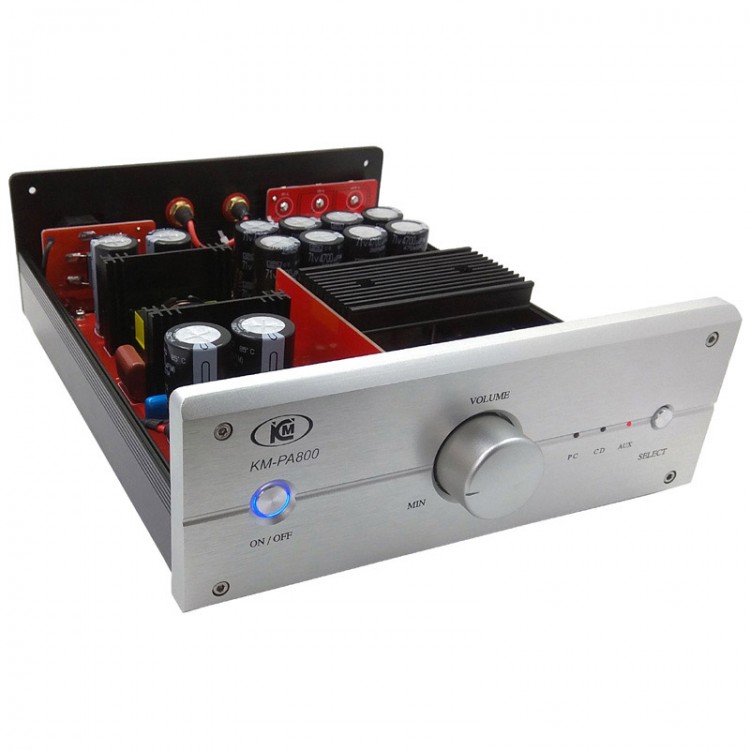

PA800DH Power Amplifier Digital HiFi Tube Amplifier Power Amp 400W+400W
Specification:
Rated output power: 400W+400W 4Ω RMS THD≦1%
Total harmonic distortion: ≦0.005% 1KHZ Load4Ω 120W
Signal to noise ratio: ≧120dB 1KHZ at full power
Frequency response: 10HZ-20KHZ ±1dB Load4Ω10w
Input sensitivity: 650mV 1KHZ Load4Ω 400W
Voltage magnification: 62 times
Input impedance: 43KΩ (10KΩ without JFET preamp)
Output impedance: 4Ω-8Ω (applicable to 30W-600W speakers)
Rated input voltage: AC 220V±10% 50/60HZ
Body size: 214 x 80 x 256mm (width*height*depth)
Net weight: 3.5kg
Features:
1. Anti-reverse plug protection, without worrying about burning the power amplifier. Overheat protection and horn protection, adopt electronic + physical dual detection protection.
2. Input overvoltage, input undervoltage, internal overheating, internal power supply short circuit and overload, output overload, output short circuit, DC output, etc., all adopt ultra-fast electronic shutdown protection technology.
3. Three dangerous situations, such as input over 260V, short circuit of internal power supply, damaged power amplifier or output with DC voltage, the amplifier will shut down the internal power supply and maintain the lock. It must be manually shut down for 10 seconds and then restarted before resetting. After other protection is triggered, the power amplifier can automatically resume working after the work environment is normal.
Package List:
1 x Power Amplifier
