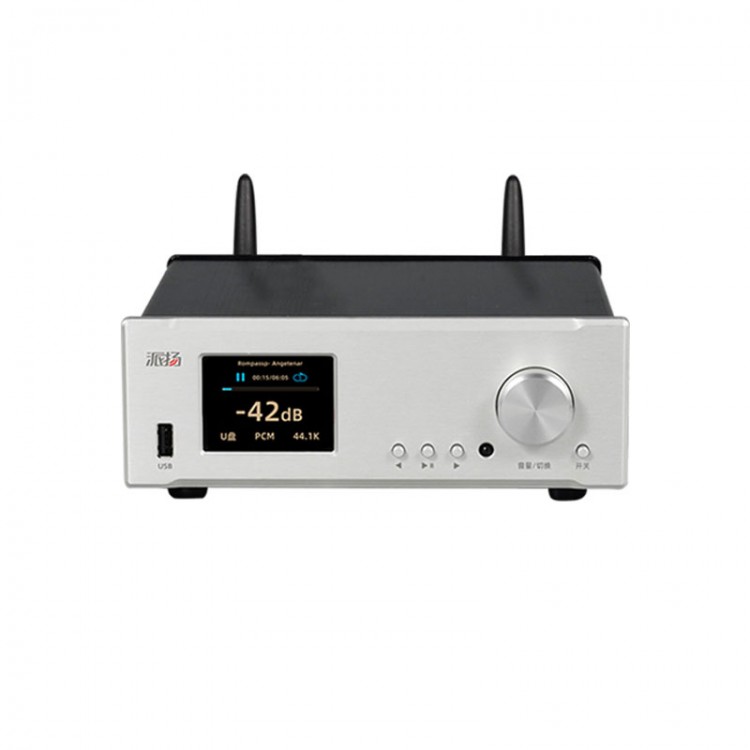

PAIYON Silvery DPA-1 Full-function Version Digital Turntable Audio Player Lossless Decoder with Balanced and RCA Output

PAIYON Silvery DPA-1 Full-function Version Digital Turntable Audio Player Lossless Decoder with Balanced and RCA Output

Description:
- Support USB Flash Drive/Mobile Hard Drive; Full format support: WAMFLAC\APEISO (left and right channel) DSFADFF\DTS (left and right channel) CUE (WAV, APE, FLAC), MP3 and so on.

- Using dual ES9038Q2M as the main decoder chip, each channel is independent of a piece, providing a higher signal-to-noise ratio and better audio separation. High sampling accuracy, low distortion, maximum restoration of details of high-quality audio sources. Support 32bit/PCM768K\DSD512, signal-to-noise ratio>122dB, with excellent decoding ability to provide excellent analogue audio listening.

- Loaded with 7 JRC's 5532M luxury op-amp array (1 piece of power processing to decode the analogue part of the power supply, 2 pieces of each channel to do I / V conversion and low-pass filtering, 1 piece of each channel balanced conversion) sound more rhythmic (ordinary decoding only 3).

- The machine uses a unique dual active phase-locked loop clock technology: dual active phase-locked loop clock technology is a high-precision clock synchronization technology, its purpose is to maintain synchronization between the audio clock and the sample rate clock. Through the dual active phase-locked loop technology, the audio clock and the sampling rate clock can maintain a high degree of synchronization, improving the precision and accuracy of audio playback, avoiding the impact on the playback quality due to problems such as clock jitter and errors, and improving the comfort of audio playback while maintaining the clarity of the audio signal. It can make the rhythm of the played music and songs more accurate, which is crucial for the playback of high-fidelity HIFI music.

- Adopt QCC3034 Bluetooth module, provide you with powerful and stable signal transmission and low energy consumption operation mode protocol support for sbc, aac, aptx, aptxLL, aptxHD.

- 2.4-inch IPS display. Human-computer interface, you can freely switch the built-in interface and display mode, signal input, signal format, volume level UV display at a glance, simple and simple.

- USB-PC input interface can support mobile phone/computer OTG connection playback, to achieve external sound card decoding, the highest support 32bit/PCM768K/DSD512.

- Rich interface and strong compatibility:
  Support input: can be connected to mobile phones/computers/notebooks/tablets/TVs/projectors, etc.
  Support output: can be connected to the combined amplifier / pure rear amplifier / gallows / preamplifier / active speakers and other equipment.

- Can be directly connected to the pure rear amplifier use, by the DPA-1 digital broadcast control volume, when you connect the merger machine, it is recommended that the volume can be set to -00dB, so that the digital broadcast is the pass-through mode, by the merger of the amplifier to control the volume.

- Digital audio data needs to be processed in precise sequence during playback, FIFO cache technology ensures stable data transmission and avoids abnormal or interrupted music playback due to data transmission error or reception order confusion.FIFO cache queue itself is a fast and effective caching mechanism, which is able to quickly access the digital audio data from the storage device and send it to the digital audio processor for processing. into the digital audio processor for decoding and playback. As the digital audio data itself is relatively large, it needs enough storage space to cache the data, FIFO cache technology can adapt to the large-capacity digital audio data caching needs, ensuring smooth playback of the data while ensuring the storage efficiency.

DPA-1 Specification:
- Maximum bit rate: 32bit/PCM768KDSD512
- Decoder chip: ES9038Q2M x 2
- USB flash drive/hard drive: FAT32, exFAT; recommended capacity of 2T (solid state) (does not support: NTFS format hard drives, hard drive boxes, old mechanical hard drives, multi-function card readers)
- Playback format: WAV/FLAC/APE/ISO (main front left and right channels) DSF/DFF/DTS (main front left and right channels) CUE (WAV, APE, FLAC), MP3, etc. (some formats only support the whole track playback does not support the selection of songs)
- APP: Support
- Display: 2.4-inch IPS full-view angle
- Playback memory: support
- Loop Mode: Single Song Loop, Catalogue Loop, Disk Loop
- Volume Adjustment: Support
- Infrared Remote Control: Support
- Firmware Upgrade: Support
- USB Interface: Support USB2.0 and above
- File system: does not support multiple partitions
- Bluetooth Audio: for Qualcomm QCC3034, support for sbc, aac, aptX, aptxLL, aptxHD
- USB digital interface: support (audio full format) up to 32bit/PCM768K/DSD512
- OTG (mobile phone sound card): 16-32bit, 44.1-768K, DSD64-512
- Coaxial Input: Support
- Optical Fibre Input: Support
- Coaxial Output: Support (24bit/PCM192K/DSD64)
- Optical Output: Support (24bit/PCM192K/DSD64)
- Clock type: custom dual ultra-low jitter crystal 451584MHz, 49.1520MHz
- Balanced outputs: one set of 6Vrms
- Single-ended output: 3Vrms
- Frequency Response: 20-20KHz ±0.15dB
- Signal-to-noise ratio: >122dB
- Decoding distortion: <0.0003%
- Dynamic range: 125 dB
- Standby power consumption: ≤1W
- Power supply type: 25W potting toroidal transformer
- Overall power consumption: about 8W (U-disk playback)
- Net weight: 1.68Kg

DP-1 Specification:
- Maximum bit rate: 24bit/PCM192K/DSD64
- Decoder chip: No decoder chip
- USB flash drive/hard drive: FAT32, exFAT; recommended capacity of 2T (solid state) (does not support: NTFS format hard drives, hard drive boxes, old mechanical hard drives, multi-function card readers)
- Playback format: WAV/FLAC/APE/ISO (main front left and right channels) DSF/DFF/DTS (main front left and right channels) CUE (WAV, APE, FLAC), MP3, etc. (some formats only support the whole track playback does not support the selection of songs)
- APP: Support
- Display: 2.4-inch IPS full-view angle
- Playback memory: support
- Loop Mode: Single Song Loop, Catalogue Loop, Disk Loop
- Volume adjustment: not support
- Infrared Remote Control: Support
- Firmware Upgrade: Support
- USB Interface: Support USB2.0 and above
- File system: does not support multiple partitions
- Bluetooth Audio: No Bluetooth function
- USB digital interface: no USB interface
- OTG (mobile phone sound card): no OTG function
- Coaxial Input: No support
- Optical Input: No support
- Coaxial Output: Support (24bit/PCM192K/DSD64)
- Optical Output: Support (24bit/PCM192K/DSD64)
- Clock type: custom dual ultra-low jitter crystal 451584MHz, 49.1520MHz
- Balanced output: not supported
- Single-ended output: not supported
- Frequency Response: Not Supported
- Signal-to-Noise Ratio: Not Supported
- Decoding Distortion: Not Supported
- Dynamic Range: Not Supported
- Standby power consumption: ≤1W
- Power supply type: 12W EI potting transformer
- Overall power consumption: about 2.5W (when playing on a USB stick)
- Net weight: 1.38Kg

Package Included:
- 1 x Host
- 1 x Power Cable
- 1 x Remote Control
- 2 x Antenna (for DPA-1)
