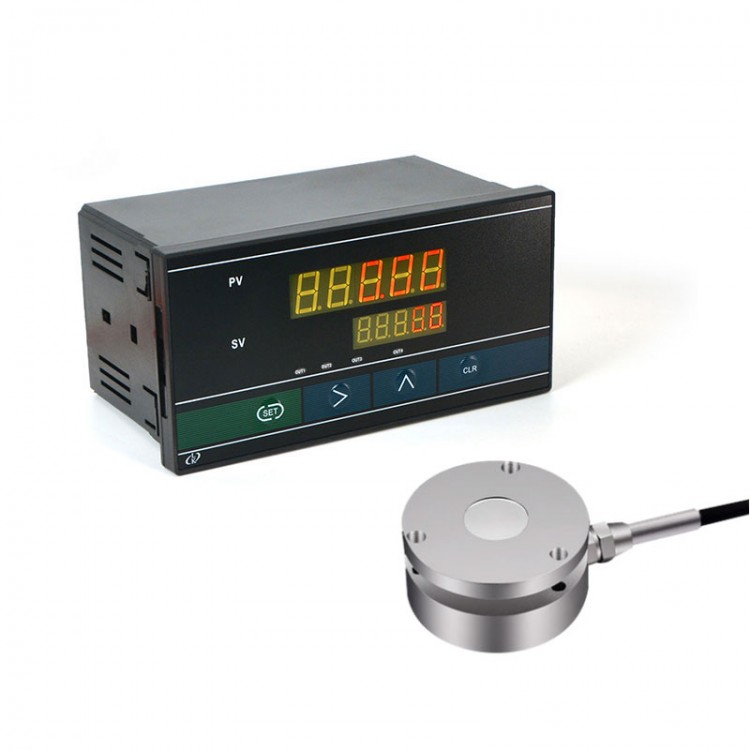

Pancake Load Cell Sensor (Φ58mm 0-50KG) + V8016N 160x80mm Display for Instant Impact Force Pressure

Pancake Load Cell Sensor (Φ58mm 0-50KG) + V8016N 160x80mm Display for Instant Impact Force Pressure

Features of the Load Cell:
* Pancake Load Cell Sensor: It is your reliable weight sensor.
* Accurate Measurement: The load cell provides precise measurements, ensuring reliability and accuracy in your tests.
* Durable Design: Built to last, this load cell sensor is designed to withstand heavy use, ensuring long-term reliability.
* Easy Reading Display: The indicator display makes it easy to read the weight measurements, eliminating the need for complex calculations.
* Versatile Application: Whether you're testing compression force or pressure, this sensor is versatile enough to meet your requirements.
* High Load Capacity: This load cell sensor can handle a wide range of weights, from 10KG to 5T, making it ideal for various testing needs.
* Practical Weight Sensor: The weighing sensor adopts a flat diaphragm structure, with the housing and diaphragm integrated into a single unit. It features a compact size, low profile, and stable performance. It is suitable for measurement devices used in medical equipment, various force measurement, weighing detection, and other industrial automation measurement and control systems.
* Hexagonal Waterproof Connector: The connector has a protection rating of IP66. It is equipped with a spring buffer to prevent wire breakage due to pulling, making it durable and not easily damaged. The connector is a reinforced waterproof type made of nickel-plated brass.
* High-Flexibility Signal Transmission Cable: The cable features strong anti-interference capabilities, ensuring a stable signal. It is also resistant to bending and folding.
* AVIC High-Precision Strain Gauge: It has good heat resistance, low creep, minimal thermal hysteresis, long-term stability, and high measurement accuracy. Moreover, it can operate in extreme environments such as low temperature, high temperature, and high pressure.
* Application Scenarios: Suitable for electronic scales, high-precision medical equipment, IoT data analysis, industrial automation, and research, development, and debugging of force data acquisition and transmission.

Parameters of the Load Cell:
* Rated load: 10KG~5T (Optional)
* Sensitivity: 1.5~2.0±0.05mV/V
* Non-linearity: ±0.3~±0.5%F.S.
* Hysteresis error: ±0.3%F.S.
* Repeatability: ±0.3%F.S.
* Creep: ±0.1%F.S.
* Zero temperature coefficient: ±0.1%F.S./10°C
* Sensitivity temperature coefficient: ±0.1%F.S./10°C
* Input resistance: 380±30Ω
* Output resistance: 350±5Ω
* Working temperature: -20℃ to +70°C
* Safe overload: 120%F.S.
* Insulation resistance: ≥2000MΩ
* Excitation voltage: 5V~12V
* Protection class: IP66
* Material: Alloy steel
* Cable: Ф5×3М

Packing List:
* 1 x Load Cell Sensor
* 1 x Display

Packaging Details:
* Weight: 0.9kg
