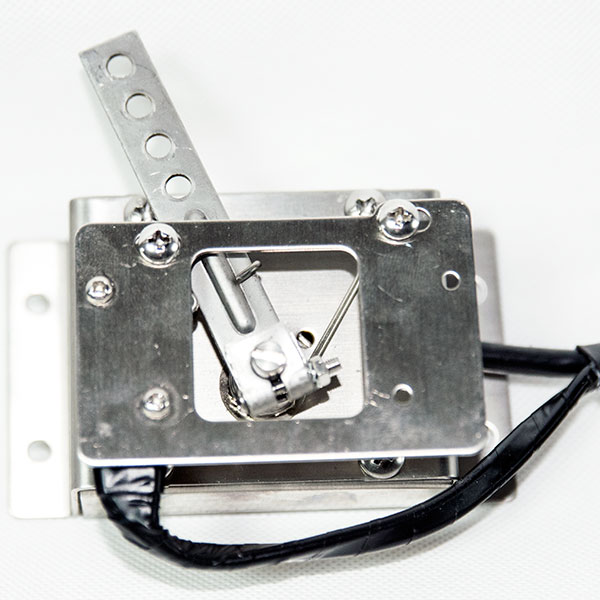

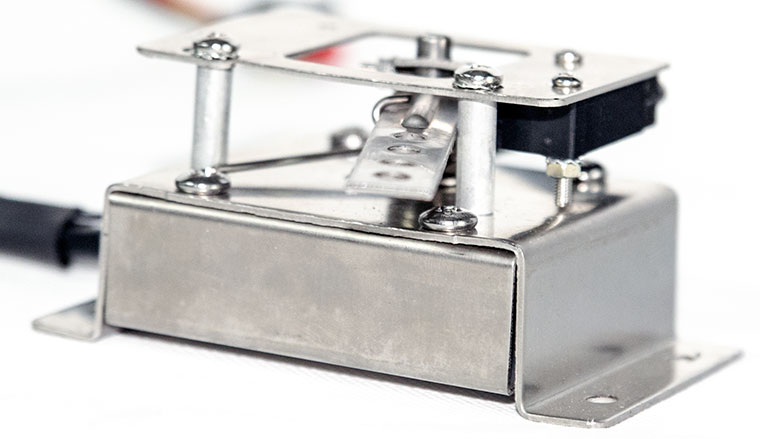

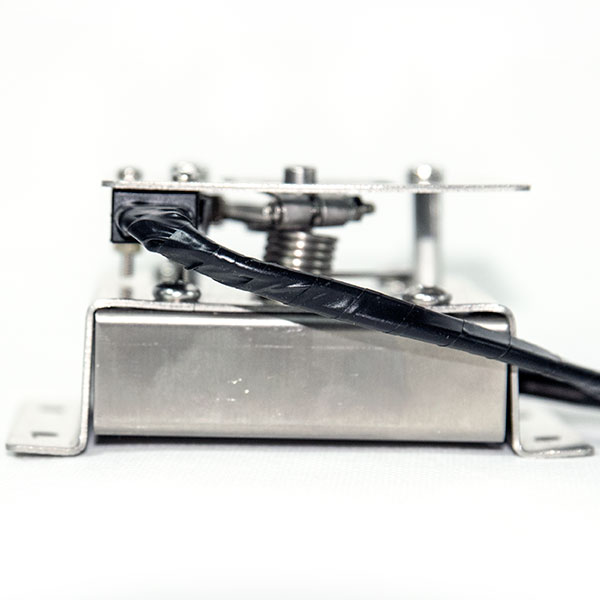

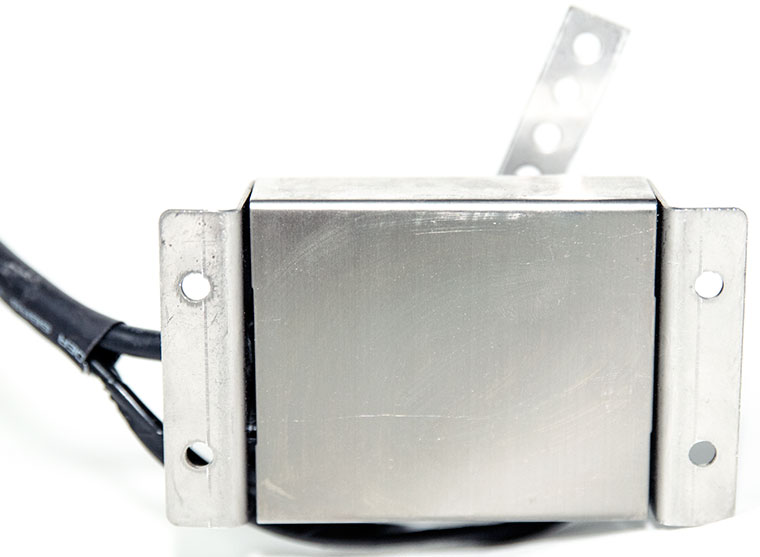

PB-6 Throttle 0-5K Ohms 4-Wire Golf Cart Potentiometer Accessory Suitable for Curtis Style
Product Description:
- PB-6 Style Throttle
- 4-Wire 0-5KΩ Potentiometer
- Mating Connector Available
PB-6 Specifications:
- Model: PB-6 (not original CURTIS product, made by a Chinese manufacturer)

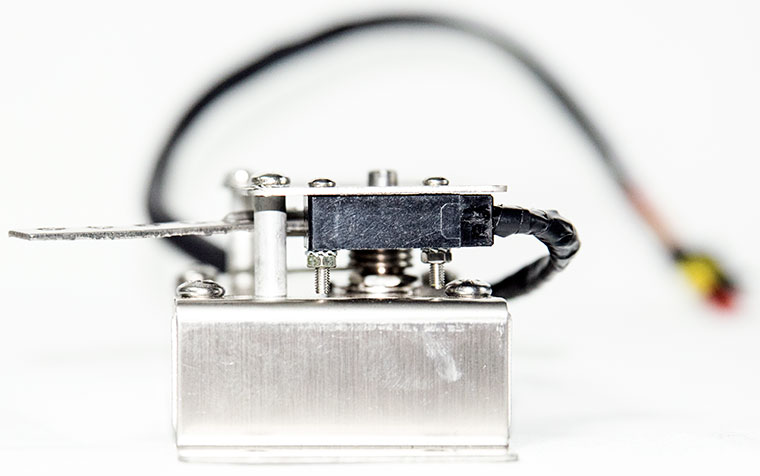

- Stainless steel case with a built-in micro-switch
- The potbox is the throttle in an EV
- The potbox tells the controller how much input needed by the controller
- The potbox's lever arm is attached to the existing accelerator cable
- Signal output: 0-5KΩ (for BI potentiometer P270-033B)
- Designed for right-handed operation
- Simple and reliable structure for tough environment

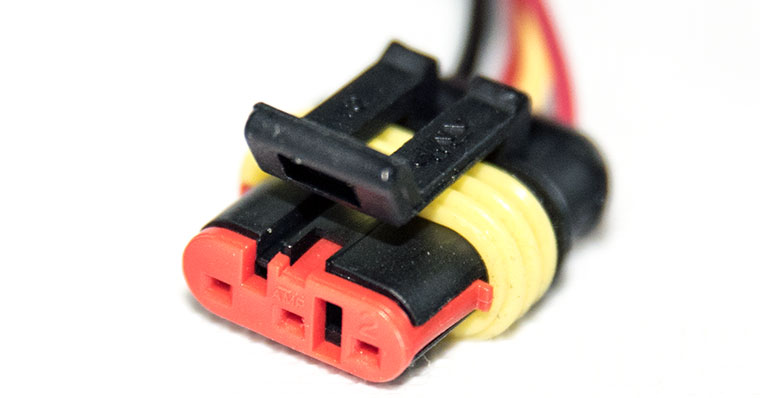

- Mating connector is included
- Dimensions: 102 x 60 x 52mm/4 x 2.4 x 2"
- Net weight: 0.35kg/0.8" (with mating connector)
P270-033B Specifications:
- Model: P270-033B potentiometer
- Manufacturer: for BI / TT Electronics PLC
- Output: 0-5kΩ ohms
- Typical application: throttles EFP-005 and PB-6 for CURTIS
- 12.7 mm (1/2") rotary
- 1,000,000 cycle life
- Conductive plastic element, support heavy duty applications
Package Included:
- 1 x PB-6 Throttle
