Description:
Based on PCI Express, PCIe-GPIB is a genuine GPIB controller. The high-speed GPIB card can replace traditional PCI GPIB.

Features:
- Compatible with PCI Express 1.0a
- NI-488.2 software available for Windows, Mac OS X, Linux, and Solaris
- TNT ASIC can achieve IEEE 488.2 performance
- PCIe-GPIB for NI is a high-performance plug-and-play IEEE 488 interface for connecting to computers and workstations with PCI Express expansion slots. You can use it on any computer and workstation with operating systems, including for Windows, Mac OS X, Linux, and Solaris

Specifications:
General:
- Product: PCIe-GPIB for NI
- Product Family: GPIB
- Bus Type: PCI Express
- Product number: 778930-51, 779779-01, 778930-01, 779142-01, and 779885-01
- OS/Object: for Linux, Mac OS, Windows, and Unix
- For LabVIEW RT: Not support
- Voltage: 3.3VDC
- Current: 320mA
- Power: Internally powered
- Comply with GPIB standard: IEEE 488
- Onboard GPIB Analyzer: No
- Onboard GPIB ASIC chip: TNT5004

Port Information:
- Number of ports: 1
- Max Baud Rate (IEEE 488.1): 1.5 MB/s
- Maximum baud rate (HS488): 7.9 MB/s
- I/O FIFO buffer size: 64B, 32B
- Maximum device connections/ports: 14

Physical Standard:
- Length: 9.8cm/3.9"
- Width: 6.9cm/2.7"
- I/O Connector: 24-pin IEEE 488
- Operating temperature: 0℃
- Operating temperature: 55℃

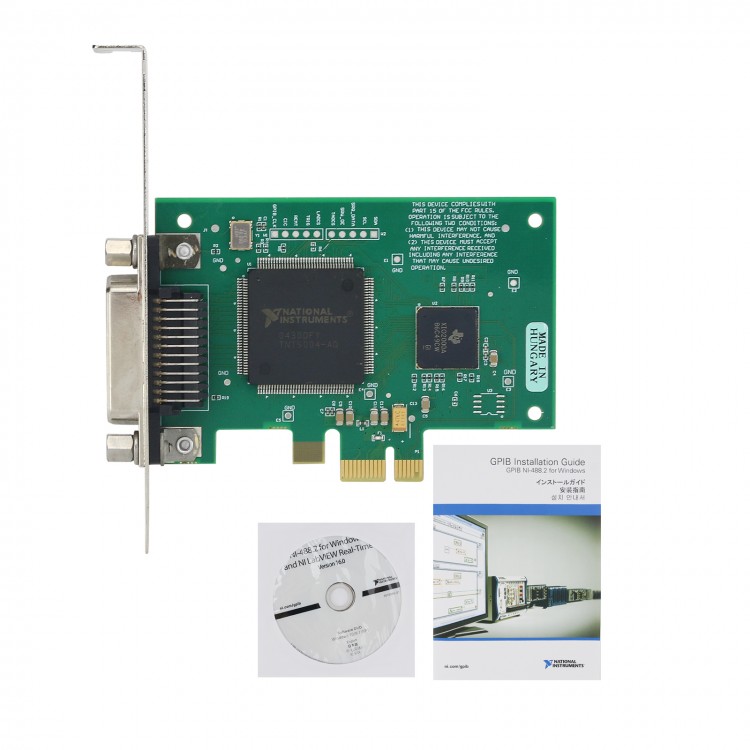

Package Included:
- 1 x PCIe-GPIB Card
