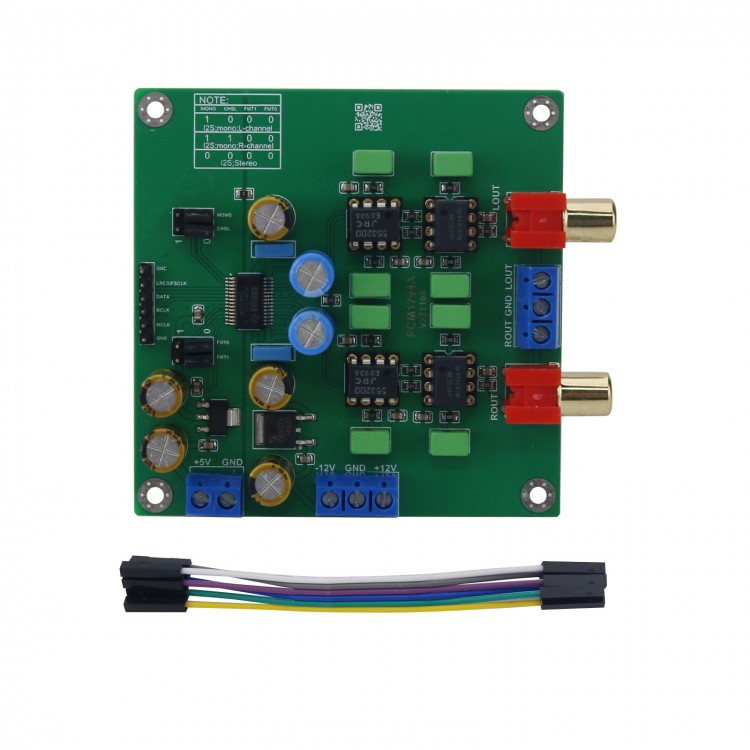

PCM1794A Gold-Plated Audio Decoder Board DAC Module High Fidelity Decoding Kit 24Bit 192KHz
Description:

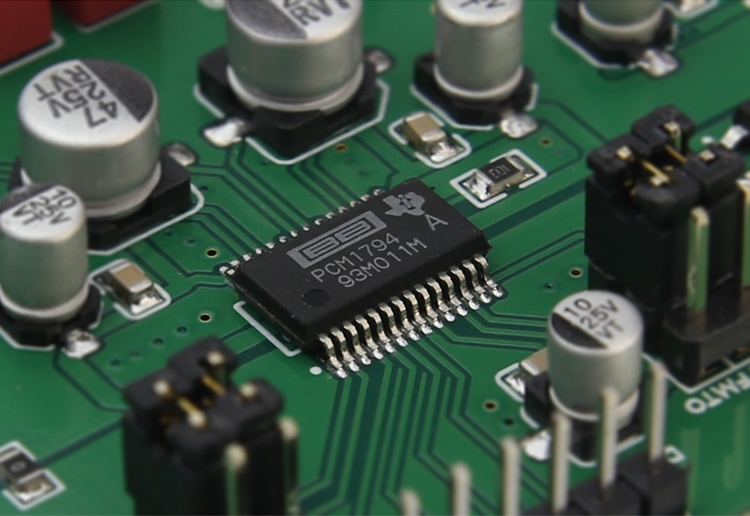

- Single 1794 gold-plated decoder board is designed on the base of 1794 DAC module circuit
- It adopts the advanced DAC framework for TI, which excellently realizes the dynamic performance and improved the durability for clock jitter. It provides a balanced current output and support a sampling rate up to 200kHz.
- Users can optimize performance externally, we have added operational amplifier circuits on this chip.

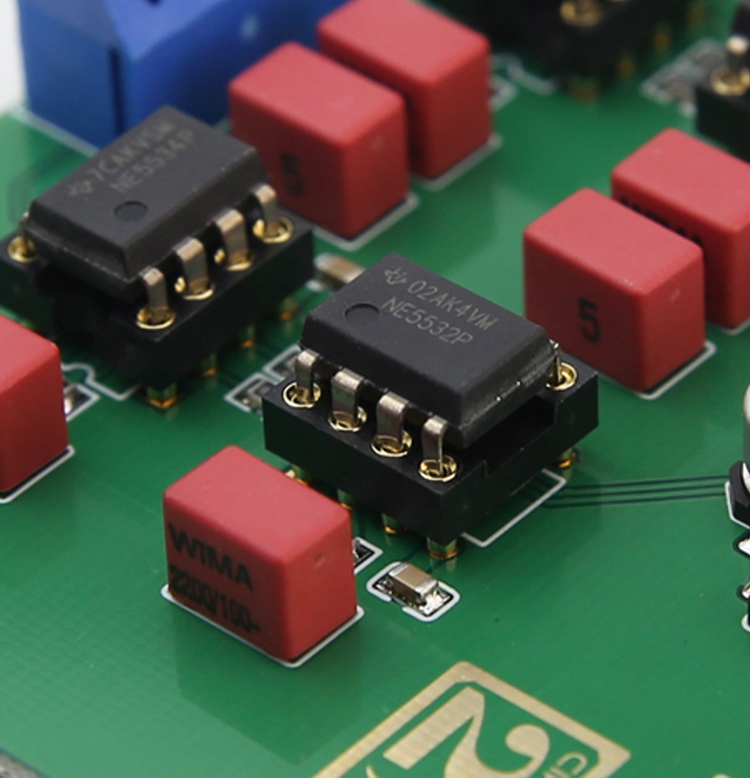

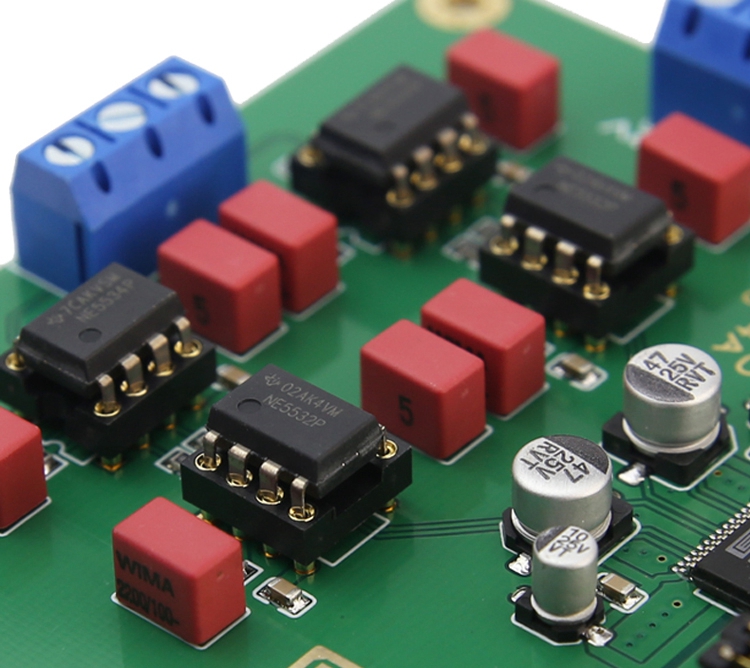

- 2 x 5534 single operational amplifier, 2 x 5532 dual operational amplifier
Specification:
- Size: 8mm(L) x 8mm(W) x 1.6mm(H)
- Weight: 45g
- Digital power supply: ±5V DC
- Analog power supply: ±12V DC
- Input type: I2S
- Sampling rate: 24-Bit 192kHz
- Output dynamic: 2.1V RMS
- THD + N: 0.0008%
- SNR: 102dB
Definition of input and output port:
- DC 5V power input: 2PIN wiring base, +5V, GND
- DC ±12V power input: 3PIN wiring base, -12V, GND, +12V
- LIN OUT output: 3PIN wiring base, ROUT, GND, LOUT
- I2S IN input: 6PIN2.54 for DuPont pin, DGND, SCK, BCK, DATA, LRCK, GND
Package Included:
- 1 x Finished Decoder Board
