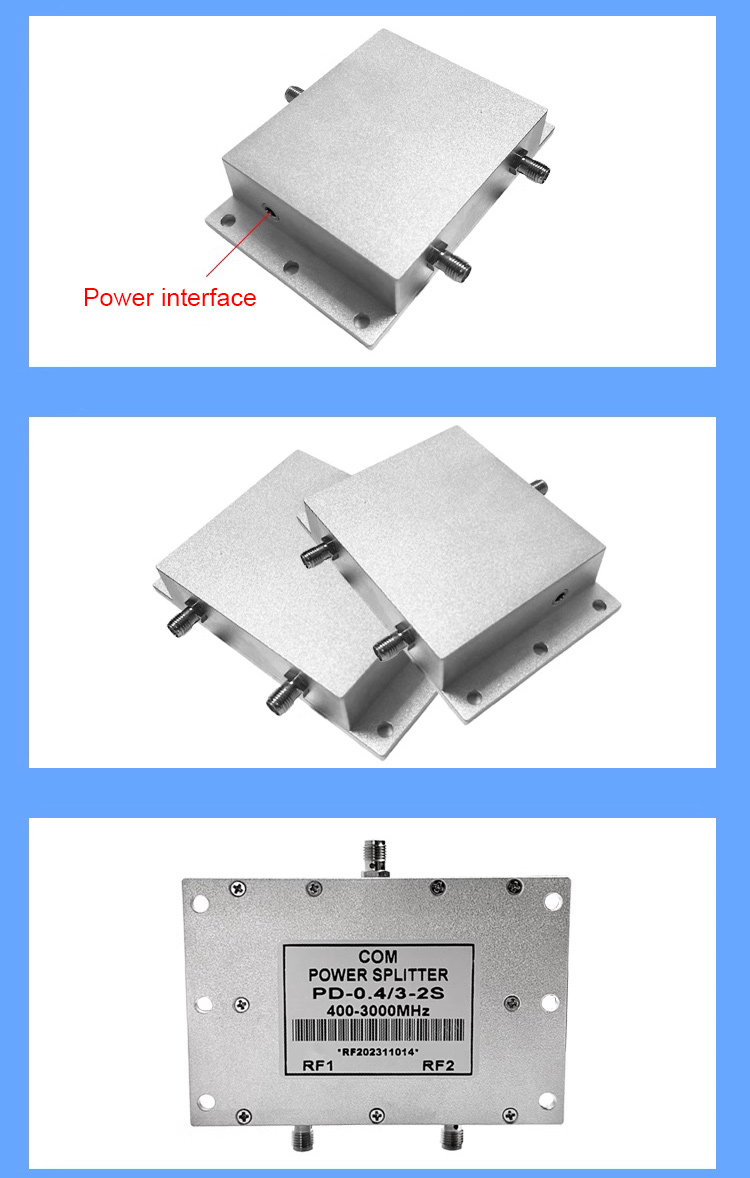

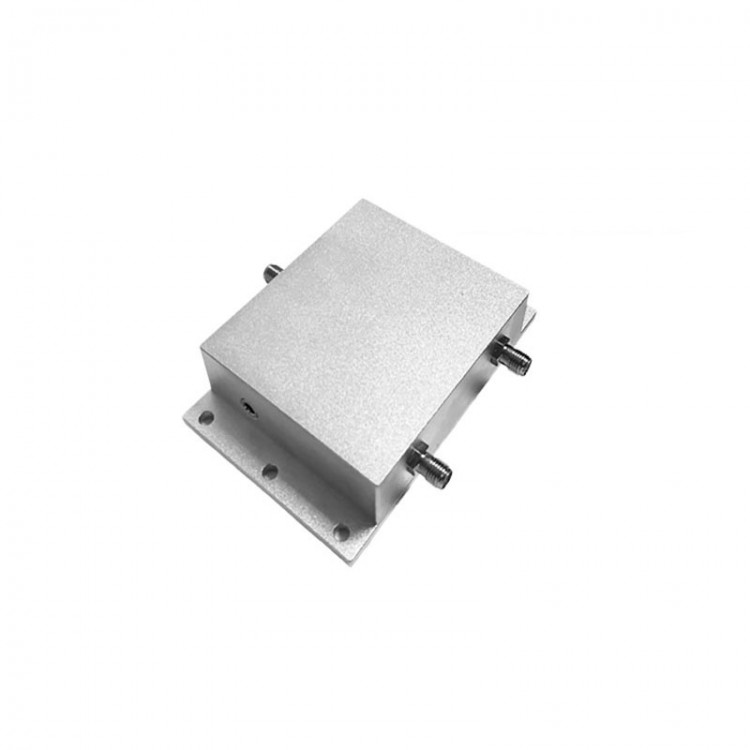

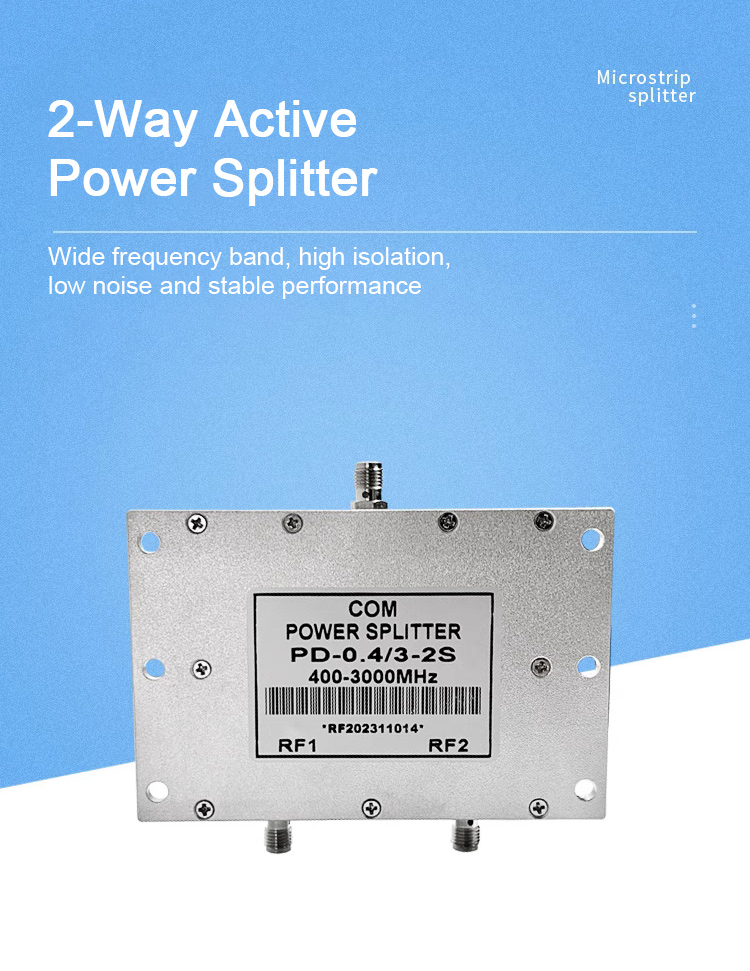

PD-0.4/3-2S Active Power Splitter 400-3000MHz RF Power Combiner for Walkie Talkie 2.4GHz and 4G LTE
Application Scenarios:
An active power splitter is a power divider with an internal signal amplification function. It can effectively compensate for line loss, improve the signal-to-noise ratio of the system, increase the transmission distance, and have great advantages for the distribution of weak signals. The active power divider is versatile. It can be used in systems such as walkie-talkies, satellite positioning systems, 2.4GHz and 4G LTE because of its wide frequency band, high isolation, low noise and stable performance.
Features:
- Two-way active power divider
- Wide frequency band, high isolation, low noise and stable performance
- The product has passed strict testing
- With low loss
- Real parametric indicators
- Strong stability
Product Parameters:
- Model: PD-0.4/3-2S
- Product Name: 2-way active power divider
- Frequency range: 400-3000MHz

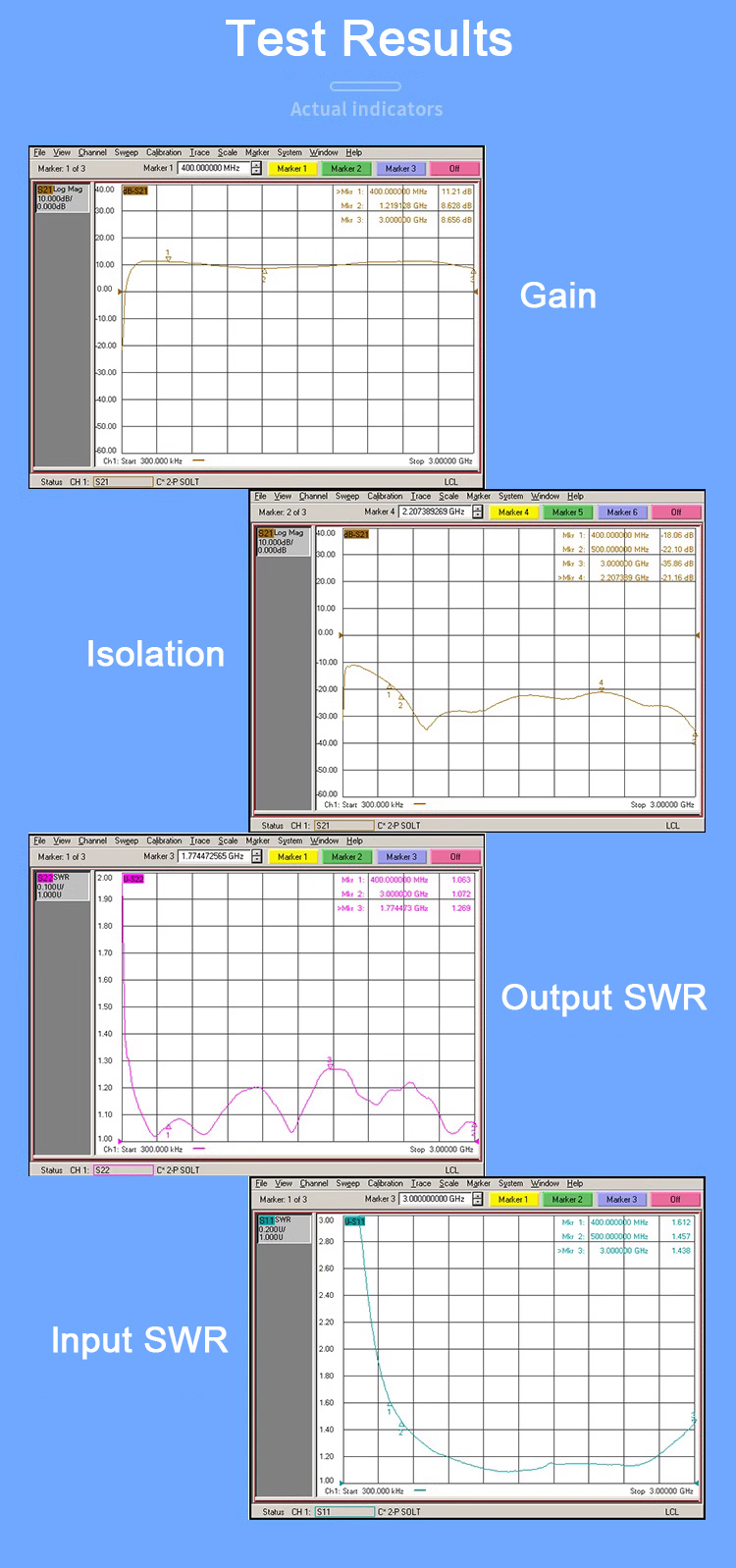

- Gain: 10±2dB
- Isolation: 17dB Min. at 400-500MHz; 20dB Min. at 501-3000MHz
- Input SWR (VSWR Max.): 1.7
- Output SWR (VSWR Max.): 1.4
- Noise figure (Max.): 2.4dB
- Output 1dB compression point: -5dBm
- Maximum input level: 0dBm
- Operating current: 40mA typical
- Operating voltage: +5 to 12VDC
- DC Feed: 250mA Max.
- Impedance: 50Ω
- Fitting Type: SMA-K-K/N-K-K
- Operating temperature: -20 to +60°C
- Dimensions: 94 x 62 x 20mm/3.7 x 2.4 x 0.8"
Package Included:
- 1 x Active Power Splitter
Packaging Details:
- G.W.: 0.25kg
