| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $21.03 | $20.60 | $19.96 | $19.10 | Contact US |

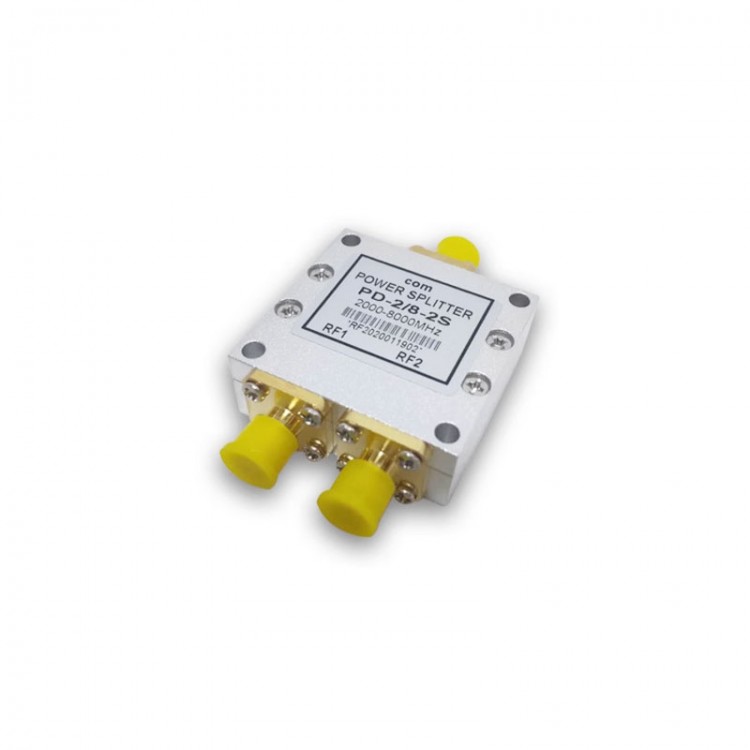

PD-2/8-2S 2000-8000MHz Microstrip 2-Way Power Splitter RF Power Divider with SMA Female Connector
Features:
* Microstrip 2-way power divider
* Low VSWR, wide frequency range, and low insertion loss
* Cost-effective, easy to install, and both time-saving and hassle-free
* SMA connector: SMA female connector
* With metal screws on its body
* Aluminum housing with sandblasted finish
* Exquisite craftsmanship: With pre-drilled mounting holes for easy installation and removal
Technical Specifications:
* Frequency Range: 2-8GHz
* Insertion Loss: ≤3.8dB
* Isolation: ≥20dB
* Input VSWR: ≤1.4
* Output VSWR: ≤1.3
* Amplitude Balance: ≤0.3dB
* Phase Balance: ±5°
* Impedance: 50Ω
* Connector Type: SMA
* Power Handling: 15W
* Operating Temperature: -30 to 70°C

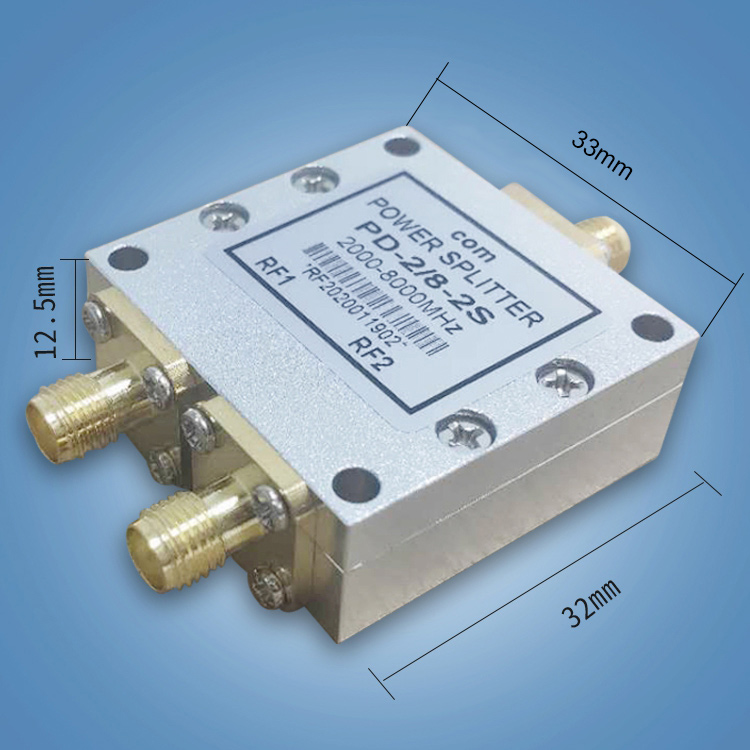

* Dimensions: 32 × 33 × 12.5mm
* Weight: 0.10kg
Packing List:
* 1 x Power Splitter
Packaging Details:
* Weight: 0.23kg
