- PICO-BOX X7-ATX-500 500W High Power, 24PIN ATX Power Supply with Dual 19.5VDC Power Adapter Inputs and Dual Separate 12VDC Output Channels
- Updated version X7, with two separate channels of 12V output. One 12V channel is for CPU, and the other is for graphic card only.
1. Fanless, zero noise, high efficiency ATX standard size DC PSU.
2. Standard size to directly replace the traditional ATX PSU.
3. Use one or two AC-DC adapters as input. The PIN size is 7.4x5mm.
4. 24PIN standardard ATX connector on the board.

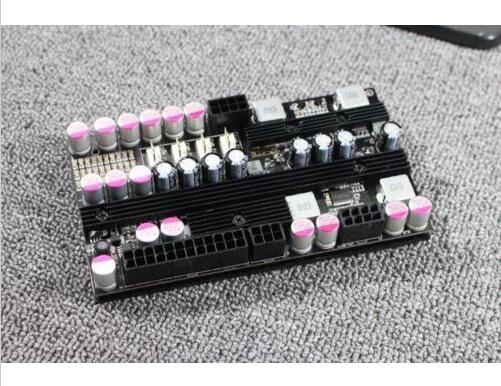

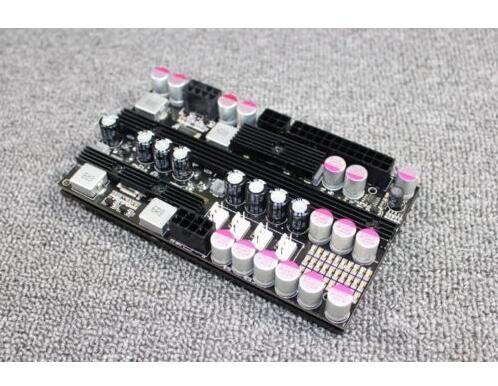

X7-ATX-500
16-20V Input, 500Watts / 550Watts Peak, 24pin, DC-DC ATX Size Power Supply

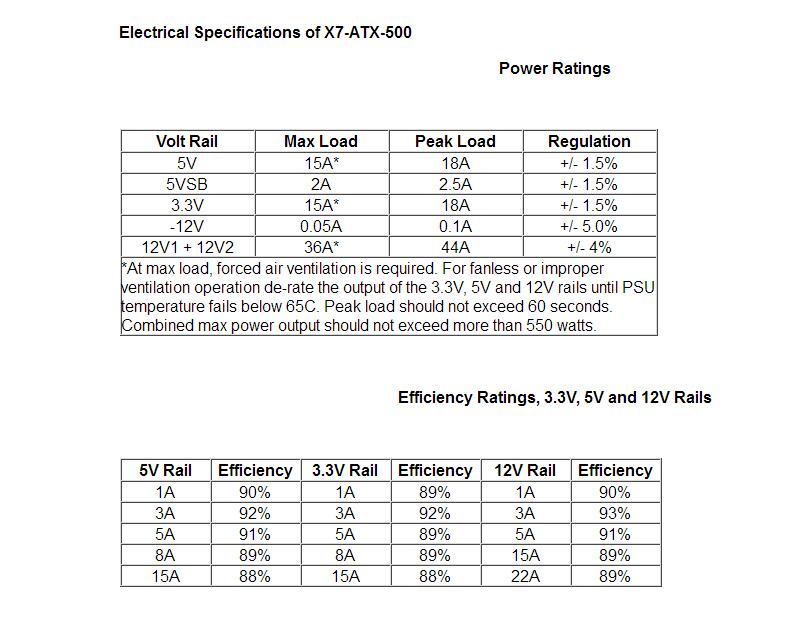

Electrical Specifications of X7-ATX-500
Power Ratings:Efficiency Ratings, 3.3V, 5V and 12V Rails
Input Requirements:Single input source (master) or two input sources (master + slave) can be used.
Master/slave input:
- 16V to 24V, typical 19V regulated, min=1A, max=25A (load dependent).
- Over voltage shutdown will occur at about 24V.
Overload Protection:Over load protection will be effected when either of the loads (+12V, +5V and +3.3V) exceeds 150% Max Load.
Turn-on Delay:
After turning on, at least 20 ms will be needed for the rise of +5VSB output voltage (measured from 10% to 95%) to reach its peak.
Remote ON/OFF Control (PS_ON)
Logic level on PS_ON pin is LOW: Output voltage of PSU is enabled
Logic level on PS_ON pin is HIGH: Output voltage of PSU is disabled
Power Good Indicator (PWR_OK):
Logic level on PWR_OK is HIGH: Power output of PSU is ready
Logic level on PWR_OK is LOW: Power output of PSU is not OK (DC input is smaller than 16V or larger than 20V or other fault conditions)

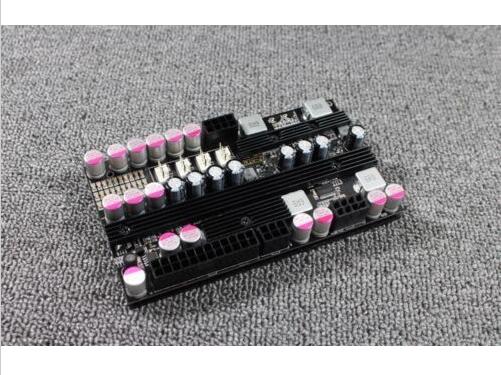

Mechanical Specifications of X7-ATX-500:
Size:150mm (L) * 81mm (W) * 26mm (H), with standard ATX power supply unit mounting holes.
Cables (harness):

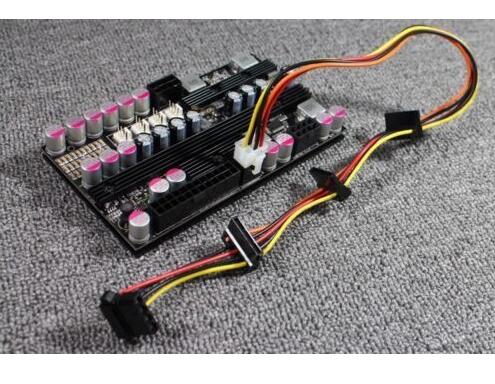

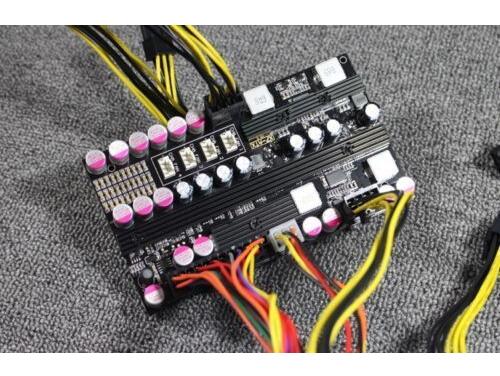

See the cable harness shown in the figures below, which will be shipped together with the PSU.
Package included:
- 1 x 500W 24PIN DC ATX Power Supply PSU with Dual 12V Output Channels
