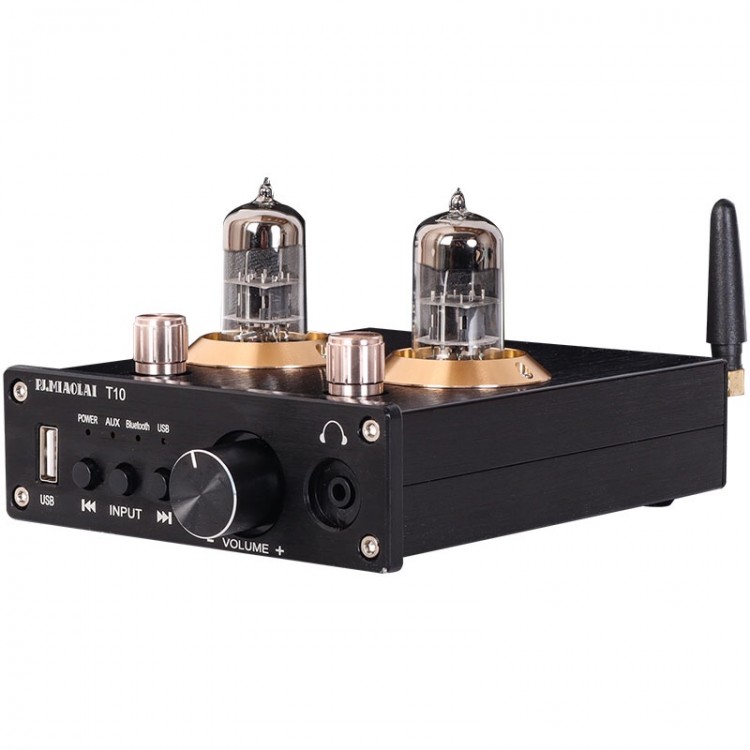

PJ.MIAOLAI T10 Bluetooth 5.0 Tube Amp Hifi Headphone Amplifier 2x50W Digital Power Amp For U Disk
Description:
T10 HIFI bluetooth tube amplifier uses TPA3116 as the core chip. TPA3116 is a class D power amplifier IC and can reach a modulation frequency of 1.2MHZ, high-power output distortion is less than 0.1% (10W). It supports up to 50W+50W dual-channel output. It features low power consumption, high efficiency, low distortion, and strong reducibility. Working voltage is 19V, DC jack specification 5.5*2.5.
T10 audio signal input terminal can be wired to connect to audio sources such as computers, CDs, and lossless music players, and it can also be connected to mobile phones, tablet computers, etc. via Bluetooth, free of wire constraints for easy operation. Audio output terminal can be connected to various desktop passive speakers, bookshelf speakers, etc. (all passive bookshelf boxes below 4Ω 150W and 8Ω 100W can be driven), so that your HIFI sound field feels instantaneously full of guts and makes the sound quality warm and detailed, to enhance the sense of heaviness and presence, and the expressive power of the sound field is very good. T10 has treble and bass knob, enabling free adjustment according to different audio equipment parameters, to achieve the ideal HiFi sound quality!
The T10 power amplifier supports a U disk to play various lossless music, and a variety of audio source inputs can be switched freely. It can be used as a high-end headphone amplifier. Users can plug in earphones and automatically disconnect speaker. According to the use environment, operate at will! The headphone amplifier part adopts classic MAX9722 audio decoder chip, which has a strong sense of depth in the sound field, transparent, bright and durable.
Main Parameters:
1. Audio input terminal: RCA input, U disk input, Bluetooth input
2. Voltage input: 19V 4.7A. Including a power adapter
3. Rated output power: 2*30W at 8Ω, 2*50W at 4Ω
4. Signal-to-noise ratio: >99dB
5. Frequency: 50Hz-60Hz
6. Reference size: 16 x 11.5 x 7cm (LxWxH) (The height is measured by the height of tubes)
Headphone Amplifier Output Parameters:
- Output power: ≥1300mW (32Ω)
- Compatible headphone impedance: 18-600Ω
- Total harmonic distortion: ＞0.005%
- Signal-to-noise ratio: >105DB
- Response frequency: 20-30KHz
Package Included:
- 1 x Set of Bluetooth Amplifier
