PLL-GNSSDO GNSS Disciplined Oscillator GNSS Disciplined Clock 10MHz High Precision Clock For GALILEO

Availability: In stock, usually dispatched in 1 business day

  • Price:$95.16
  • Price in reward points: 952 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $93.26 $91.35 $88.50 $84.69 Contact US
Quantity:

PLL-GNSSDO GNSS Disciplined Oscillator GNSS Disciplined Clock 10MHz High Precision Clock For GALILEO

Specifications:

- Model: PLL-GNSSDO
- Power supply: DC11.7-12.9V/<=5W
- GPS antenna power supply: DC 5V/0.1A
- 1PPS output characteristics: SQUARE WAVE, 3.3Vpp, synchronize UTC time
- 10M output waveform amplitude: sine wave, 11dBm±2dB
- RS232 output: GNSS NMEA signal, 9600BPS
- Accuracy: peak-to-peak value: 0.01Hz at 10MHz. Frequency statistical average: 0.0001Hz at 10M
- Size (W*H*D): 138*25*65mm (including sizes of connectors)
- Accessories: AC110-220-DC12V adapter, 5m GPS antenna

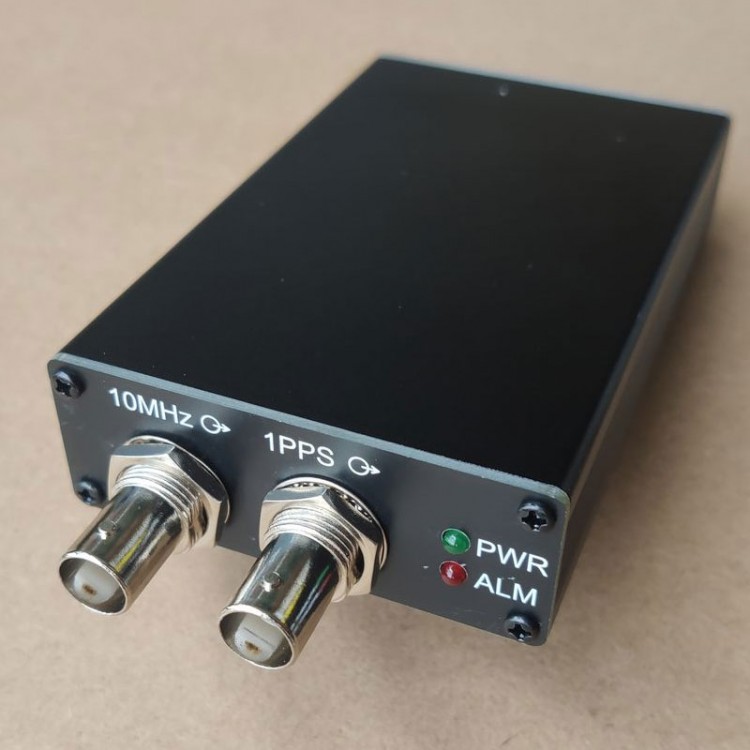

Front Panel's Functions:
- 10MHz: 10M sine wave output
- 1PPS: 1PPS pulse output, rising edge synchronized UTC time
- PWR: Power/GPS lock indication. It is flashing when GPS is not locked. The light is on when GPS locked. No light when no power
- ALM: Warning light. The light is on when the accuracy is greater than 0.1Hz. The light is off when the accuracy is less than or equal to 0.1Hz

Rear Panel's Functions:
- DC IN: 12V power supply input, 5.5-2.1 socket, inner positive and outer negative
- RS232: GPS NMEA signal output, compatible with RS232 signal
- ANT: GPS antenna input, 5V output, internal current limit

Package Included:
- 1 x Set of PLL-GNSSDO
