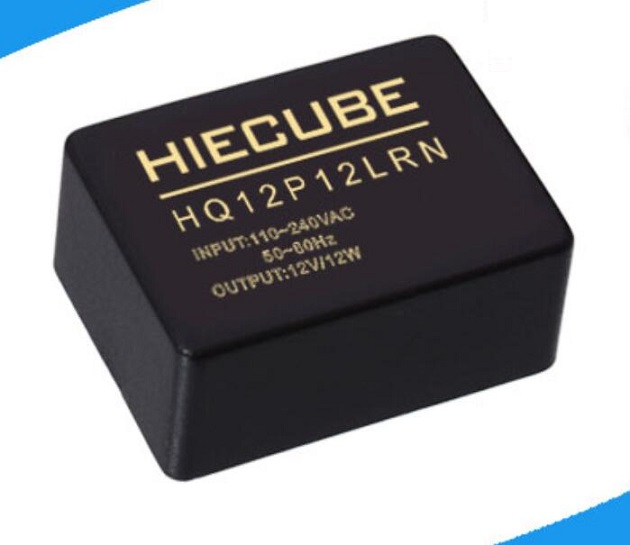

Power Supply Module 12V1A 5V/9V/24V 220V to 12V AC DC 10W/12W HIECUBE HQ12P12LRN

Tags: Power Supply Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.81
  • Price in reward points: 98 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $9.61 $9.42 $9.12 $8.73 Contact US
Quantity:

Power Supply Module 12V1A 5V/9V/24V 220V to 12V AC DC 10W/12W HIECUBE HQ12P12LRN




User manual


Data Download

Note: 5V10W/6V10W/9V12W/12V12W/15V12W/20V12W/24V12W,optional.


Feature:

- AC DC input
- High efficiency high power
- Constant voltage,low wave noise
- Size:27x37x16mm
- Protection:over-load protection,short circuit protection,over heat protection.
- Standby low consumption
- PCB  welding
- Natural cooling,metal shell.

Input electrical specification:

- Voltage range/frequency:85V~265VAC 50/60Hz
- Input current@110V:<250mA
- Input current@220V:<130mA
- Power factor:<0.5
- Start-up time:<0.2S

Output electrical specification:
- DC voltage:12V
- Rated current:1A
- Rated power:12W
- Efficiency:87%
- Voltage accuracy:+-1%
- Load adjusting rate:+-0.8%

Ripple & Noise characteristics:
- 20M bandwidth/ripple noise(peak-peak value):Typ:20mV;Max:25mV
- 200M bandwidth/ripple noise(peak-peak value):Typ:40mV;Max:80mV

General characteristics:

- Switch frequency:65KHz
- Short circuit protection:long time,auto recover
- Over-load protection:>Load110%,can recover
- Over heat protection:module surface temperature 80°C(±4°C),step into over heat protection.
- Pressure test:Input-Output 3000VAC/1min(pressure test belongs to limit damage test,can not do multi-times)
- Working temperature:-30~70°C
- Storage temperature:-40~70°C
- Module weight:30g(±2g)

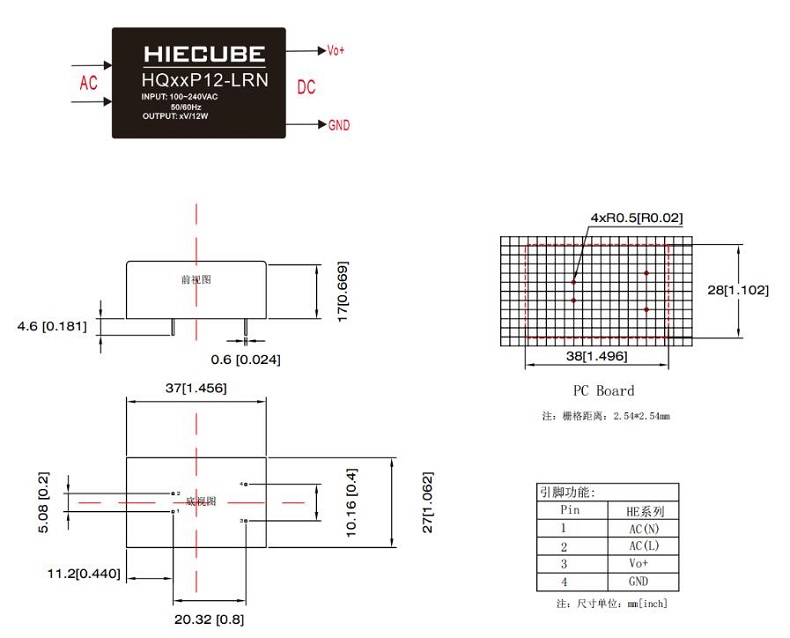

- Shell size:27x37x16mm
- Shell material:aluminum shell
- Cooling mode:natural cooling
- Note:If there is no special requirements.the testing input voltage:220VAC,temperature:25°C.
