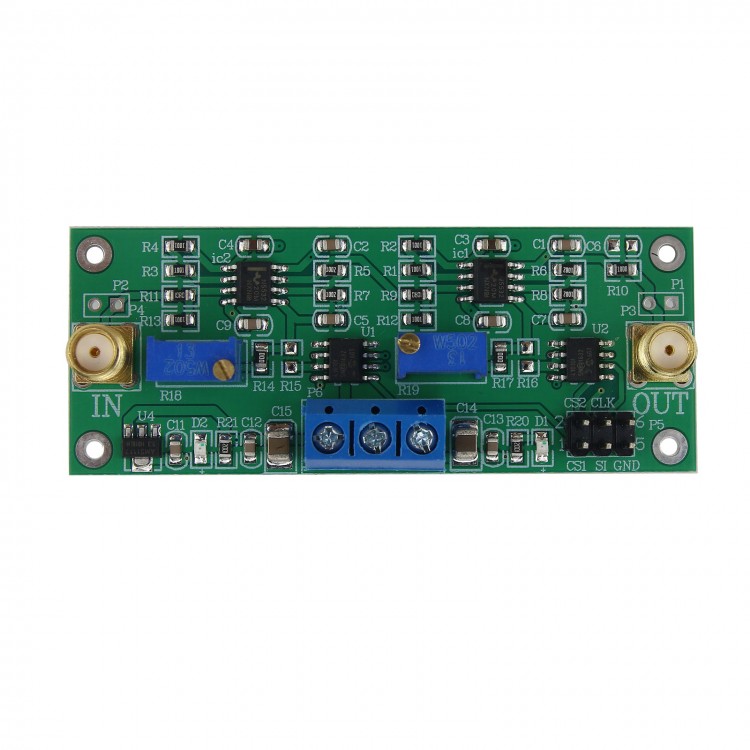

Precision Programmable Phase Shift Amplifier Module Circuit Board 0°~360° Adjustable MCP41010
Description:
This high-precision low-frequency phase shift module adds one-stage phase-shifting amplification on the basis of the original one-stage phase-shifting amplification, which can achieve signal phase shift within 500KHz, and the phase shift range is: default low frequency (1KHz) 0 ° ~ 360 °. The corresponding capacitor needs to be replaced for high frequency phase shift.
Specification:
Name: High Precision Low Frequency Phase Shift Module
Size: 71.1mm*28.2mm
Power supply voltage range: ±5V ~ ±9V
Features:
1. It can achieve 0° ~ 360° signal phase shift (default low frequency 1KHz, if you need high frequency signal phase shift, you need to replace the corresponding capacitor), the frequency range of the phase shift signal needs to be within 500KHz.
2. The signal amplification function can be realized on the board. By default, each stage is amplified by 2 times, and the two stages are amplified by 4 times.

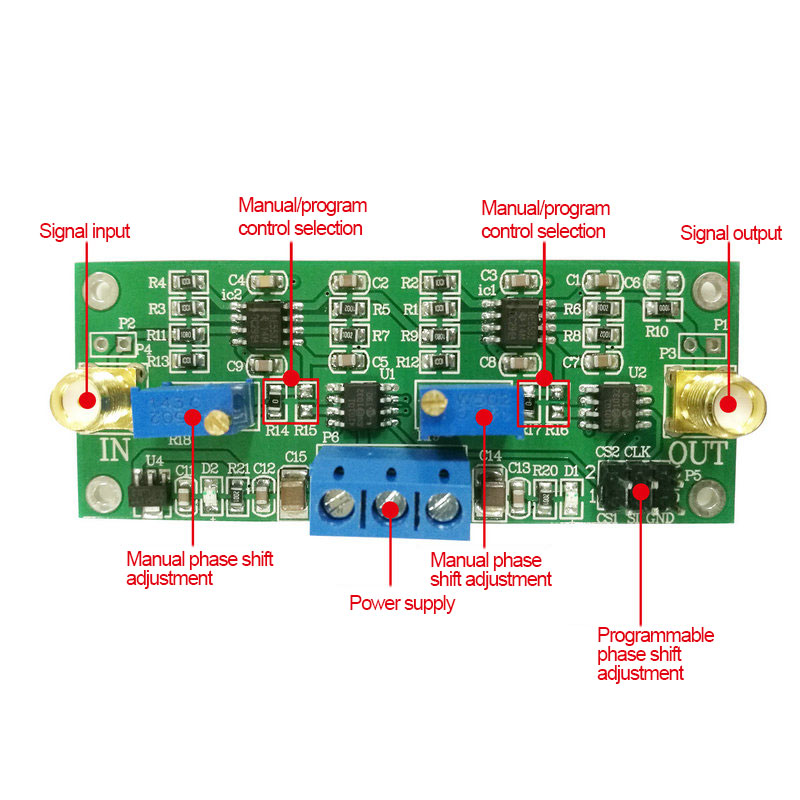

3. Two phase adjustment methods are available: ①manual adjustment of analog potentiometer (default); ②programmable adjustment of digital potentiometer.
Package List:
1 x Amplifier Module
