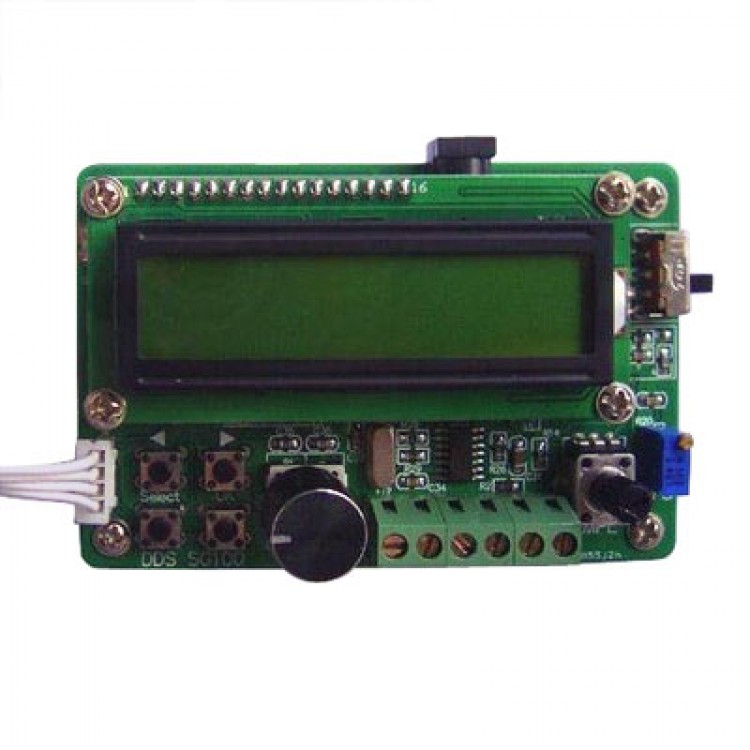

UDB1005S with Frequency Sweep Function 5MHz DDS Signal Source Signal Generator with 60 MHz Frequency Module

UDB1005S with Frequency Sweep Function 5MHz  DDS Signal Source Signal Generator with 60 MHz Frequency Module
Description:
UDB1000 Series DDS Signal Source Signal Generator with 60 MHz Frequency Module- UDB1005S 5MHz With Frequency Function
This is a complete DDS signal source, Adopts DC5V power supply, can output the sine wave, square wave (Duty cycle Can be adjust from1% -99%) , triangle wave and sawtooth wave and various function wavefrom, maximum output can reach up to 10 Vpp, frequency range from 0.01 Hz-2 MHz .Resolution for 10 MHz, with TTL synchronization output and 60 MHz frequency meter.
Specfication:
- MAX Frequency:5MHz
- Wave form:sine wave, square wave,triangle wave and sawtooth wave
- Max output:10Vpp(no-load)
- Otput Resistance: 50Ω±10%
- DC bias:±5V
- Duty cycle:1%-99%
- Display: LCD1602
- Output frequency range:
- sine wave: 0.01Hz-2MHz
- Square-wave: 0.01 Hz - 1MHz (the valid range)
- Triangle wave :0.01 Hz - 1MHz (the valid range)
- Sawtooth wave :0.01 Hz ~ 1MHz (the valid range)
- Resolution :0.01 Hz
- Frequency stability: + 1 x 10-6
- Frequency error :+ 5 x 10-6
- Sine wave distortion degree: < 1% (benchmark frequency 1kHz)
- Triangle wave linearity : 0.01 Hz ~ 100 KHZ 98%; 95%, 100 KHZ ~ 1MHz;
- Square-wave rising and falling time: < 30ns
- TTL output : TTL level: Vp - p. 3 p ,Take 20TTL load load capacity
- The external measurement functions:
- Frequency range: 60MHz 1Hz
- Vpp - signal amplitude: 0.5 20Vpp
- The count range: 0-4294967296
- Storage and append the: has a 10 groups with v function parameters storage
Package included:
-1 x 5MHz UDB1005S DDS Function Signal Generator Source Module Wave
-1 x 5V Power Supply
