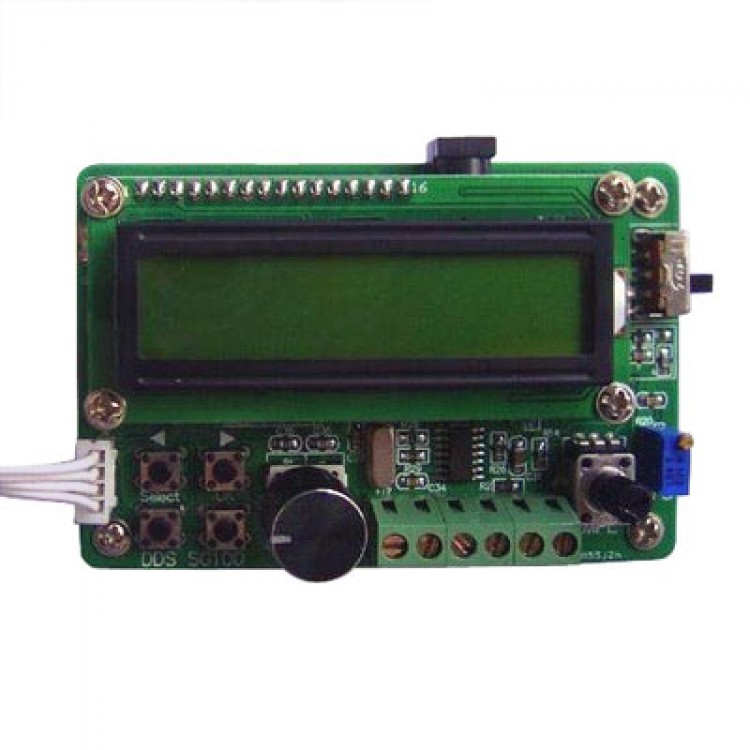

UDB1005 5MHz  DDS Signal Source Signal Generator with 60 MHz Frequency Module
Description:
UDB1000 Series DDS Signal Source Signal Generator with 60 MHz Frequency Module- UDB1005S 3MHz With Frequency Function

This is a complete DDS signal source, Adopts DC5V power supply, can output the sine wave, square wave (Duty cycle Can be adjust from1% -99%) , triangle wave and sawtooth wave and various function wavefrom, maximum output can reach up to 10 Vpp, frequency range from 0.01 Hz-2 MHz .Resolution for 10 MHz, with TTL synchronization output and 60 MHz frequency meter.
Specfication:
- MAX Frequency:5MHz
- Wave form:sine wave, square wave,triangle wave and sawtooth wave
- Max output:10Vpp(no-load)
- Otput Resistance: 50Ω±10%
- DC bias:±5V
- Duty cycle:1%-99%
- Display: LCD1602
- Output frequency range:
- sine wave: 0.01Hz-2MHz
- Square-wave: 0.01 Hz - 1MHz (the valid range)
- Triangle wave :0.01 Hz - 1MHz (the valid range)
- Sawtooth wave :0.01 Hz ~ 1MHz (the valid range)
- Resolution :0.01 Hz
- Frequency stability: + 1 x 10-6
- Frequency error :+ 5 x 10-6
- Sine wave distortion degree: < 1% (benchmark frequency 1kHz)
- Triangle wave linearity : 0.01 Hz ~ 100 KHZ 98%; 95%, 100 KHZ ~ 1MHz;
- Square-wave rising and falling time: < 30ns
- TTL output : TTL level: Vp - p. 3 p ,Take 20TTL load load capacity
- The external measurement functions:
- Frequency range: 60MHz 1Hz
- Vpp - signal amplitude: 0.5 20Vpp
- The count range: 0-4294967296
- Storage and append the: has a 10 groups with v function parameters storage
Package included:
-1 x 5MHz UDB1005DDS Function Signal Generator Source Module Wave
-1 x 5V Power Supply
